Brighten Your Path with the Backup Light Boost Bar
High Output
If you're looking to upgrade your stock reverse lights, the Backup Light Boost Bar is the perfect match for your Morimoto XB LED tail lights. This is a straightforward choice that bolts right on and is truly plug-and-play. Get ready to enjoy maximum brightness when you reverse!
Effortless Installation

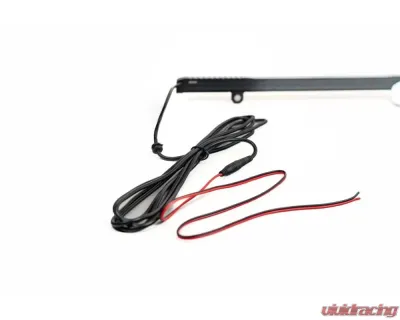

For those of you running the new Morimoto XB tail lights with the Backup Light Boost connection, installation couldn't be simpler! The input connector plugs directly into the reverse light circuit wiring at the back of your tail lights. No Backup Light Boost connection? No worries! The system comes with 1.5 meters of integrated wiring and a high-quality tap kit to easily draw 12V from your factory reverse light harness. Plus, there’s an integrated rubber grommet to keep moisture and dust out if you need a pass-through hole.
Designed for a Perfect Fit

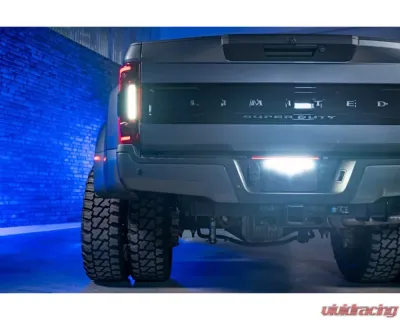

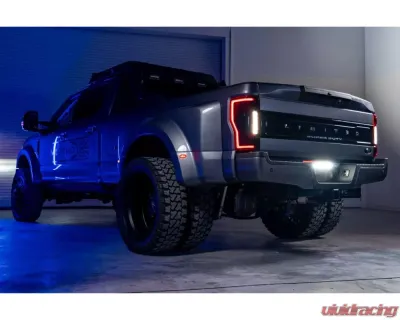

The Backup Light Bar bolts onto the top two license plate mounts of your vehicle. Its die-cast aluminum housing is shaped to fit US-spec license plates snugly, and the mounting points align with universal standards. Finished with a sleek satin black powder coat, it looks just as good as it performs.
Optical Excellence
This light bar isn’t just powerful; it’s also smartly designed. The Morimoto team has optimized the lens to create the perfect beam pattern for reverse lighting. With a blend of optical refinement and raw power, you can expect an effective distribution of light that’s tailored for typical surface mounting angles. The results speak for themselves!
Technical Insights

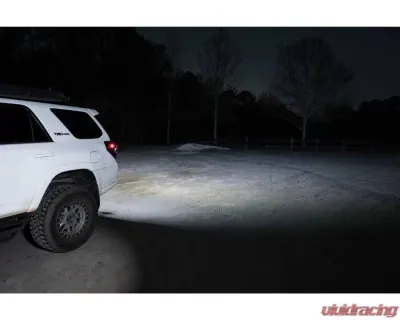

When mounted at a 10-degree angle, you’ll get a vertical range of -20 to +25 degrees. At the standard 0-degree angle, the Morimoto Reverse Light Bar offers a vertical spread of -30 to +15 degrees, easily surpassing the illumination range of standard backup lights. Just a heads up’the output from this product exceeds the legal limit for reverse light applications, so you’ll definitely notice the difference!
Tech Specs
- 54 CREE J Series 2835 LEDs rated at 4500K/80CRI
- 180mA driver produces 29.9W of maximum power
- Pumps out 2700 raw lumens, translating to 1950 real lumens after passing through the optical lens
What’s Included
- 1x Morimoto Backup Light Boost Bar
- 1x Power Tap Kit
Specifications
- Intensity: 2,700lm (Raw), 1,950lm (Effective)
- Power: 29w
- Optic: -30deg to +15deg vertical range
- Light Source: 54X CREE J 4500K (Warm White)
Fitment Notes
- Plug and Play: Compatible with Backup Light Boost enabled Morimoto XB Tail Lights
- Universal Setup: Works with all 9-16V Reverse Light Circuits (with wire taps)
- License Plates: Designed for US-Spec Plate Mounts (excludes 19+ Dodge Ram)
See It in Action!
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Morimoto is an aftermarket company known for redefining automotive lighting solution products. Morimoto was established back in 2008 and filled the gap in the aftermarket for high-quality lighting products. Their goal is to provide their customers with products that give them a memorable experience and keep them safe at night.
Today, Morimoto is one of the leading brands in the automotive lighting industry and has become the go-to brand of many enthusiasts.
Raising The Bar Of The Lighting IndustryThe company aims to elevate the way the aftermarket lights are made. Their products are not your typical off-the-shelf HID lights you can buy anywhere. Theirs are built to provide optimum performance and reliability and are the benchmark for quality automotive lights.
Global NetworkTo accommodate the growing demand, Morimoto has established over three hundred authorized distributors worldwide and works hand-in-hand to develop products that would meet their needs. By listening to their customers, they can produce lights that look good and perform even better.
Purchase Morimoto Products At Vivid RacingIf you are in the market for a high-quality lighting solution for your car, then look no further as Morimoto is the brand for you. They constantly monitor, improve, and adjust their product offerings according to their customers' feedback and changing automotive trends. They have developed a reputation for producing quality lights that deliver what it promises.
To know more about Morimoto and what they can offer, visit Vivid Racing and check out their list of products that fit your specific requirement.
