Off-Road Reinvented

Since 2008, Morimoto has been dedicated to crafting top-notch lighting upgrades for the automotive aftermarket. We pride ourselves on delivering products that offer exceptional performance, reliability, and a fit and style that’s second to none. The 1Banger is a proud continuation of this tradition. In fact, our entire off-road lineup has been a real game changer, encouraging others in the industry to step up their offerings. Our brand new, patent-pending line of 1Banger Off-Road LED Pods has been meticulously designed, engineered, and rigorously tested right here in the USA. Everything about them is truly next level.

Form Meets Function

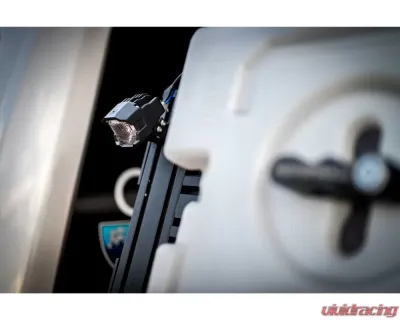

The compact design of the 1Banger makes it an ideal choice for adding extra light in spots where larger pods just won't fit. Each set of Morimoto 1Banger LED pods comes with adjustable pedestal mounts for universal fitting. We also offer a range of application-specific mounting bracket kits for racks and A-pillars, ensuring a straightforward bolt-on installation for many of today’s most popular trucks. Be sure to check out the full lineup to see what’s available for your specific vehicle!

Performance

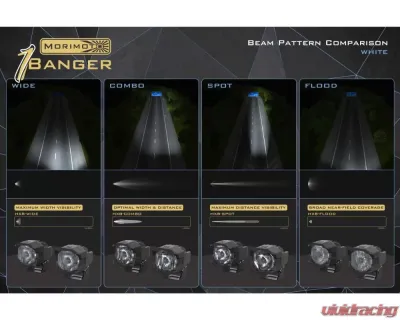

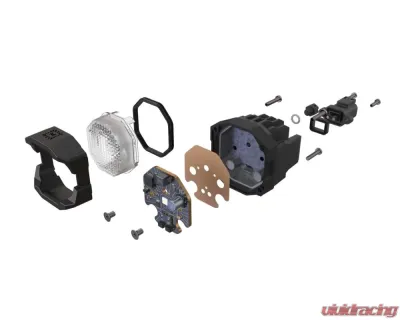

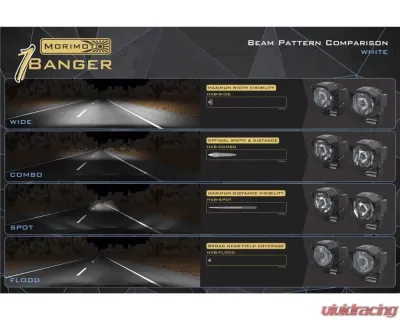

Forget about generic components stuffed inside a fancy casing. Every part of the 1Banger is proprietary. We've utilized LucidShape to optimize performance around the latest, lumen-dense LEDs from Osram. Thermal dynamics have been fine-tuned using SolidWorks. With options for white or yellow output and four distinct beam patterns’Wide/Fog, Spot, Combo, and Flood’there's a 1Banger to match every driving style and performance need.

HXB Spot Beam

Get ready to light up the road ahead like never before! The HXB Spot shines further than any other single-chip LED pod on the market. Equipped with the most powerful Osram LED, paired with our advanced optics, this beam pattern can reach up to 500 meters ahead. No matter how fast you're going, you’ll always have a clear view with the 1Banger HXB Spots.

All Weather

The white-output version is perfect for general visibility, while the yellow-output option excels in rainy, snowy, or foggy conditions. We use Phosphor-converted Yellow LEDs that produce yellow light right at the source, making it the most effective way to cut through particles in the air without sacrificing brightness. Unlike filtering white light through a yellow lens, this method ensures real performance benefits in challenging weather.

Reliability

With great power comes great responsibility, and we’ve put a lot of thought into ensuring our product's reliability. High power generates high heat, which is why the 1Banger features a copper DTP (direct thermal path) PCB that efficiently transfers heat to the radiator, optimized through extensive thermal analysis. The cast aluminum shell is electroplated before powder coating to prevent flaking. Our gasket system, integrated DT power connection, and breather valves are all designed to meet IP69K standards for full weather resistance.

Street Legality

When aimed correctly, the Spot and Combo beam patterns comply with SAE J581 standards for auxiliary high beams. If you’re in the market for a high-performance street-legal LED pod to use as a fog light, the 1Banger wide beam model meets the latest SAE F regulation for on-road use.

Power Up

The Morimoto 1Banger LED Pods have been crafted from the ground up to set a new benchmark in their segment, and the optional wire harness is no exception. If you want the best, look no further. Every component of the harness has been thoughtfully designed without cutting corners. You'll find a triple-sealed proprietary 4-pin relay with a hanger, an over-molded inline fuse holder with a 20A mini fuse, DT06-2S female outputs with dual seals, stainless steel power and ground terminals, and a proprietary M-Spec push button switch with a yellow LED backlight.

What is Included

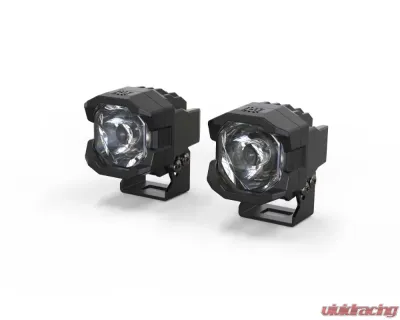

• LED Pods: 2x (One Pair) Morimoto 1Banger HXB Spot (Yellow)

Specifications

• Intensity: 400 Cd (Fully Saturated) (4 lux at 10m)
• Peak Lumenosity (lm)(raw): 1000 lm

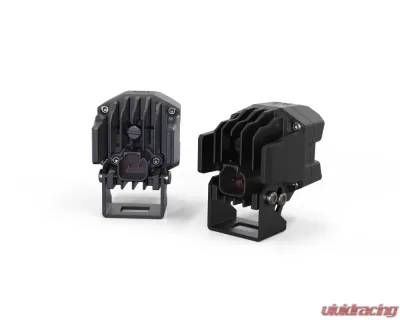

• Input: Integrated Deutsch DT 2-Pin
• Input Voltage: 9-18V DC
• Power: 14.5 W
• Current: 1.07A at 13.5V DC
• Dimensions: 48.8mm W, 50.9mm H, 59.6mm D
• Light Source: 1x Osram HX Boost (5700K)
• IP RATING: IP69K (Dust / High Pressure Water Resistant)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Fitment

• Universal: With Included U Brackets
• Ford Bronco 2021+ (with BAF070)
• Ford F150 2021+ (with BAF067)
• Ford F150 2015-2020 (with BAF038)
• Ford F150 2007-2014 (with BAF037)
• Ford Raptor 2017-2020 (with BAF038)
• Ford Super Duty 2017+ (with BAF039)
• Ford Super Duty 1999-2016 (with BAF040)
• Lexus GX470 2003-2009 (with BAF042)
• Toyota 4Runner 2010+ (with BAF027)
