Off-Road Reinvented

Since 2008, Morimoto has been on a mission to create the best lighting upgrades for the automotive aftermarket. We pride ourselves on delivering products that are not only packed with performance and reliability but also boast top-notch fitment and style. The 1Banger is a proud continuation of that tradition. Our entire off-road lineup has truly shaken things up, encouraging the old players in the category to step up their game. The brand new, patent-pending 1Banger Off-Road LED Pods have been meticulously designed, engineered, and tested right here in the USA, and we’re excited to say that they’re genuinely next level.

Form Meets Function

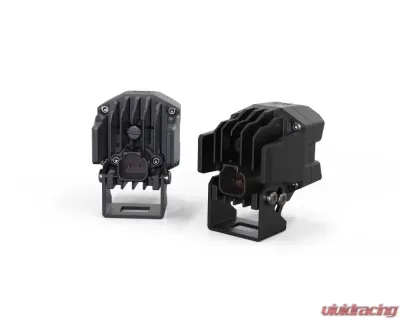

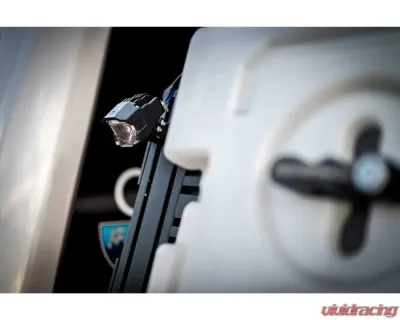

The 1Banger's compact design makes it an ideal choice for adding extra light in tight spaces where full-size pods just won't fit. Each set of Morimoto 1Banger LED pods comes with adjustable pedestal mounts for universal fitment. Plus, we offer a variety of application-specific mounting bracket kits for racks and A-pillars, making installation a breeze for many of today’s most popular trucks. Be sure to check out the full lineup to find the perfect fit for your vehicle!

Performance

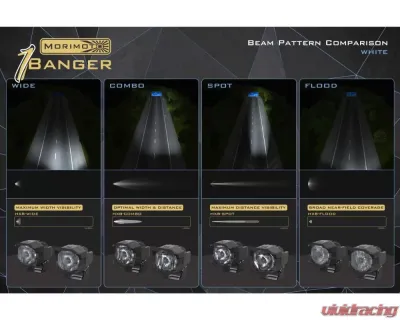

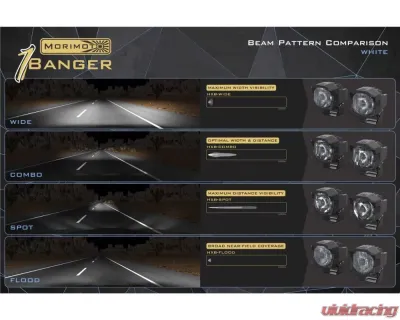

Forget about "off the shelf" components. Every part of the 1Banger is proprietary. We used LucidShape to optimize performance around the latest, lumen-dense LEDs from Osram. Thermal dynamics have been fine-tuned using SolidWorks. With options for white or yellow output and four distinct beam patterns (Wide/Fog, Spot, Combo, and Flood), there’s a 1Banger that fits every performance need and driving style.

HXB Flood Beam

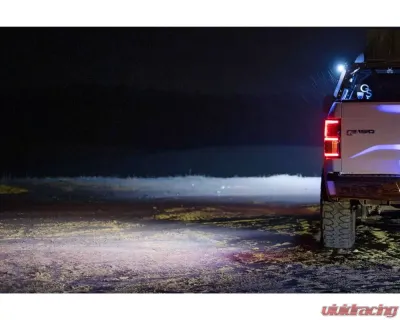

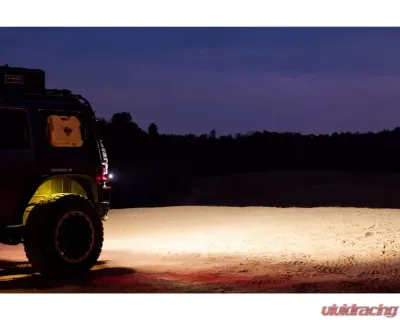

Need plenty of ambient light? The HXB Flood Beam has you covered with wide coverage in every direction, making it perfect for low-speed driving, rock crawling, back-up lights, or even lighting up your campsite. While flood optics don’t project far, they excel at illuminating everything around you.

All Weather

If you’re looking for all-around visibility, the white-output version is your go-to. For those rainy, snowy, or foggy days, the yellow-output version shines through the gloom. We’ve chosen phosphor-converted yellow LEDs that produce yellow light at the source, making them exceptionally effective at cutting through particles in the air’no compromise on performance here!

Reliability

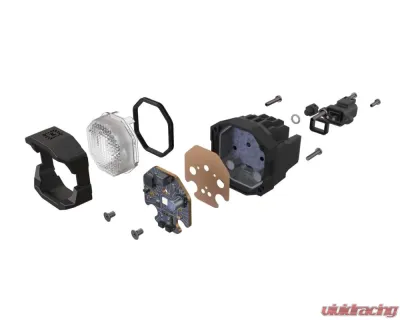

With great power comes great responsibility, and we’ve put in the effort to ensure the 1Banger is built to last. High power means high heat, which is why we’ve designed a copper DTP (direct thermal path) PCB for optimal heat transfer to the radiator. The cast aluminum shell is electroplated before powder coating to prevent flaking. Our gasket system, integrated DT power connection, and breather valves are all crafted to meet IP69K standards for complete weather resistance.

Street Legality

When aimed correctly, the Spot and Combo beam patterns comply with SAE J581 standards for auxiliary high beams. If you’re seeking a high-performance, street-legal LED pod for fog lights, the 1Banger wide beam model meets the latest SAE F regulations for on-road use.

Power Up

The Morimoto 1Banger LED Pods are designed from the ground up to set a new standard in their segment, and that includes the optional wire harness. If you want the best, look no further. Every component of the harness has been carefully considered. It features a triple-sealed proprietary 4-pin relay with a hanger, an over-molded inline fuse holder with a 20A mini fuse, DT06-2S female outputs with dual seals, stainless steel power and ground terminals, and a proprietary M-Spec push button switch with a yellow LED backlight.

What is Included

• LED Pods: 2x (One Pair) Morimoto 1Banger HXB Flood (White)

Specifications

• Intensity: 650 Cd (Fully Saturated) (6.5 lux at 10m)
• Peak Lumenosity (lm)(raw): 1000 lm
• Input: Integrated Deutsch DT 2-Pin
• Input Voltage: 9-18V DC
• Power: 14.5 W
• Current: 1.07A at 13.5V DC
• Dimensions: 48.8mm W, 50.9mm H, 59.6mm D
• Light Source: 1x Osram HX Boost (5700K)
• IP RATING: IP69K (Dust / High Pressure Water Resistant)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Fitment

• Universal: With Included U Brackets
• Ford Bronco 2021+ (with BAF070)
• Ford F150 2021+ (with BAF067)
• Ford F150 2015-2020 (with BAF038)
• Ford F150 2007-2014 (with BAF037)
• Ford Raptor 2017-2020 (with BAF038)
• Ford Super Duty 2017+ (with BAF039)
• Ford Super Duty 1999-2016 (with BAF040)
• Lexus GX470 2003-2009 (with BAF042)
• Toyota 4Runner 2010+ (with BAF027)
