  See more parts for Chevrolet Corvette
Select the year of your Chevrolet Corvette:

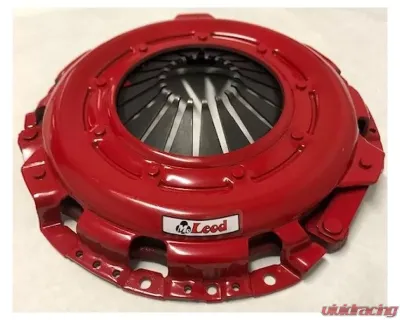

McLeod Racing Pressure Plates Chevrolet | Pontiac 1997-2004 - 360820LS
McLeod Racing makes quality performance pressure plates for a wide variety of vehicles--domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!

P/P;12" Diaph;GM LS 1997-04 LS1/LS6 Flat Syle Flywheel;Dowel Pins

Description:
  • Make: Chevrolet
  • Application: 1997-2004 LS Corvette; 1998-02 Camaro & Firebird
  • Diameter P/P (in): 12"
  • Clamp Load: 2400 Lbs
  • Bolt Pattern Type (See PDF): Type 2
  • Bolt Hole Dia.: 10mm
  • Dowel Pins Required: Yes
  • SFI Approved: Yes
  • Make: GM
  • Application: 1997-2004 Corvette; 1998-2002 Camaro/Firebird.
  • Clamp Load: 2500 Lbs
  • Diameter Pressure Plate: 12"
  • Pressure Plate Pattern: Borg & Beck Even Pattern
  • Bolt Circle: 12-5/8"
  • Centrifugal Assist: No
  • Bolt Holes Dia: 10mm
  • Mounting Hardware Included: No
Fitment:
  • Chevrolet Corvette 50th Anniversary Edition V8.-cc Drivetrain::Pressure Plates 2003
  • Chevrolet Corvette 50th Anniversary Edition Pace Car V8.-cc Drivetrain::Pressure Plates 2003
  • Chevrolet Corvette Base V8.-cc Drivetrain::Pressure Plates 1997-2004
  • Chevrolet Corvette Indianapolis 500 Pace Car V8.-cc Drivetrain::Pressure Plates 1998
  • Chevrolet Corvette Z06 V8.-cc Drivetrain::Pressure Plates 2001-2004
  • Pontiac Firebird Formula V8.-cc Drivetrain::Pressure Plates 1998-2002
  • Pontiac Firebird Trans Am V8.-cc Drivetrain::Pressure Plates 1998-2002

Other Part Numbers:
McLeod Racing #mlr360820LS

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1997-2004
 Chevrolet Corvette
2001-2004
 Chevrolet Corvette Z06
1998-2002
 Pontiac Firebird

McLeod Racing Banner

Who Is Mcleod Racing?

Mcleod Racing is an aftermarket company that was founded in 1971. They are a company that specializes in manufacturing high-performance clutches and drivelines for the automotive industry. They offer performance parts that help create champions in various motorsport disciplines. Today, they are considered the leading global supplier in their market segment.

Wide Range Of Performance Parts

The company offers various products from clutch components, clutch kits, hydraulic bearings, bell housings, flywheels, and other driveline performance products. For 50 years, they have been providing cutting-edge products to the world’s best performance automotive and racing enthusiasts.

In 2008, the Mcleod Racing was acquired by NHRA driver and entrepreneur Paul Lee which help expand the company to new markets and widen its product line. But even with the new management, they still maintained its tradition of creating the most innovative clutches in the market.

Purchase Mcleod Racing Products At Vivid Racing

If you are in the market for high-performance driveline components, then Mcleod Racing is the brand for you. Their parts are designed to function and perform in extreme conditions and even have parts capable of handling 3000 hp. If seasoned racers and tuners trust them, so can you. Whether you are driving a high-powered race car or simply want a better performing car that can bring you from point A to point B, Mcleod Racing got you covered. To know more about what they can offer, visit Vivid Racing and check out their list of products that fit your specific needs.

McLeod Racing LLC, Products are warranted to be free from defects in material and workmanship for the period of ninety (90) days, from the date of purchase. McLeod does not warrant or make any representations concerning its products when not installed and used strictly in accordance with the manufacturer's instructions for such; installation and operation, and in accordance with good installation and maintenance practices of the automotive industry. McLeod will not be held liable for the labor charges and other intangible or consequent losses that might be claimed as a result of the failure of any part, nor shall it be liable for damages or injury to persons or property resulting from the misuse or improper installation of any part subject to this warranty.

No merchandise may be returned for any reason unless prior return merchandise authorization number (RMA#) has been obtained from McLeod.

McLeod reserves the right to examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. McLeod obligation under this warranty shall be limited to repairing, replacing or crediting, at its option, any part found to be defective. All products returned to McLeod for warranty inspection must be prepaid by the customer under this warranty. There are no other warranties, either expressed or implied, which extend beyond those set forth in the preceding paragraphs.
