LSK Suspension LSK1105 Bolt-On Kit for 2007-2021 Toyota Tundra

If you’re a proud owner of a 2007-2021 Toyota Tundra, whether it’s a 2WD or 4WD model, the LSK1105 Bolt-On Kit from LSK Suspension is designed to enhance your truck's performance both on and off the road. This comprehensive kit is tailored to improve ride quality and handling, making it an ideal choice for those who occasionally venture off the beaten path but primarily use their Tundra for street driving.

Overview

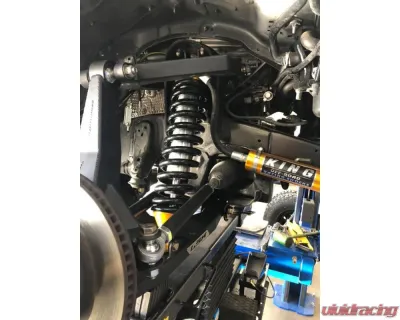

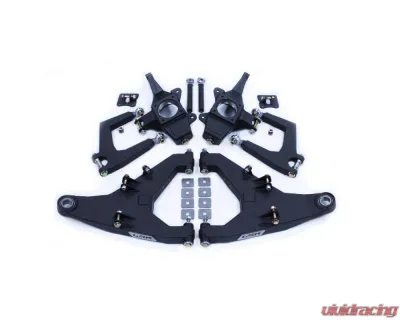

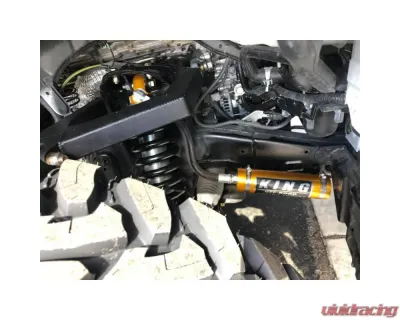

The LSK1105 kit features a robust collection of components, including:

• Custom Upper Control Arms
• Lower Control Arms
• Fully Fabricated Spindles
• Extended Heimed Tie Rods
• Fabricated Coil Bucket Coilover Adapters
• Upper Control Arm Gussets
• Weld-On Cam Lockout Plates
• Grade 8 Hardware
• Extended Brake Lines (31" minimum end-to-end)
• RCV Performance Extended Axle Shafts (OEM inner and outer CV assemblies reused)
• Pre-bent Bypass Hoops with all necessary hardware

Installation Requirements

While this kit is designed to be a bolt-on solution, some welding is required. Specifically, the lower control arms do not reuse factory bolts, so new cam lockout plates must be welded onto the frame. This ensures a secure and permanent fit, with all adjustments made through the upper control arm heims. Here’s what else you’ll need to consider:

• 8" 2.5" Coilovers (not included)
• Possible extension of factory ABS sensor lines (depends on wire routing)
• Bumpstops configured to contact the lower control arm
• Limit straps (8" recommended with adjustable clevis kit)
• 4WD trucks must use an extended axle setup or keep the factory outer CV assembly if deleting the 4x4 system

Technical Specifications

To help you achieve the perfect fitment and stance, here are the key specifications:

• Recommended Tire Size: 37"
• Recommended Wheel: 17 x 9" with 4.5" backspacing (0mm offset)

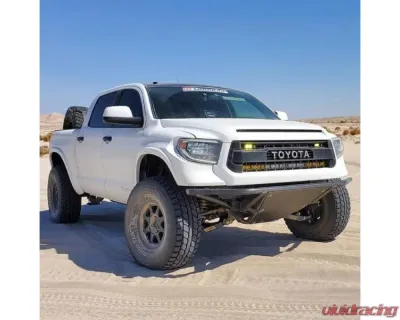

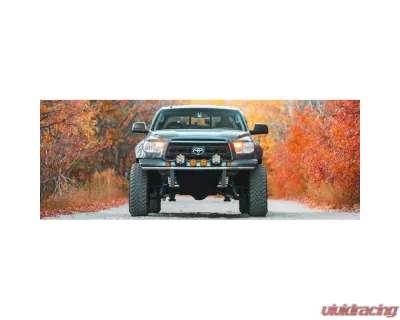

• Track Width: Extended 4.5" per side
• Wheel Base: Extended 1.25" forward
• Wheel Travel: 14.5"

Fitment

This kit is specifically designed for:

• Toyota Tundra (2007-2021)

Important Notes

• Permanent frame modification is required, as cam lockout plates are welded into the factory cam tab location.

Customer Feedback

Many Tundra owners have shared their experiences after installing the LSK1105 kit. For instance, one 2020 Tundra owner noted, “Installed this kit along with 37s and the stance is perfect! No rubbing at full lock, and the ride quality is a huge improvement both on and off-road.” Another user mentioned, “Welding was straightforward, and the fitment is spot on. My Tundra feels more stable and responsive now.”

Upgrade your Toyota Tundra with the LSK1105 Bolt-On Kit from LSK Suspension and experience the difference in ride quality and handling. Whether you're hitting the trails or cruising the streets, this kit has you covered!
