Overview

If you're looking to enhance the performance of your 2005+ Toyota Tacoma, whether it's a 2WD or 4WD, the LSK1108 Bolt-On Kit from LSK Suspension is the upgrade you need. This comprehensive kit is designed to provide a significant improvement in both on-road comfort and off-road capability, making it ideal for those who use their Tacoma as an occasional off-road rig while primarily navigating city streets.

What’s Included?

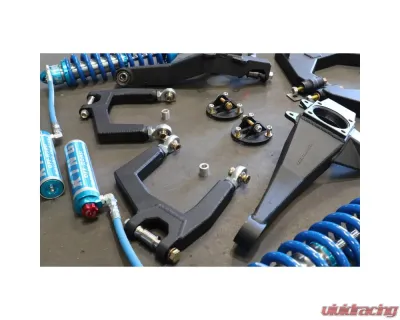

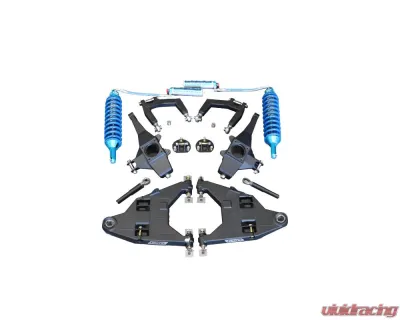

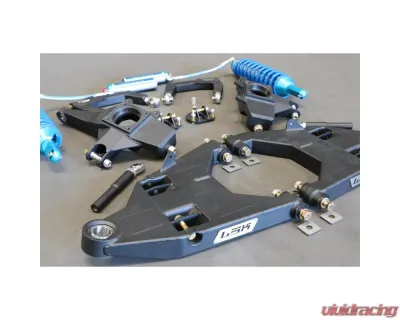

The LSK1108 kit comes packed with everything you need to transform your Tacoma's suspension:

• Custom Upper Control Arms
• Custom Lower Control Arms
• Fully Fabricated Spindles
• Extended Tie Rods with Outer Heims
• Fabricated Coil Bucket Coilover Adapters
• UCA Bolt Stainless Spacer
• Weld-On Cam Lockout Plates
• Grade 8 Hardware
• Extended Brake Lines (Minimum 31" Line End to End)
• Bypass Hoops for enhanced clearance
• Extended Axle Shafts (compatible with OEM Toyota components)

Installation Requirements

While the LSK1108 is designed as a bolt-on system, there are a few important requirements to keep in mind:

• 2.5" Coilovers (not included in the kit)
• Limit Straps (we recommend 8" or 10" Eye to Eye with an Adjustable Clevis, not included)
• Welding is required for the Cam Lockout Plates to be secured to the frame
• Possible extension of the factory ABS sensor line, depending on routing
• Bumpstops should be configured to bump off the Lower Control Arm

Specifications

To ensure optimal performance and fitment, here are the key specifications:

• Recommended Tire Size: 35"
• Recommended Wheel: 17 x 9" with 4.5" Backspacing (0mm Offset)
• Track Width: Extended 4.5" per side
• Wheel Base: Extended 1.25" forward
• Wheel Travel: 14.5"

Fitment

This kit is specifically designed for:

• Toyota Tacoma 2005 and newer

Important Notes

Keep in mind that the installation of this kit involves permanent frame modifications, as the Cam Lockout Plates must be welded into the factory cam tab location. This ensures a secure and stable fit for your new suspension components.

Customer Feedback

Many Tacoma owners have shared their experiences with the LSK1108. One 2021 Tacoma owner noted, "Installed these control arms and they pushed my wheels out just enough for a more aggressive stance without any rubbing, even on 33s!" Another customer mentioned, "The ride quality has improved immensely, both on and off-road. It feels like a completely different truck!"

Upgrade your 2005+ Toyota Tacoma with the LSK1108 Bolt-On Kit and experience the difference in ride quality and performance. Whether you're hitting the trails or cruising the streets, this kit is designed to meet your needs.
