LSK1119 Suspension Kit Overview

If you own a 2019+ Chevrolet Silverado 1500 and are looking to enhance your ride quality both on and off the road, the LSK1119 Suspension Kit from LSK Suspension is the perfect upgrade. This comprehensive bolt-on system is designed to provide a substantial improvement in handling and comfort, whether you're navigating city streets or tackling rugged terrain.

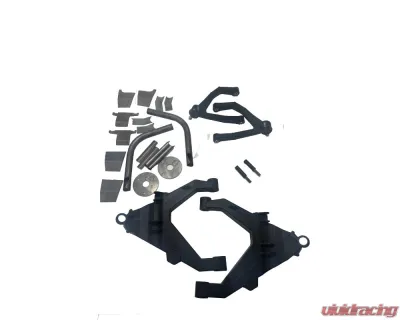

What’s Included in the Kit?

• Custom Upper Control Arms
• Custom Lower Control Arms
• Fully Fabricated Spindles
• Heimed Tie Rods with Clevis Adapters
• Fabricated Coilover Adapters
• Cam Lockout Plates
• Grade 8 Hardware

Installation Requirements

While the LSK1119 kit is designed for a straightforward installation, there are a few additional components you’ll need:

• 10" 2.5" Piggyback Coilovers: These are not included in the kit, so be sure to source them separately.
• No Welding Required: This is a bolt-on system; however, if you plan to add bypass shocks, some welding will be necessary for the bypass hoops.
• Extended Brake Lines: A minimum length of 33" is recommended.
• ABS Sensor Line Extension: Depending on your wire routing, you may need to extend the factory ABS sensor line.
• Limit Straps: We recommend using 8" limit straps with an adjustable clevis kit, available in our Builders Components section.

Technical Specifications

• Wheel Travel: Averages 17" of usable wheel travel, depending on your limit strap, bump stop, and shock configuration.
• Wheel Base: Extended 1.25" forward for improved stability.
• Track Width: Increased by 4.5" on each side to enhance cornering performance.
• Recommended Tire Size: 37" for optimal fitment.
• Recommended Wheel Size: 17 x 9" with 4.5" backspacing (0mm offset).

Fitment

• Designed specifically for Chevrolet Silverado 1500 (2019+).

Important Notes

• Coilovers and bypass shocks are custom ordered and may not always be in stock. Contact our sales team for current lead times.
• All components feature a durable black powdercoat finish.
• Upper Control Arms utilize 7/8in-14 rod ends, available for replacement in our online store.
• Spindles require a 1.00in FK Uniball (PN: WSSX16T), which can also be purchased through our store.
• Lower Control Arms use a 1.50in FK Uniball (PN: COMH24T) and LSK 1.75in Delrin bushings, with replacements available.
• Note that cam lockout plates will require permanent frame modification, being welded into the factory cam tab location.

Upgrade your 2019+ Chevrolet Silverado 1500 with the LSK1119 Suspension Kit and experience the difference in performance and ride quality. Whether you're cruising on the highway or hitting the trails, this kit is engineered to meet your needs.
