See more parts for Toyota Corolla
Select the year of your Toyota Corolla:
Product thumb

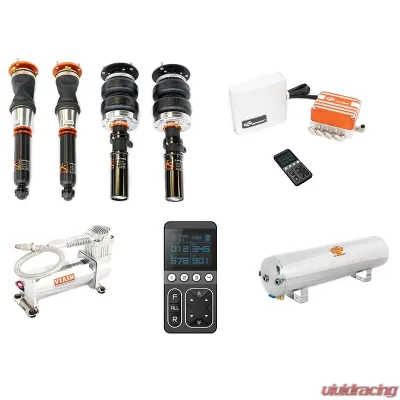

Ksport AirTech Pro Plus Air Suspension Full System Toyota Corolla 2019-2021
$4574.49
Ksports Pro Plus system has all the features of the Deluxe kit but adds four-wheel independent ride height adjustment for even more control over your vehicle. No switches or gauges are needed with this kit and no complex wiring is involved. Instead the kit is operated off a single OLED color screen remote control. The remote displays air tank pressure and air bag pressure at all four corners. Four user presets can be saved so you can have quick access to changing your ride height on the fly. The system will also auto level during driving (based on air pressure only). Height sensors can be added later if you wish to add them. Memory for engine start will automatically set the ride height you choose. The remote can be charged via standard mini USB and we even include a convenient car charger. Ksports seamless installation control box is standard along with a Viair 444c compressor (a 2nd compressor can be added for an additional cost). A polished lightweight 5-gallon air tank is another welcomed upgrade from Ksports Basic and Deluxe kits. A standard 4 button remote control is also included as a backup in case the battery dies on the OLED remote. Professional installation is recommended. All Ksport Airtech Systems feature high quality air bags, proven to handle the stress and abuse of daily driving as well as drift circuit use. Take advantage of the near infinite adjustability thanks to the adjustable lower mount, 36 levels of damping adjustment, and the unmatched height adjustability (0-120/200mm depending on vehicle) of air suspension. Ksports air suspension kits are designed for easy bolt-on installation. No modifications to OEM shock absorbers, or OEM top mounts is required. Vehicle may need to be modified for air-line routing. All Ksport Airtech Systems use a VIAIR compressor and can be raised from the lowest setting to max height in as little as 2 seconds. All hoses, fittings, wiring, and installation manuals are included.

The Ksport pro plus air suspension system features air struts, an auto-leveling management system, an oled digital 4-button remote with 4 presets, and a viair 444c compressor. It's one of the most popular air systems available on the market.

Features:
  • High Performance Ksport Shock Absorbers
  • Airtech Systems feature high quality air bags, proven to handle the stress and abuse of daily driving as well as light track use
  • Height adjustability ranges from (0-120/200mm depending on vehicle)
  • OLED Digital Remote Control
  • Digital screen that displays tank and spring pressures
  • 4x memory ride high presets
  • Automatic Load leveling based on bag pressures
  • Key on programmable ride height memory
  • Blue Tooth Phone receiver available for IOS at an additional small fee
  • Pro Plus kits offer automatic load leveling that operates solely on the monitoring and adjustment of air spring pressure
  • No modifications to OEM shock absorbers, or OEM top mounts is required
  • 36 levels of damping which allow you the ability to perfectly dial in your Air Ride System
  • Adjustable lower mounts allow for maximum suspension travel

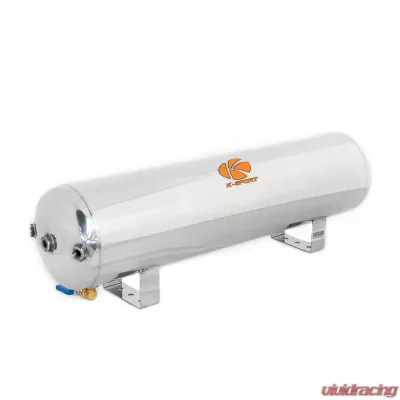

  • 5-gallon lightweight polished air tank w/carpeted mounting board

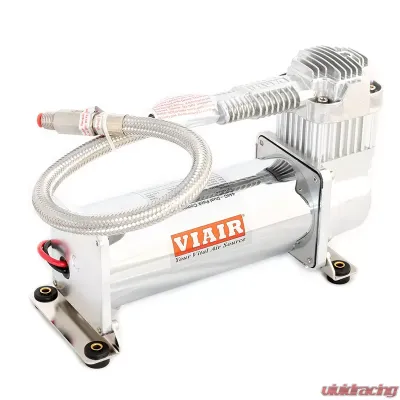

  • Ksport chose to use the upgraded Viair 444c compressor for their reliability and performance.
  • All components are included to have a properly functioning Air Ride System

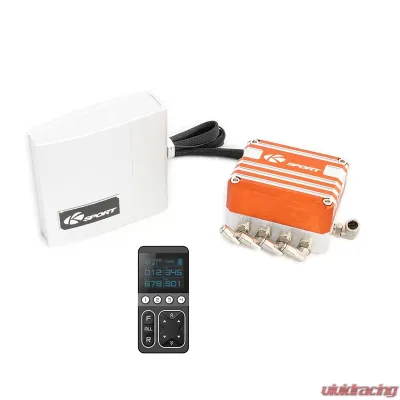

  • Ksport control unit offers as simple an installation as possible. Simply run your air lines to the box and connect 4 wires to Ksport quick disconnect plug, wire up the compressors and relay and you’re done.
  • 12 Month Limited Warranty
Additional Information:
  • Top Mount Front: Pillowball Mount
  • Top Mount Rear: Reuses OEM Top Mount
Fitment:
  • Toyota Corolla E210 2019-2021
Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2019-2021
Toyota Corolla

Koyo Banner

About KSport USA

KSport USA was founded in 2003 and started out with just two employees and a building size of less than 2,000 square feet. After several expansions, the company acquired a 25,000 square-foot facility in Gilbert, Arizona in 2009. Now, KSport USA’s manufacturing facility is over 320,000 square-feet and utilizes state-of-the-art machining equipment. The company is TUV/ISO 9001:2008 approved, which shows that its emphasis and number one priority is developing quality products.

Since its inception, KSport USA has solidified a reputation for manufacturing quality high-performance suspension systems and brake kits that boast sophisticated designs and cutting-edge functionality. KSport is a world-renowned brand and respected by all classes of race car drivers around the globe.

Who is KSport USA?

KSport USA is a suspension company dedicated to bringing affordable, durable, and high-performance suspension, brakes, and air ride systems to the consumer public year after year. Built on a foundation of motorsports, KSport’s products have all been tested and proven both on and off the track for more than 10 years in countries all around the world. KSport USA consistently seeks out ways to expand its wide range of vehicle applications as well as the commitment to customer satisfaction.

Each staff member of KSport is a passionate petrolhead and loves what they do on a daily basis. Whether it is road racing, drifting, or just showing off a modified daily driver, all KSport USA employees love their job and are always inventing new ways to improve the products. KSport takes pride in having an excellent presence in several racing organizations as well as an immense following. KSport USA never forgets where it came from and is determined to continue growing, evolving, and taking real-world feedback from the consumer to reach newfound success at even higher levels.

KSport USA Goes Above and Beyond

KSport USA is proud to follow the highest standard of production, which is apparent in the high-quality products it offers. Through aggressive Research and Development, the company is proud to now offer over 200 coilover applications, and many new products that will be introduced in the future. Whether you are building an all-out drift machine or simply upgrading the ride of your daily driver, you can’t go wrong with KSport coilovers and big brake kits. KSport’s air suspension systems are also a great alternative and deliver increased ride height with optimal control.

Each individual part manufactured by KSport USA is CNC machined to ensure the highest quality possible. After the CNC process, each part is intricately measured to ensure it falls within spec before being hand-assembled right here in the USA. Once the fabrication process is complete, each batch of products is thoroughly tested before shipment; these tests include leak tests, balancing, and corrosive environmental simulation.

KSport's Most Popular Products

Coilovers are the most popular products offered by KSport. They're coilovers offer affordable prices and a lot of adjustabilities compared to most coilovers in that price range. With KSport coilovers, you'll spring preload adjustment, damper adjustment, and ride height adjustment. This allows you to perfectly dial in your suspension settings for your tire compound and driving style.

Air suspension is also a very popular product from KSport. Their air suspension kits are more affordable than of the offerings on the market, while still offering similar quality and versatility. Their air suspension kits are great for anyone who wants the flexibility of air suspension while still improving performance.

Find KSport USA at Vivid Racing

Vivid Racing offers a wide array of KSport USA products ranging from its popular big brake kits and coilovers to handling arms and springs. If you cannot find what you are looking for above or have questions regarding fitment, please call our parts specialists at (480) 966-3040.

Ksport Store | Ksport Air Suspension | Ksport Coilovers | Ksport Springs | Ksport Big Brake Kits

Ksport Drilled Rotors | Ksport Slotted Rotors | Ksport Hand Brakes | Ksport Handling Arms

Ksport Top Mounts
To begin a warranty claim or send your product in for service, please begin by downloading and filling out our warranty/service form. Once you have completed the form, please either fax it to 480-829-8103 or Via our contact form here. A Ksport USA staff member will contact you within 1-2 business days regarding your warranty or service request.

General Warranty Information
All products sold are subject to the following warranty:
Autoline Industries warrants the shock absorbers and steering stabilizers to the original retail consumer against defects and workmanship for 12 months from the original purchase date when used on light truck and car applications under normal operating conditions. This warranty does not apply to shocks and steering stabilizers that have been improperly installed.
Our warranty does not cover shock absorbers that are to be used in racing applications. Exterior finish on all K-Sport products is not considered a valid warrantee; consumers are responsible for the maintenance of paint and or chrome or plated finish.
Shock Boots are also excluded from any type of warrantee. ALL SHOCK BOOTS should be removed prior to returning to the Distributor from which the product was originally purchased. Rusted shafts will also be denied as a warrantee claim; consumers are responsible for the upkeep and maintenance of the chrome rods. The consumer will be responsible for the removal and freight costs both to and from the Distributor from which the product was originally purchased. Proof of purchase is mandatory in order to receive warrantee replacement; original invoice from the Distributor from which the product was purchased must accompany the product in question for warrantee.
Autoline Industries or Autoline Industries distributor has the right to refuse a warrantee claim if procedures are not met by the original consumer. All returns must have an R.M.A. approval from Autoline Industries prior to shipping direct to the Autoline Industries facility. Exclusions from this warranty are sales outside of the United States, the finish, dents, rust, or any condition caused by abnormal use or neglect.
The loss of use of product, loss of time, inconvenience, commercial loss or damages is not covered. Autoline Industries reserves the right to change, modify, or discontinue the design of any products previously manufactured without assuming any obligation to the consumer. Any consumer which qualifies for a replacement of said discontinued product will only be allowed to receive new product which replaces the discontinued. We are not responsible for a pair of any product, if a single product has an issue.
Autoline Industries reserves the right to refuse any and all warrantee claims from any Distributor which has not purchased the original K-Sport product directly from Autoline Industries. Autoline Industries also reserves the right to refuse any Return Goods Authorization of said merchandise in which it is believed to be fraudulent or distressed merchandise not purchased originally from Autoline Industries.
This warrantee does not apply to any K-Sport product which has been modified, customized, painted, dented, rusted or improperly installed.
