Revitalize Your Engine's Breathing

If you're looking to give your engine a little boost, this kit is just what you need. With a mandrel-bent 4.5-inch intake tube, it ensures your engine gets the massive airflow it craves. Plus, HSP's signature heat shield box keeps the unwanted hot air at bay, allowing your engine to truly breathe easy. Remember, for every 1-degree rise in intake air temperature, you could lose up to 3 horsepower!

Turbo Mouthpiece for Enhanced Performance

This kit includes HSP's high-flow turbo mouthpiece, which allows you to reroute your factory PCV system and ditch that factory resonator box. This change helps prevent engine oil from gumming up your turbo and intake system (PCV re-route sold separately, see 003-1-HSP). You’ll also find our 3-inch mandrel-bent hot side and cold side tubes, along with a user-friendly two-piece Y-bridge. With race-proven 5-layer silicone boots, you can count on a fit that’s solid and dependable.

Say Goodbye to Common Issues

The factory hot side intercooler tube measures only 2.25 inches in diameter and features a 90-degree boot at the intercooler, which can be a weak point. This setup may lead to rubbing against the power steering line, potentially causing a boost leak. HSP has tackled this issue by routing the hot side tube directly into the intercooler, resulting in improved airflow, lower temperatures, and extra clearance in tight spots.

Easy Installation with Durable Components

Our two-piece Y-bridge design makes installation a breeze and guarantees a leak-free seal, giving you peace of mind on the road. Plus, we’ve included a robust 2-inch passenger side up pipe made from .120-inch tubing, featuring the best bellow available. The factory up pipe often fails at the riser due to excessive heat and pressure, but our design is built to last.

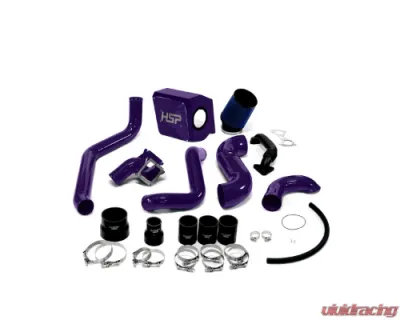

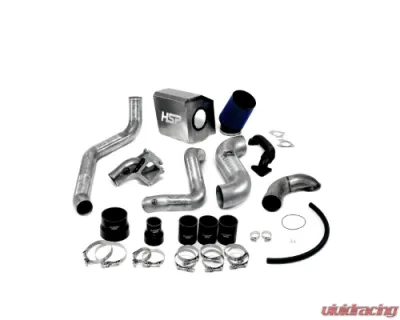

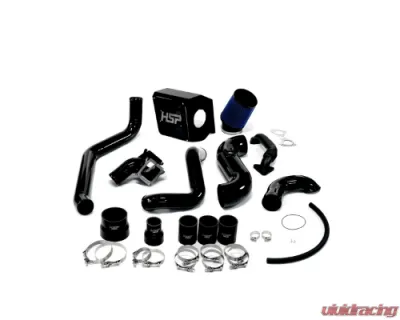

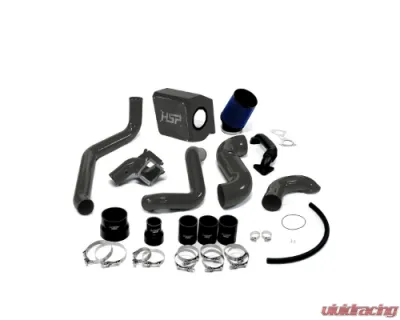

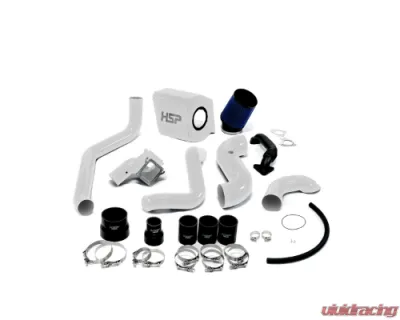

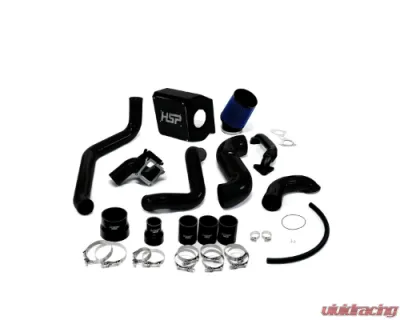

Included Components

• 7x 3 inch T-bolt Clamps
• 1x 2.25 inch - 3 inch Reducer Boot
• 1x 2.25 inch T-Bolt Clamp
• 3x 3 inch x 4 inch Straight Boots
• 1x 1/8 inch NPT Brass Plug
• 1x Bridge Neck O-Ring
• 2x 5/8 inch Worm Gear Clamps
• 2x Bridge Neck Studs
• 2x Bridge Neck 12-Point Nuts
• 2x M4x.7x10mm Bolts
• 3x 10-32 x 3/8 inch Button Head Screws
• 4x 1/8 inch Aluminum Rivets
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo Inlet O-Ring
• 1x Up-Pipe Gasket (Turbo Side)
• 1x Up-Pipe Gasket (Manifold Side)
• 16 inch of Trim Seal
• 2 Feet of 5/8 inch Heater Hose

Compatibility

This kit is compatible with:

• LBZ: 06-07 VIN Code 2 or D

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
