Your All-in-One Performance Kit

Are you on the hunt for a performance kit that truly has it all? Look no further! Our kit features a mandrel-bent 4-inch intake tube designed to boost airflow significantly. Plus, with HSP's signature heat shield box, you can say goodbye to unwanted hot air entering your cold air intake. Did you know that for every 1-degree increase in intake air temperature, you could lose 3 horsepower? That’s why we’ve crafted this kit to keep your engine running cool and efficient.

Top-Notch Turbo Mouthpiece

This kit also comes with HSP's high-flow turbo mouthpiece, which outperforms any ported mouthpiece available. And let’s not forget the hot side and cold side intercooler piping that come included!

Say Goodbye to Restrictive Tubing

If you own a 2001-2004 Duramax truck, you know how restrictive and prone to failure the factory intercooler tubing can be. With a mere 2.25 inches in diameter and a 90-degree boot at the intercooler, it’s a recipe for trouble. Not to mention, the hot side intercooler tube can rub against the power steering line, leading to potential boost leaks.

Our Solution for Better Performance

We’ve tackled this issue head-on by routing the hot side tube directly into the intercooler using race-proven 5-layer silicone boots. This design results in lower temperatures, improved airflow, and extra clearance in those tight spots. To help your exhaust gases escape more easily, we’ve included factory replacement 2-inch up pipes.

Durability You Can Trust

Our up pipes are constructed with .120-inch wall tubing and the toughest bellows on the market, ensuring they’ll last as long as your truck does. Plus, for added style, we’ve added a forward-facing thermostat housing with a coolant return to keep your IHI turbo running cool. Is your factory coolant tank looking a bit worn? We’ve included a factory replacement coolant tank made of all-aluminum, complete with a low coolant sensor to keep your engine bay looking sharp.

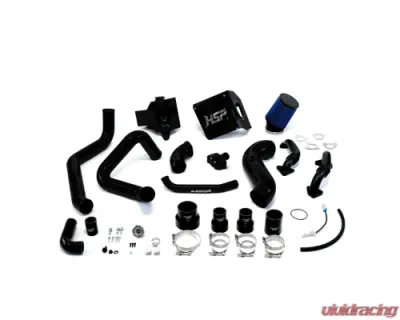

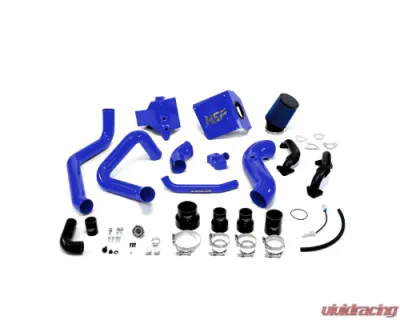

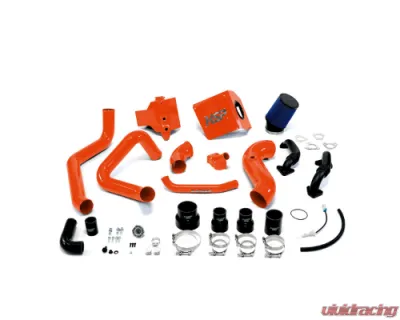

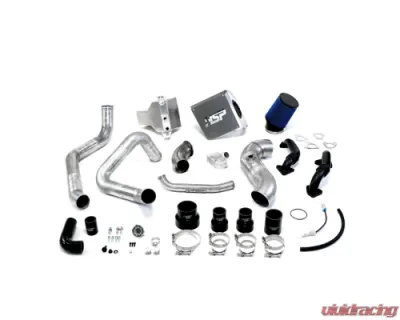

Included Components

• 1x 3 inch x 4 inch Straight Boot
• 4x 3 inch T-bolt Clamps
• 2x 2.25 inch - 3 inch Reducer Boots
• 2x 2.25 inch T-bolt Clamps
• 2x M4 x .7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screw
• 4x 1/8 inch Aluminum Rivet
• 1x 3.5 inch - 4.5 inch Reducer Boot
• 1x 3.5 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 3x M6 x 1.0x20mm Button Head Screw
• 1x LB7 Turbo Inlet O-Ring
• 1x Radiator Cap
• 5x 1/2 inch Worm Gear Clamps
• 1x 1 inch Worm Gear Clamp
• 1x 1/2 inch NPT Float Switch
• 1x Low Coolant Sensor
• 1x Thermostat Housing O-Ring
• 3x M6 x 1.0x35mm Flange Bolt
• 6x M6 Fender Washers
• 3x M6 Nylon Lock Nut
• 4x M8x1.25-25mm Socket Cap Bolt
• 4x M6 x 1.0-18mm Socket Cap Bolt
• 1x M14 x 1.5 to 3/8 inch Hose Barb
• 1x M14 x 1.5 Metric Port Plug
• 1x Metric Bond Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 Degree Boot
• 4x 1 3/4 inch Worm Gear Clamps
• 2x Up-pipe Gaskets (Turbo Side)
• 2x Up-Pipe Gaskets (Manifold Side)
• 16 inch of Trim Seal
• 1.5' of 3/8 inch Heater Hose

Compatibility

This kit is compatible with:

• LB7: 03-04 VIN Code 1

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
