Breathe Easy with Our Engine Kit

Say goodbye to engine strain and hello to smooth performance! Our kit is designed to help both you and your engine breathe easy. It features a mandrel bent 4 1/2 inch intake tube that significantly boosts airflow, paired with HSP's signature heat shield box to keep unwanted hot air out of the cold air intake. Remember, for every 1-degree rise in intake air temperature, you could lose up to 3 horsepower!

High Flow Turbo Mouthpiece

This kit includes HSP's high flow turbo mouthpiece, which allows you to reroute your factory PCV system while removing the factory resonator box. This change helps prevent engine oil from gumming up your turbo and intake system (PCV re-route sold separately, see 003-1-HSP). Plus, we've added our 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. You can count on a snug fit that won’t let you down!

Improved Routing for Better Performance

The factory hot side intercooler tube is only 2.25 inches in diameter and has a 90-degree boot at the intercooler that is known to fail. Our design addresses this by routing the hot side tube directly into the intercooler, which helps lower temperatures, enhance airflow, and provide extra clearance in tight spots. Our bolted two-piece Y-bridge makes installation a breeze and ensures a leak-free seal, keeping you on the road without worries.

Durable Up-Pipe Included

We've also included a robust 2-inch passenger side up pipe featuring .120 inch tubing and the best bellow on the market. The factory up-pipe is often prone to failure at the riser due to excessive heat and pressure, but our design is built to last.

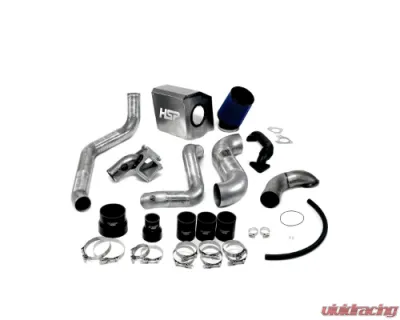

What’s in the Box?

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 1x 5/8 inch Heater Hose
• 1x 1/8 inch NPT Brass plug
• 2x Bridge Neck O-ring
• 2x 5/8 inch Worm Gear clamp
• 2x Bridge neck stud
• 2x Bridge neck 12-point Nut
• 3x 10-32 x 3/8 inch Button head screws
• 4x 1/8 inch Aluminum rivet
• 1x 4 inch - 4.5 inch reducer boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch t-bolt clamp
• 1x 4.5 inch filter
• 1x turbo inlet o-ring
• 1x up-pipe gasket (turbo side)
• 1x up-pipe gasket (manifold side)
• 2 ft of heater hose
• 16 inch of trim seal

Compatibility

This kit is compatible with:

• LMM: 07.5-10 VIN Code 6

Curious about your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of the truck.
