Revitalize Your Engine's Breathing

This kit is designed to help you and your engine breathe easy! It features a mandrel bent 4 1/2 inch intake tube that significantly boosts airflow. Plus, with HSP's signature heat shield box, you can say goodbye to unwanted hot air sneaking into your cold air intake. Remember, for every 1-degree rise in intake air temperature, you could be losing 3 horsepower!

Turbo Mouthpiece Benefits

One of the standout features of this kit is HSP's high flow turbo mouthpiece. This clever addition allows you to reroute your factory PCV system and remove the factory resonator box, which helps prevent engine oil from gumming up your turbo and intake system. (Note: PCV re-route is sold separately; check out part number 003-1-HSP.)

Easy Installation with Quality Components

Included in the kit are our 3-inch mandrel bent hot side and cold side tubes, along with our user-friendly two-piece Y-bridge. With race-proven 5-layer silicone boots, you can count on a perfect fit that won’t let you down. The factory hot side intercooler tube is only 2.25 inches in diameter and features a 90-degree boot at the intercooler, which is known to fail.

A Solution to Common Problems

With the original routing, the hot side intercooler tube can rub against the power steering line, leading to a hole and causing a boost leak. HSP's innovative solution runs the hot side tube directly into the intercooler, resulting in lower temperatures, improved airflow, and extra clearance in tight spots.

Reliable Two-Piece Y-Bridge

Our bolted together two-piece Y-bridge makes installation straightforward and ensures a leak-free seal, keeping you safe on the road. We’ve also included a 2-inch passenger side up pipe made from .120 inch tubing, featuring the best bellow on the market. The factory up pipe is known for failing at the riser due to excessive heat and pressure.

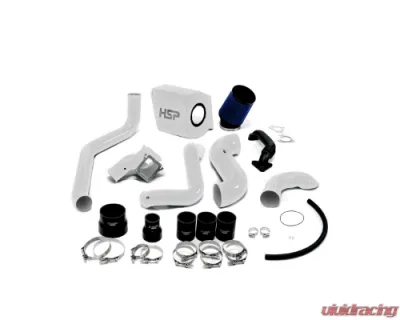

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 1x 5/8 inch Heater Hose
• 1x 1/8 inch NPT Brass plug
• 2x Bridge Neck O-ring
• 2x 5/8 inch Worm Gear clamp
• 2x Bridge neck stud
• 2x Bridge neck 12-point Nut
• 3x 10-32 x 3/8 inch Button head screws
• 4x 1/8 inch Aluminum rivet
• 1x 4 inch - 4.5 inch reducer boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch t-bolt clamp
• 1x 4.5 inch filter
• 1x turbo inlet o-ring
• 1x up-pipe gasket (turbo side)
• 1x up-pipe gasket (manifold side)
• 2 ft of heater hose
• 16 inch of trim seal

Compatibility

This kit is compatible with:

• LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
