Revitalize Your Engine with Our Premium Kit

This kit is designed to help you and your engine breathe easy. It features a mandrel-bent 4.5-inch intake tube that significantly boosts airflow, paired with HSP's signature heat shield box. This clever design keeps unwanted hot air from sneaking into your cold air intake. Just a 1-degree increase in intake air temperature can lead to a loss of 3 horsepower, so having the right setup is key!

Turbo Mouthpiece for Enhanced Performance

Included in this kit is HSP's high-flow turbo mouthpiece, which allows you to reroute your factory PCV system. Say goodbye to the factory resonator box and the issues of engine oil gumming up your turbo and intake system. (Please note, the PCV re-route is sold separately; check out 003-1-HSP for that.)

The kit also comes with 3-inch mandrel-bent hot side and cold side tubes, accompanied by our easy-to-install two-piece Y-bridge. With race-proven 5-layer silicone boots, you can count on a secure fit that won’t let you down.

Say Goodbye to Boost Leaks

The factory hot side intercooler tube is only 2.25 inches in diameter and has a 90-degree boot at the intercooler, which can be a weak point. This setup can lead to the hot side intercooler tube rubbing against the power steering line, creating a potential boost leak. HSP has tackled this issue by directing the hot side tube straight into the intercooler. This not only reduces temperatures but also improves airflow and provides extra clearance in tight spots.

Our bolted-together two-piece Y-bridge makes installation straightforward and ensures a leak-free seal, keeping you off the side of the road.

Quality Components for Reliable Performance

We’ve also included a robust 2-inch passenger side up pipe featuring .120-inch tubing and the best bellow available. The factory up-pipe is known to fail at the riser due to excessive heat and pressure, but our design minimizes that risk.

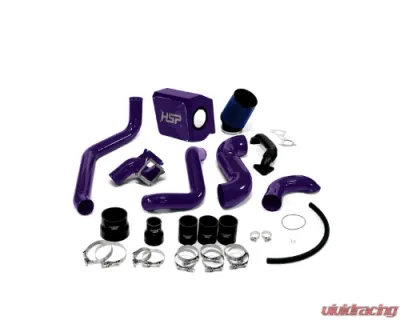

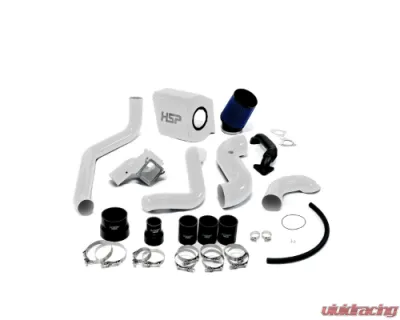

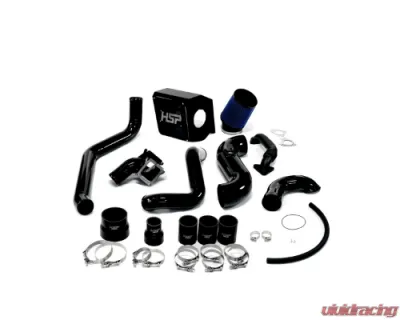

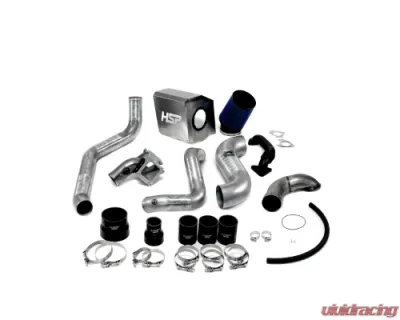

Included Components:

• 7x 3-inch T-bolt Clamps
• 1x 2.25-inch - 3-inch Reducer Boot
• 1x 2.25-inch T-Bolt Clamp
• 3x 3-inch x 4-inch Straight Boots
• 1x 1/8-inch NPT Brass Plug
• 1x Bridge Neck O-Ring
• 2x 5/8-inch Worm Gear Clamps
• 2x Bridge Neck Studs
• 2x Bridge Neck 12-Point Nuts
• 2x M4x.7x10mm Bolts
• 3x 10-32 x 3/8-inch Button Head Screws
• 4x 1/8-inch Aluminum Rivets
• 1x 4-inch - 4.5-inch Reducer Boot
• 1x 4-inch T-Bolt Clamp
• 1x 4.5-inch T-Bolt Clamp
• 1x 4.5-inch Filter
• 1x Turbo Inlet O-Ring
• 1x Up-Pipe Gasket (Turbo Side)
• 1x Up-Pipe Gasket (Manifold Side)
• 16 inches of Trim Seal
• 2 Feet of 5/8-inch Heater Hose

Compatibility

This kit is compatible with:

• LBZ: 06-07 VIN Code 2 or D

Curious about your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
