Transform Your Engine's Breathing

Say goodbye to engine strain with this fantastic kit designed to help both you and your engine breathe easy. It features a mandrel-bent 4.5-inch LBZ style intake tube that significantly boosts airflow. Plus, HSP's signature heat shield box keeps unwanted hot air from sneaking into the cold air intake. Just a single degree increase in intake air temperature can cost you 3 horsepower, so keeping things cool is key!

High-Performance Turbo Mouthpiece

This kit includes HSP's high-flow turbo mouthpiece, allowing you to reroute your factory PCV system and ditch the factory resonator box. This means no more pesky engine oil gumming up your turbo and intake system (note: the PCV re-route is sold separately, see 003-1-HSP). We’ve also included our 3-inch mandrel-bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. This ensures a snug fit that you can count on.

Smart Design for Better Performance

Unlike the factory hot side intercooler tube, which measures only 2.25 inches in diameter and has a 90-degree boot at the intercooler that’s known to fail, our design routes the hot side tube directly into the intercooler. This not only lowers temperatures but also improves airflow and adds clearance in tight spots. No more worrying about the hot side intercooler tube rubbing against the power steering line and causing a boost leak!

Cold Side Tube for Maximum Airflow

Our 3-inch cold side tube ensures your engine gets all the air it craves. The bolted-together two-piece Y-bridge makes installation a breeze and guarantees a leak-free seal, meaning you won’t find yourself stranded on the side of the road. To top it off, we’ve included one of our 2-inch passenger side up pipes, crafted with .120-inch tubing and the best bellow available on the market. The factory up-pipe often fails at the riser due to excessive heat and pressure, but not with ours!

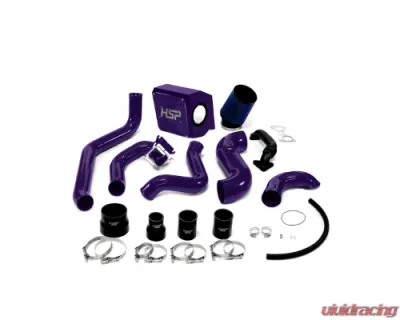

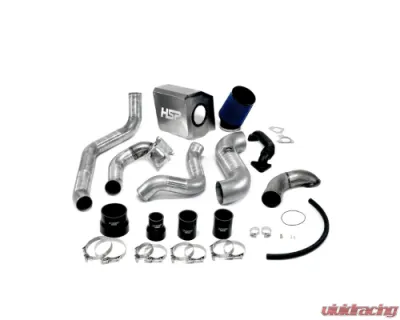

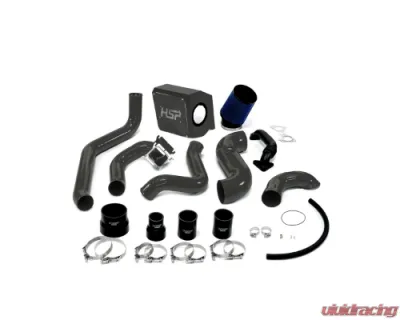

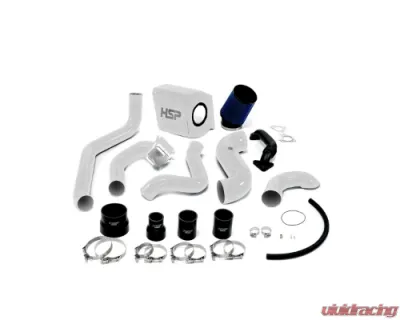

Included Components

• 2x 3 inch x 4 inch Straight boot
• 5x 3 inch T-bolt Clamps
• 1x 2.25 inch - 3 inch Reducer Boot
• 1x 2.25 inch T-bolt Clamp
• 1x Bridge Neck O-Ring
• 2x Bridge Neck Stud
• 2x Bridge Neck 12-point Nut
• 2' of Heater hose
• 2x 5/8 inch worm Gear Clamp
• 1x 1/8 inch NPT Brass Plug
• 2x M4x.7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screw
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 16 inch of Trim seal
• 1x Turbo Inlet O-Ring
• 1x Up-Pipe Gasket (Turbo Side)
• 1x Up-Pipe Gasket (Manifold Side)

Compatibility

This kit is compatible with:

LLY: 04.5-05 VIN Code 2

Wondering how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
