Complete Performance Kit for Your Truck

Are you on the hunt for a performance kit that truly has it all? Look no further! Our kit features a mandrel-bent 4 1/2 inch intake tube designed to maximize airflow, paired with HSP's signature heat shield box. This clever addition keeps unwanted hot air from entering your cold air intake, because we all know that every 1-degree increase in intake air temperature can lead to a 3hp loss.

Key Features

This kit also comes equipped with HSP's high-flow turbo mouthpiece. This innovative piece allows you to reroute your factory PCV system and remove the factory resonator box, which helps prevent engine oil from gumming up the turbo and intake system. (Please note, the PCV re-route is sold separately; check out part number 003-1-HSP.)

We’ve included 3-inch mandrel-bent hot side and cold side tubes, along with our user-friendly two-piece Y-bridge. The race-proven 5-layer silicone boots ensure a snug fit that you can trust won't let you down.

Designed for Reliability

The factory hot side intercooler tube is just 2.25 inches in diameter and features a 90-degree boot at the intercooler that can be prone to failure. This setup can also lead to the hot side intercooler tube rubbing against the power steering line, creating the risk of a boost leak.

Our solution? We’ve designed the hot side tube to run directly into the intercooler, which results in lower temperatures, improved airflow, and extra clearance in tight spots. Plus, our bolted-together two-piece Y-bridge makes installation a breeze while ensuring a leak-free seal that keeps you on the road.

Additional Components for Performance

To help your engine breathe easier, we’ve included factory replacement 2-inch up pipes. These up pipes feature .120-inch wall tubing with the toughest bellows available, ensuring they’ll last as long as your truck does.

For a stylish touch, our forward-facing thermostat housing includes a coolant return to help keep your VGT turbo running cool. And if your factory coolant tank is looking a bit worn, we’ve got you covered with a sleek factory replacement. Our coolant tank boasts an all-aluminum design and comes with an integrated low coolant sensor.

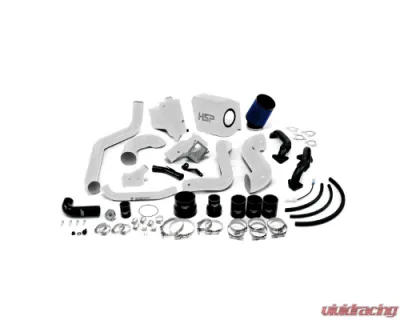

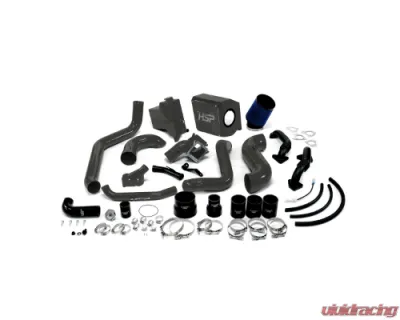

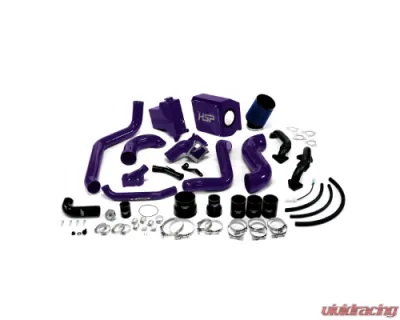

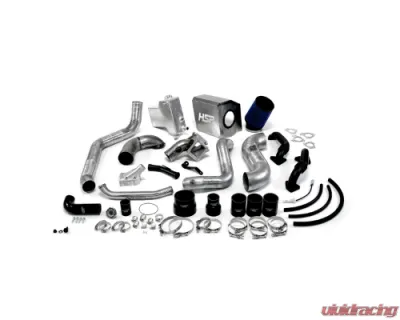

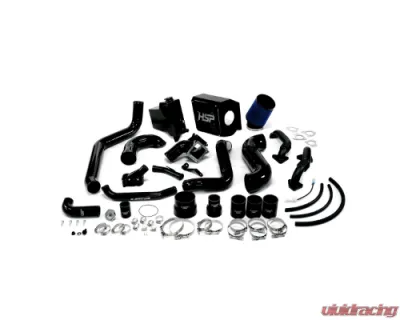

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 2x 5/8 inch Worm gear clamp
• 1x 1/8 inch NPT Brass plug
• 1x Bridge Neck O-ring
• 2x Bridge neck stud
• 2x Bridge neck 12-point nut
• 2x M4x.7x10mm bolt
• 3x 10-32 x 3/8 inch Button head screw
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer boot
• 1x 4 inch T-bolt clamp
• 1x 4.5 inch T-bolt clamp
• 1x 4.5 inch filter
• 1x Turbo inlet o-ring
• 1x radiator cap
• 5x 1/2 inch worm gear clamp
• 1x 1 inch worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket Cap bolt
• 1x M14x1.5 to 3/8 inch hose barb
• 1x M14x1.5 Metric Port plug
• 1x Metric Bonding seal 14mm
• 1x 1.75 inch x 3 inch Straight boot
• 1x 1.75 inch 90-degree Boot
• 4x 1 3/4 inch worm gear clamp
• 2x up-pipe gasket (turbo side)
• 2x up-pipe gasket (manifold side)

Compatibility

This kit is compatible with:

LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
