Your All-in-One Performance Kit

Are you on the hunt for a kit that truly has it all? Look no further! HSP brings you a fantastic solution featuring a mandrel-bent 4-inch intake tube designed for incredible airflow gains. Plus, our signature heat shield box keeps unwanted hot air from sneaking into your cold air intake. Did you know that for every 1-degree increase in intake air temperature, you could lose 3 horsepower? That’s why our kit is engineered to keep your engine running cool and efficient.

High-Performance Components

This kit includes HSP's high-flow turbo mouthpiece, which outperforms any ported mouthpiece available today. We also provide HSP's hot side and cold side intercooler piping to ensure optimal performance.

Say Goodbye to Restrictive Tubing

If you own a 2001-2004 Duramax truck, you’re probably aware that the factory intercooler tubing can be quite restrictive and prone to failure. With only a 2.25-inch diameter and a 90-degree boot at the intercooler, it’s a recipe for trouble. This setup can even lead to the hot side intercooler tube rubbing against the power steering line, which might create a boost leak. Yikes!

Our Solution

HSP has the perfect fix! We designed the hot side tube to run directly into the intercooler, utilizing race-proven 5-layer silicone boots. This innovative design results in lower temperatures, improved airflow, and extra clearance in tight spaces. To help your engine breathe easier, our kit also includes factory replacement 2-inch up pipes.

Built to Last

Our up pipes are constructed with .120-inch wall tubing and the toughest bellows on the market, ensuring they stand the test of time alongside your truck. Plus, for a stylish touch, we’ve included a forward-facing thermostat housing with a coolant return to keep your IHI turbo running cool.

Upgrade Your Coolant Tank

Is your factory coolant tank starting to show its age? No worries! We’ve included a factory replacement coolant tank that not only looks great but also features an all-aluminum design with an integrated low coolant sensor.

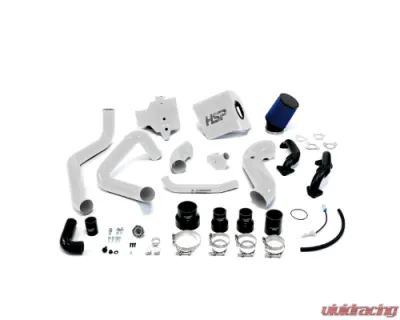

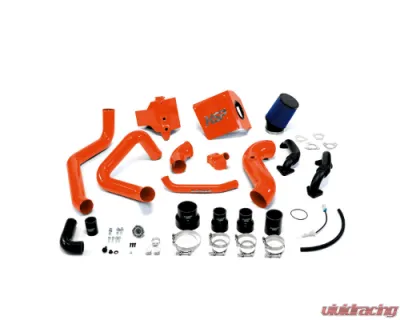

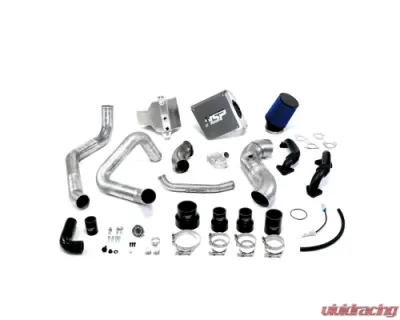

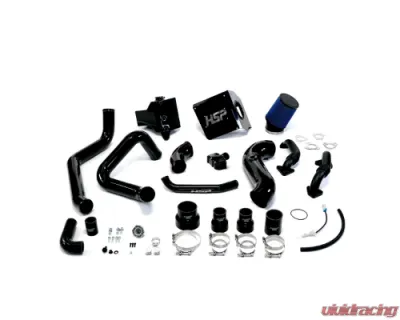

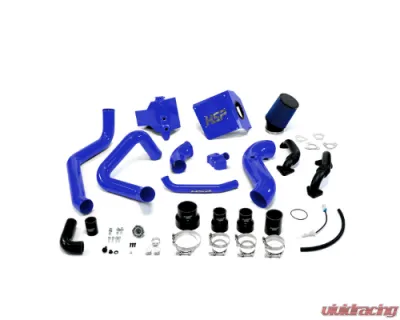

What’s Included in the Kit?

• 1x 3 inch x 4 inch Straight Boot
• 4x 3 inch T-bolt Clamps
• 2x 2.25 inch - 3 inch Reducer Boots
• 2x 2.25 inch T-bolt Clamps
• 2x M4 x .7x10mm Bolts
• 3x 10-32 x 3/8 inch Button Head Screws
• 4x 1/8 inch Aluminum Rivets
• 1x 3.5 inch - 4.5 inch Reducer Boot
• 1x 3.5 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 3x M6 x 1.0x20mm Button Head Screws
• 1x LB7 Turbo Inlet O-Ring
• 1x Radiator Cap
• 5x 1/2 inch Worm Gear Clamps
• 1x 1 inch Worm Gear Clamp
• 1x 1/2 inch NPT Float Switch
• 1x Low Coolant Sensor
• 1x Thermostat Housing O-Ring
• 3x M6 x 1.0x35mm Flange Bolts
• 6x M6 Fender Washers
• 3x M6 Nylon Lock Nuts
• 4x M8x1.25-25mm Socket Cap Bolts
• 4x M6 x 1.0-18mm Socket Cap Bolts
• 1x M14 x 1.5 to 3/8 inch Hose Barb
• 1x M14 x 1.5 Metric Port Plug
• 1x Metric Bond Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 Degree Boot
• 4x 1 3/4 inch Worm Gear Clamps
• 2x Up-pipe Gaskets (Turbo Side)
• 2x Up-Pipe Gaskets (Manifold Side)
• 16 inch of Trim Seal
• 1.5' of 3/8 inch Heater Hose

Compatibility

This kit is compatible with:

• LB7: 03-04 VIN Code 1

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
