Breathe Easy with Our Premium Intake Kit

Say goodbye to engine worries! Our intake kit is designed to help both you and your engine breathe a little easier. With a robust 4.5-inch mandrel-bent intake tube, you’ll experience significant airflow improvements. Plus, HSP's signature heat shield box works tirelessly to keep unwanted hot air from sneaking into your cold air intake. Did you know that just a 1-degree rise in intake air temperature can cost you 3 horsepower? That's why we’ve got you covered!

Turbo Mouthpiece Features

Our high-flow turbo mouthpiece lets you reroute your factory PCV system while removing the factory resonator box. This helps prevent engine oil from gumming up your turbo and intake system. (Note: PCV re-route sold separately, check out part number 003-1-HSP.)

Easy Installation

You’ll find our 3-inch mandrel-bent hot side and cold side tubes easy to install. The two-piece Y-bridge comes with race-proven 5-layer silicone boots, ensuring a snug fit that you can rely on.

Addressing Common Issues

Did you know that the factory hot side intercooler tube is only 2.25 inches in diameter? It also has a 90-degree boot at the intercooler that can easily fail. Our new routing design directs the hot side tube straight into the intercooler, helping to lower temperatures, improve airflow, and provide extra clearance in tight spots.

Leak-Free Assurance

Our bolted-together two-piece Y-bridge makes installation a breeze and guarantees a leak-free seal, so you won’t find yourself stranded on the side of the road. We’ve also included a 2-inch passenger side up pipe featuring .120 inch tubing and the best bellow available on the market. The factory up pipe often struggles under excessive heat and pressure, but ours is built to last.

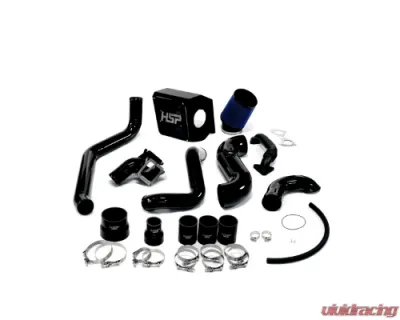

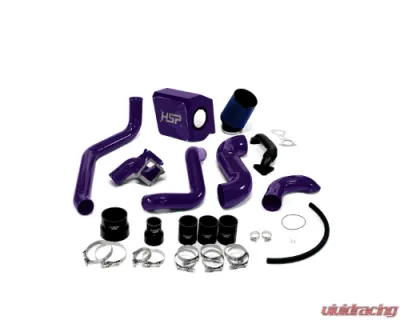

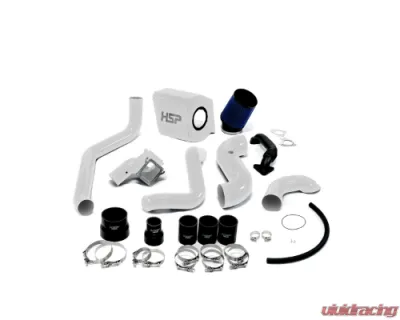

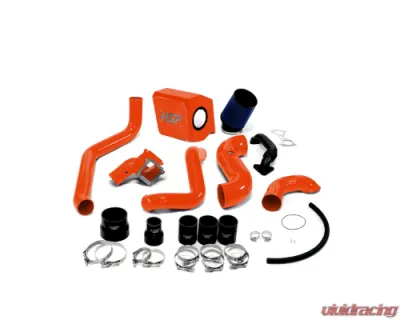

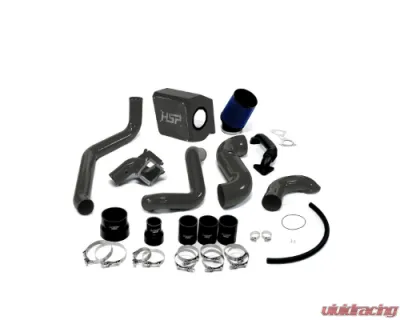

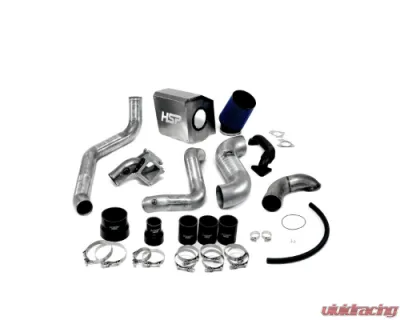

Included Components

• 7x 3 inch T-bolt Clamps
• 1x 2.25 inch - 3 inch Reducer Boot
• 1x 2.25 inch T-Bolt Clamp
• 3x 3 inch x 4 inch Straight Boots
• 1x 1/8 inch NPT Brass Plug
• 1x Bridge Neck O-Ring
• 2x 5/8 inch Worm Gear Clamps
• 2x Bridge Neck Studs
• 2x Bridge Neck 12-Point Nuts
• 2x M4x.7x10mm Bolts
• 3x 10-32 x 3/8 inch Button Head Screws
• 4x 1/8 inch Aluminum Rivets
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo Inlet O-Ring
• 1x Up-Pipe Gasket (Turbo Side)
• 1x Up-Pipe Gasket (Manifold Side)
• 16 inches of Trim Seal
• 2 Feet of 5/8 inch Heater Hose

Compatibility

This kit is compatible with:

• LBZ: 06-07 VIN Code 2 or D

How to Identify Your VIN Code

The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
