Complete Performance Kit for Your Truck

Are you on the hunt for a kit that truly has it all? Look no further! Our performance kit features a mandrel bent 4 1/2 inch intake tube designed to maximize airflow, paired with HSP's signature heat shield box. This clever addition helps keep unwanted hot air from sneaking into your cold air intake. Did you know that for every 1-degree increase in intake air temperature, you could lose up to 3 horsepower? With our kit, you can keep those numbers in check!

High-Quality Components

This kit also includes HSP's high flow turbo mouthpiece, which allows you to reroute your factory PCV system and remove the factory resonator box. This means less engine oil gumming up your turbo and intake system (please note that the PCV re-route is sold separately; check out part number 003-1-HSP). You’ll also receive our 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. This ensures a perfect fit that you can count on.

Smart Design for Better Performance

The factory hot side intercooler tube measures only 2.25 inches in diameter and has a 90-degree boot at the intercooler, which can be a weak point. This design can lead to rubbing against the power steering line, potentially causing a boost leak. HSP's solution? We’ve engineered a hot side tube that runs directly into the intercooler, resulting in lower temperatures, improved airflow, and extra clearance in tight spaces. Our two-piece Y-bridge bolts together easily and guarantees a leak-free seal, ensuring you won’t find yourself stranded.

Enhanced Cooling and Aesthetics

To help your engine breathe easier, this kit includes factory replacement 2-inch up pipes. Our up pipes are built with .120 inch wall tubing and feature the toughest bellows available, ensuring they’ll stand the test of time alongside your truck. For added style, we’ve included a forward-facing thermostat housing with coolant return to keep your VGT turbo cool. Is your factory coolant tank starting to look a bit tired? Don’t worry! We’ve got you covered with a factory replacement coolant tank that not only performs well but also looks great under the hood. This tank boasts an all-aluminum design with a built-in low coolant sensor.

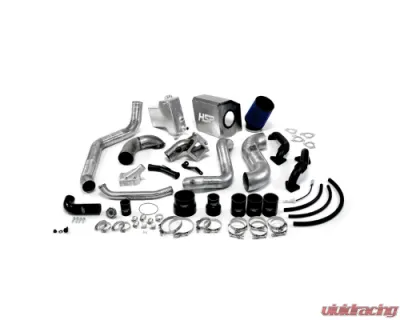

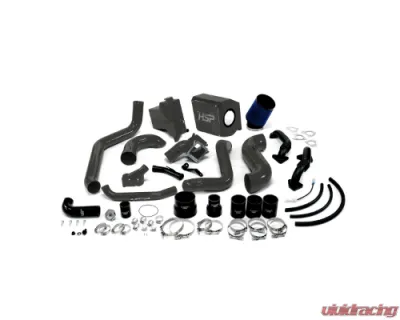

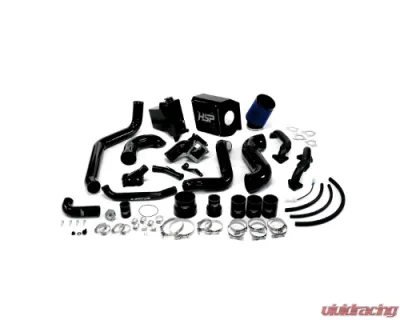

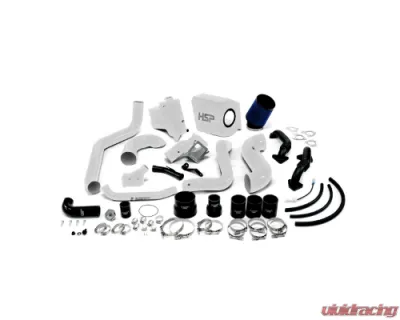

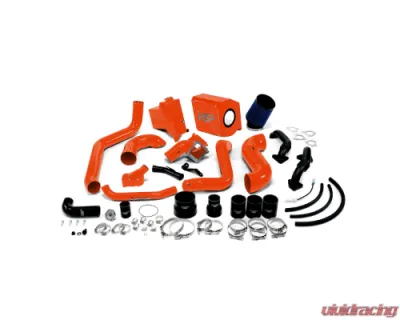

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 2x 5/8 inch Worm gear clamp
• 1x 1/8 inch NPT Brass plug
• 1x Bridge Neck O-ring
• 2x Bridge neck stud
• 2x Bridge neck 12-point nut
• 2x M4x.7x10mm bolt
• 3x 10-32 x 3/8 inch Button head screw
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer boot
• 1x 4 inch T-bolt clamp
• 1x 4.5 inch T-bolt clamp
• 1x 4.5 inch filter
• 1x Turbo inlet o-ring
• 1x radiator cap
• 5x 1/2 inch worm gear clamp
• 1x 1 inch worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket Cap bolt
• 1x M14x1.5 to 3/8 inch hose barb
• 1x M14x1.5 Metric Port plug
• 1x Metric Bonding seal 14mm
• 1x 1.75 inch x3 inch Straight boot
• 1x 1.75 inch 90 degree Boot
• 4x 1 3/4 inch worm gear clamp
• 2x up-pipe gasket (turbo side)
• 2x up-pipe gasket (manifold side)

Compatibility

Compatible with:

LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
