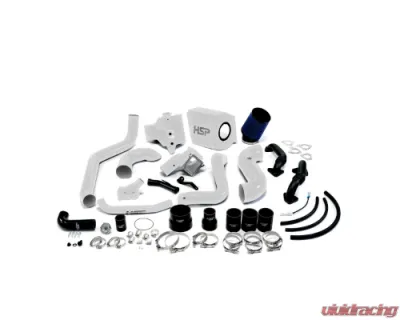

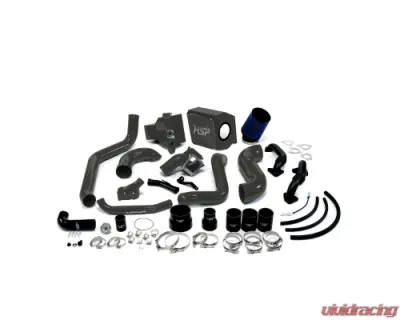

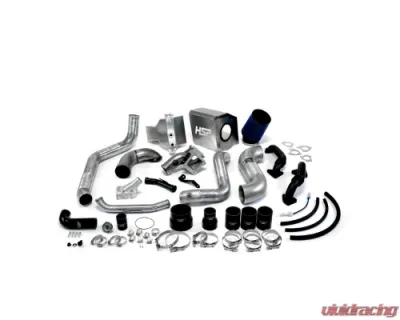

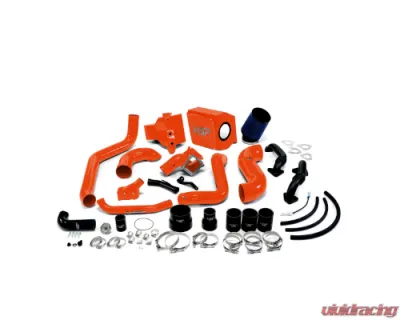

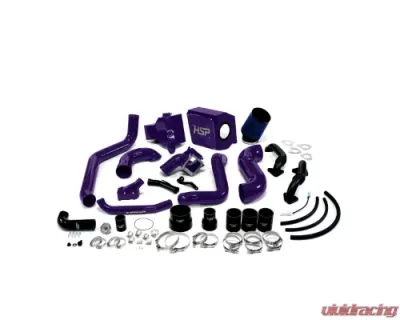

All-in-One Performance Kit

Are you on the hunt for a kit that truly has it all? Look no further! This impressive setup features a mandrel-bent 4.5-inch intake tube designed for significant airflow gains. Plus, with HSP's signature heat shield box, you can say goodbye to unwanted hot air entering your cold air intake. Remember, for every 1-degree increase in intake air temperature, you could lose 3 horsepower!

High Flow Turbo Mouthpiece

What’s more, this kit includes HSP's high flow turbo mouthpiece, allowing you to reroute your factory PCV system and ditch that factory resonator box. This change helps eliminate unwanted engine oil from gumming up your turbo and intake system (PCV re-route sold separately, check out 003-1-HSP). You’ll also find our 3-inch mandrel-bent hot side and cold side tubes, paired with an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. You can trust this setup for a snug fit that won’t let you down!

Smart Design for Better Performance

Did you know that the factory hot side intercooler tube is only 2.25 inches in diameter and comes with a 90-degree boot at the intercooler? This design can lead to failure. Our approach reroutes the hot side tube directly into the intercooler, resulting in lower temperatures, improved airflow, and better clearance in those tight spots.

Easy Installation

Our two-piece Y-bridge bolts together seamlessly, making installation a breeze and ensuring a leak-free seal that keeps you on the road. To help your engine breathe better, we’ve included factory replacement 2-inch up pipes. These up pipes are crafted with .120-inch wall tubing and the toughest bellows on the market, ensuring they last as long as your truck.

Stylish and Functional

We didn’t forget about style! This kit includes a forward-facing thermostat housing with a coolant return to help keep your VGT turbo running cool. Is your factory coolant tank looking a bit worn? No worries! We’ve also included a factory replacement coolant tank to keep your engine bay looking sharp. Our coolant tank features an all-aluminum design complete with a low coolant sensor.

Included Components:

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 T-bolt Clamp
• 1x 1/8 inch NPT Brass Plug
• 1x Bridge neck O-ring
• 2x 5/8 inch Worm Gear Clamp
• 2x Bridge neck stud
• 2x Bridge Neck 12-point Nut
• 2x M4x.7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screws
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch T-bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo inlet o-ring
• 1x Radiator cap
• 5x 1/2 inch Worm gear clamp
• 1x 1 inch Worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low Coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket cap bolt
• 1x M14x1.5 to 3/8 inch Hose Barb
• 1x M14x1.5 Metric Port Plug
• 1x Metric Bonded Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 degree Boot
• 4x 1 3/4 inch Worm Gear clamps
• 2x Up-Pipe Gaskets (Manifold Side)
• 2x Up-Pipe Gaskets (Turbo side)

Compatibility:

This kit is compatible with:

• LBZ: 06-07 VIN Code 2 or D

Wondering how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
