Transform Your Engine's Breathing

This kit is designed to help you and your engine breathe easy! With a robust 4 1/2 inch mandrel bent intake tube, you can enjoy significant airflow improvements. Plus, HSP's signature heat shield box keeps unwanted hot air from infiltrating your cold air intake.

Performance Matters

Did you know that for every 1-degree increase in intake air temperature, you could lose 3 horsepower? That's why this kit includes HSP's high flow turbo mouthpiece, allowing you to reroute your factory PCV system and eliminate that pesky factory resonator box. This means no more unwanted engine oil gumming up your turbo and intake system. (Just a quick note: the PCV re-route is sold separately, check out part number 003-1-HSP.)

Easy Installation

Included in the kit are 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge. With race-proven 5-layer silicone boots, you can count on a perfect fit that won’t let you down. The factory hot side intercooler tube is just 2.25 inches in diameter and often has a 90-degree boot at the intercooler, which can be a weak point.

A Smart Solution

Sometimes, the hot side intercooler tube can rub against the power steering line, leading to potential damage and boost leaks. HSP has addressed this by designing the hot side tube to run directly into the intercooler. This results in lower temperatures, improved airflow, and better clearance in those tight spaces.

Reliable Components

Our two-piece Y-bridge bolts together easily, ensuring a simple installation and a leak-free seal that keeps you on the road. Plus, we've included a 2-inch passenger side up pipe made from .120 inch tubing, featuring the best bellow on the market. The factory up pipe can fail at the riser due to excessive heat and pressure, but not with ours!

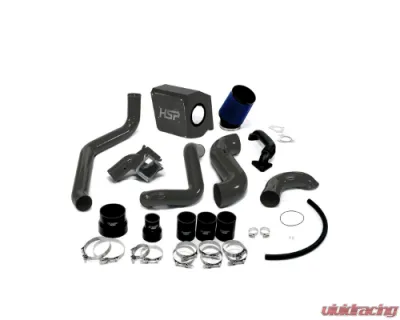

Included Components:

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 1x 5/8 inch Heater Hose
• 1x 1/8 inch NPT Brass plug
• 2x Bridge Neck O-ring
• 2x 5/8 inch Worm Gear clamp
• 2x Bridge neck stud
• 2x Bridge neck 12-point Nut
• 3x 10-32 x 3/8 inch Button head screws
• 4x 1/8 inch Aluminum rivet
• 1x 4 inch - 4.5 inch reducer boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch t-bolt clamp
• 1x 4.5 inch filter
• 1x turbo inlet o-ring
• 1x up-pipe gasket (turbo side)
• 1x up-pipe gasket (manifold side)
• 2 ft of heater hose
• 16 inch of trim seal

Compatibility

This kit is compatible with:

• LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
