Rev Up Your Ride with Our All-in-One Kit!

Are you on the hunt for a complete kit that truly delivers? Look no further! Our kit features a mandrel bent 4 1/2 inch intake tube designed to maximize airflow, paired with HSP's signature heat shield box to keep unwanted hot air from sneaking into your cold air intake. Remember, for every 1-degree rise in intake air temperature, you could lose 3 horsepower!

Key Features

This kit isn’t just about airflow; it also includes HSP's high flow turbo mouthpiece. This handy addition allows you to reroute your factory PCV system and remove the factory resonator box. Say goodbye to engine oil gumming up your turbo and intake system (PCV re-route sold separately, see 003-1-HSP). You’ll also find our 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. This means you get a snug fit that you can count on!

Say Goodbye to Common Issues

If you’ve noticed that the factory hot side intercooler tube is only 2.25 inches in diameter and has a 90-degree boot at the intercooler, you’re not alone! This setup is known to fail and can even rub against the power steering line, causing potential boost leaks. Our solution? We’ve designed the hot side tube to go directly into the intercooler, leading to lower temperatures, improved airflow, and extra clearance in tight spots. Plus, our bolted-together two-piece Y-bridge makes installation a breeze and ensures a leak-free seal that keeps you on the road.

Enhanced Exhaust Flow

To help get those exhaust gases moving, this kit comes with factory replacement 2-inch up pipes. These up pipes are built with .120 inch wall tubing and the toughest bellows on the market, ensuring they stand the test of time alongside your truck.

Stylish and Functional Components

We haven’t forgotten about style! Our forward-facing thermostat housing comes with a coolant return to keep your VGT turbo running cool. Is your factory coolant tank starting to look a bit worn? No worries! We’ve included a factory replacement coolant tank made from all-aluminum, complete with a low coolant sensor to keep your engine bay looking sharp.

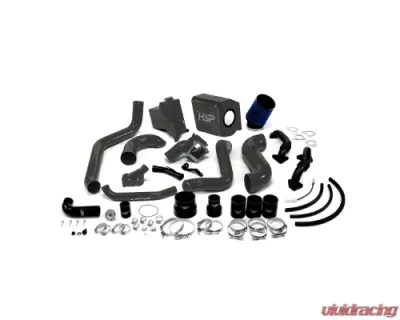

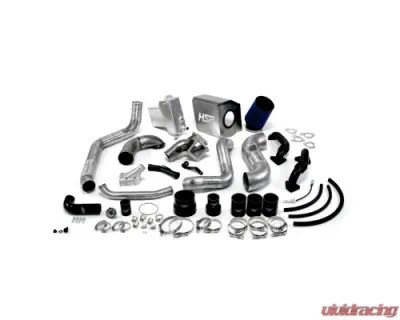

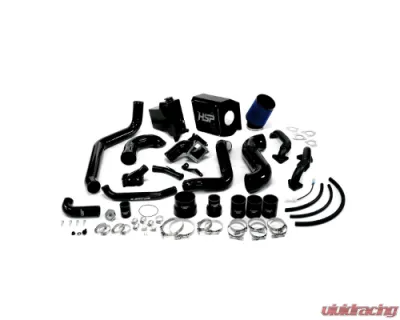

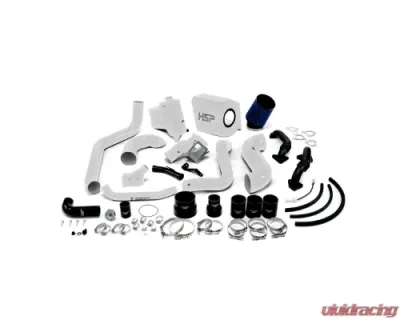

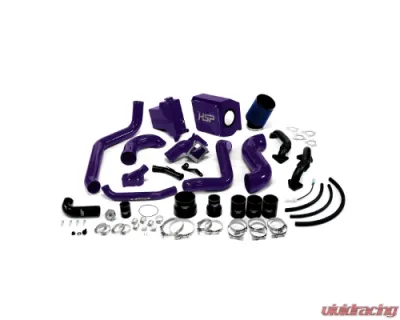

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 2x 5/8 inch Worm gear clamp
• 1x 1/8 inch NPT Brass plug
• 1x Bridge Neck O-ring
• 2x Bridge neck stud
• 2x Bridge neck 12-point nut
• 2x M4x.7x10mm bolt
• 3x 10-32 x 3/8 inch Button head screw
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer boot
• 1x 4 inch T-bolt clamp
• 1x 4.5 inch T-bolt clamp
• 1x 4.5 inch filter
• 1x Turbo inlet o-ring
• 1x radiator cap
• 5x 1/2 inch worm gear clamp
• 1x 1 inch worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket Cap bolt
• 1x M14x1.5 to 3/8 inch hose barb
• 1x M14x1.5 Metric Port plug
• 1x Metric Bonding seal 14mm
• 1x 1.75 inch x 3 inch Straight boot
• 1x 1.75 inch 90 degree Boot
• 4x 1 3/4 inch worm gear clamp
• 2x up-pipe gasket (turbo side)
• 2x up-pipe gasket (manifold side)

Compatibility

This kit is compatible with:

• LMM: 07.5-10 VIN Code 6

Curious about how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
