Complete Kit for Your Duramax Truck

Are you on the hunt for a kit that truly has everything you need? Look no further! Our HSP kit features a mandrel-bent 4-inch intake tube designed to maximize airflow, ensuring your engine breathes easy. Plus, the signature heat shield box helps keep unwanted hot air from sneaking into the cold air intake. Remember, for every 1-degree rise in intake air temperature, you could lose about 3 horsepower!

High-Performance Components

This kit is packed with HSP's high-flow turbo mouthpiece, which outperforms any ported mouthpiece available on the market. You’ll also receive both hot side and cold side intercooler piping to keep everything running smoothly.

Say Goodbye to Restrictive Tubing

If you own a 2001-2004 Duramax truck, you know that the factory intercooler tubing can be a real bottleneck. With a diameter of only 2.25 inches and a 90-degree boot at the intercooler, it’s prone to failure. This setup might even cause the hot side intercooler tube to rub against the power steering line, leading to potential boost leaks.

Smart Solutions for Better Performance

HSP has tackled this issue by routing the hot side tube directly into the intercooler using race-proven 5-layer silicone boots. This design results in lower temperatures, improved airflow, and added clearance in tight spots. To help your engine expel exhaust gases effectively, we’ve included factory replacement 2-inch up pipes.

Durability You Can Count On

Our up pipes are constructed with .120-inch wall tubing and the toughest bellows available, ensuring they will last as long as your truck. For a touch of style, we’ve added a forward-facing thermostat housing with a coolant return to keep your IHI turbo running cool. And if your factory coolant tank is starting to show its age, don’t worry! We’ve included a sleek, all-aluminum replacement coolant tank that features a low coolant sensor to keep your engine bay looking sharp.

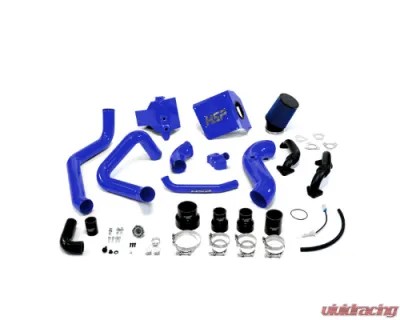

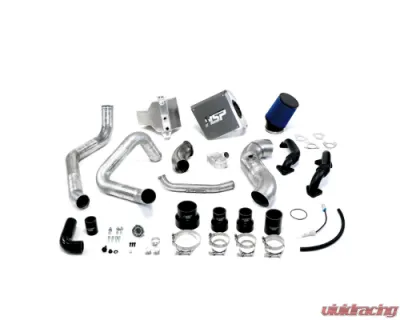

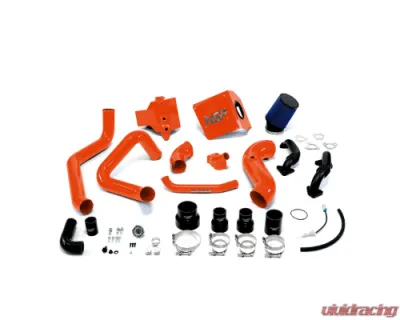

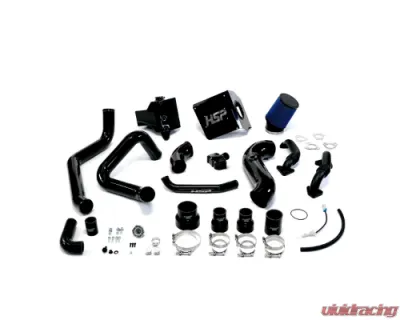

Included Components

• 1x 3 inch x 4 inch Straight Boot
• 4x 3 inch T-bolt Clamps
• 2x 2.25 inch - 3 inch Reducer Boots
• 2x 2.25 inch T-bolt Clamps
• 2x M4 x .7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screw
• 4x 1/8 inch Aluminum Rivet
• 1x 3.5 inch - 4.5 inch Reducer Boot
• 1x 3.5 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 3x M6 x 1.0x20mm Button Head Screw
• 1x LB7 Turbo Inlet O-Ring
• 1x Radiator Cap
• 5x 1/2 inch Worm Gear Clamps
• 1x 1 inch Worm Gear Clamp
• 1x 1/2 inch NPT Float Switch
• 1x Low Coolant Sensor
• 1x Thermostat Housing O-Ring
• 3x M6 x 1.0x35mm Flange Bolt
• 6x M6 Fender Washers
• 3x M6 Nylon Lock Nut
• 4x M8x1.25-25mm Socket Cap Bolt
• 4x M6 x 1.0-18mm Socket Cap Bolt
• 1x M14 x 1.5 to 3/8 inch Hose Barb
• 1x M14 x 1.5 Metric Port Plug
• 1x Metric Bond Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 Degree Boot
• 4x 1 3/4 inch Worm Gear Clamps
• 2x Up-pipe Gaskets (Turbo Side)
• 2x Up-Pipe Gaskets (Manifold Side)
• 16 inch of Trim Seal
• 1.5 feet of 3/8 inch Heater Hose

Compatibility

This kit is compatible with:

• LB7: 03-04 VIN Code 1

Wondering how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
