Revitalize Your Engine's Breathing

Say goodbye to struggling for air with this fantastic kit designed to help both you and your engine breathe easy. Featuring a mandrel-bent 4.5-inch intake tube, you'll enjoy significant airflow gains. Plus, with HSP's signature heat shield box, you can keep unwanted hot air from sneaking into your cold air intake. Remember, for every 1-degree rise in intake air temperature, you could lose up to 3 horsepower!

Turbo Mouthpiece for Enhanced Performance

This kit includes HSP's high-flow turbo mouthpiece, which gives you the option to reroute your factory PCV system. By removing the factory resonator box, you can prevent engine oil from gumming up your turbo and intake system. (Keep in mind, the PCV re-route is sold separately; check out 003-1-HSP for that.)

Easy Installation with Quality Components

We’ve also included 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge. With our race-proven 5-layer silicone boots, you can trust that you’ll get a snug fit that won’t let you down.

Addressing Common Issues

The factory hot side intercooler tube measures only 2.25 inches in diameter and features a 90-degree boot at the intercooler, which is known to fail. This setup can lead to the hot side intercooler tube rubbing against the power steering line, potentially causing a boost leak. Our solution? We’ve designed the hot side tube to connect directly to the intercooler, resulting in lower temperatures, improved airflow, and extra clearance in those tight spots.

Reliable Sealing and Performance

Our two-piece Y-bridge bolts together easily, ensuring a leak-free seal that keeps you on the road without worries. Plus, we’ve included a robust 2-inch passenger side up pipe crafted from .120-inch tubing, featuring the best bellow on the market. The factory up pipe often succumbs to failure due to excessive heat and pressure, but not with our solution!

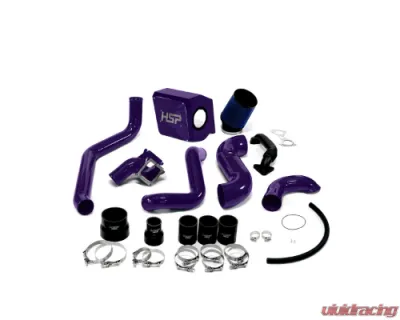

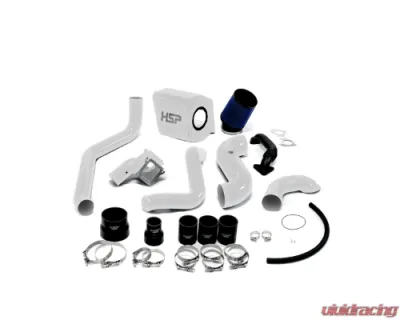

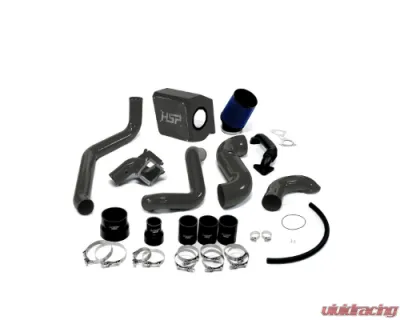

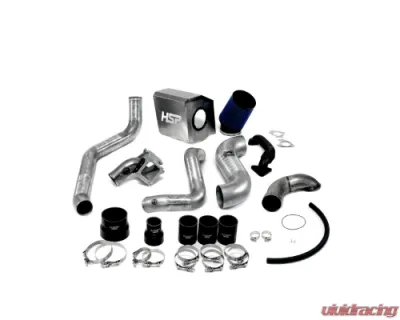

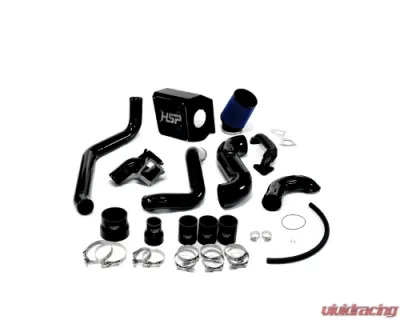

What’s Included in the Kit

• 7x 3-inch T-bolt Clamps
• 1x 2.25-inch - 3-inch Reducer Boot
• 1x 2.25-inch T-Bolt Clamp
• 3x 3-inch x 4-inch Straight Boots
• 1x 1/8-inch NPT Brass Plug
• 1x Bridge Neck O-Ring
• 2x 5/8-inch Worm Gear Clamps
• 2x Bridge Neck Studs
• 2x Bridge Neck 12-Point Nuts
• 2x M4x.7x10mm Bolts
• 3x 10-32 x 3/8-inch Button Head Screws
• 4x 1/8-inch Aluminum Rivets
• 1x 4-inch - 4.5-inch Reducer Boot
• 1x 4-inch T-Bolt Clamp
• 1x 4.5-inch T-Bolt Clamp
• 1x 4.5-inch Filter
• 1x Turbo Inlet O-Ring
• 1x Up-Pipe Gasket (Turbo Side)
• 1x Up-Pipe Gasket (Manifold Side)
• 16 inches of Trim Seal
• 2 Feet of 5/8-inch Heater Hose

Compatibility

This kit is compatible with:

• LBZ: 06-07 VIN Code 2 or D

Curious about your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
