Introducing the Ultimate Duramax Performance Kit

Are you on the hunt for a complete kit that truly delivers? Look no further! Our kit features a mandrel-bent 4-inch intake tube designed to maximize airflow, paired with HSP's signature heat shield box that effectively keeps unwanted hot air from sneaking into your cold air intake. Remember, for every 1-degree rise in intake air temperature, you can lose 3hp. We’ve got you covered!

Key Features

This kit also boasts HSP's high-flow turbo mouthpiece, which outperforms any ported mouthpiece available on the market. Plus, you’ll receive HSP's hot side and cold side intercooler piping to complete your setup.

Say Goodbye to Restrictive Factory Tubing

If you own a 2001-2004 Duramax truck, you might be familiar with the factory intercooler tubing's limitations. At just 2.25 inches in diameter, it features a 90-degree boot at the intercooler that can be prone to failure. This setup can even lead to the hot side intercooler tube rubbing against the power steering line, potentially causing a boost leak.

A Smart Solution

HSP has created a smart solution by routing the hot side tube directly into the intercooler using race-proven 5-layer silicone boots. This design results in lower temperatures, improved airflow, and extra clearance in those tight spots.

Enhanced Exhaust Flow

To help your engine breathe easier, we’ve included factory replacement 2-inch up pipes made from .120 inch wall tubing, equipped with the toughest bellows on the market. They are built to last as long as your truck!

Stylish and Functional Components

We didn’t forget about style! Our forward-facing thermostat housing with coolant return keeps your IHI turbo running cool. Is your factory coolant tank looking a bit worn? We've got you covered with a stylish, all-aluminum replacement coolant tank that includes a low coolant sensor to keep everything in check.

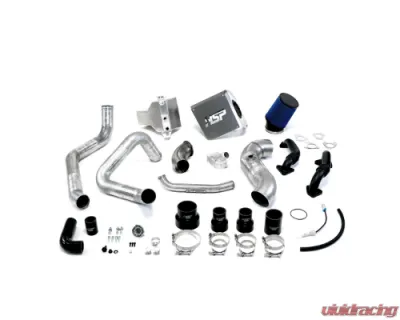

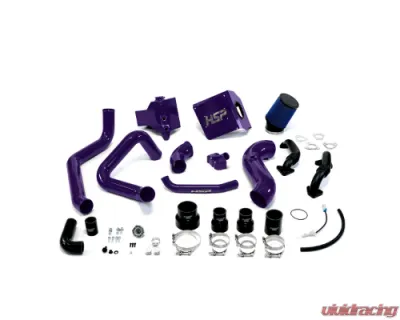

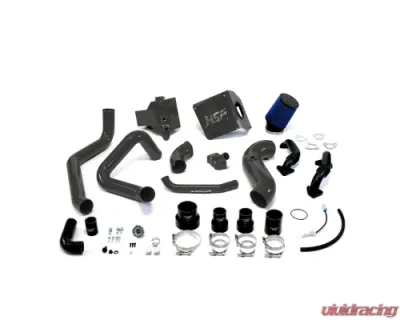

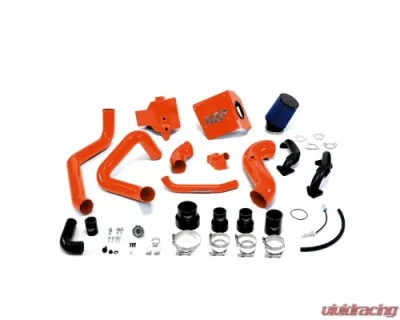

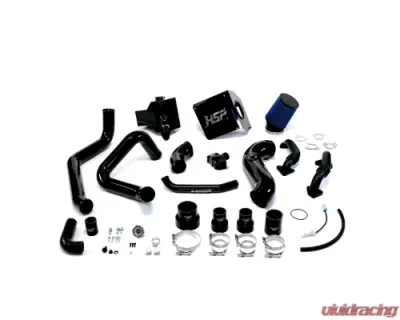

What’s Included in the Kit

• 1x 3 inch x 4 inch Straight Boot
• 4x 3 inch T-bolt Clamps
• 2x 2.25 inch - 3 inch Reducer Boots
• 2x 2.25 inch T-bolt Clamps
• 2x M4 x .7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screw
• 4x 1/8 inch Aluminum Rivet
• 1x 3.5 inch - 4.5 inch Reducer Boot
• 1x 3.5 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 3x M6 x 1.0x20mm Button Head Screw
• 1x LB7 Turbo Inlet O-Ring
• 1x Radiator Cap
• 5x 1/2 inch Worm Gear Clamps
• 1x 1 inch Worm Gear Clamp
• 1x 1/2 inch NPT Float Switch
• 1x Low Coolant Sensor
• 1x Thermostat Housing O-Ring
• 3x M6 x 1.0x35mm Flange Bolt
• 6x M6 Fender Washers
• 3x M6 Nylon Lock Nut
• 4x M8x1.25-25mm Socket Cap Bolt
• 4x M6 x 1.0-18mm Socket Cap Bolt
• 1x M14 x 1.5 to 3/8 inch Hose Barb
• 1x M14 x 1.5 Metric Port Plug
• 1x Metric Bond Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 Degree Boot
• 4x 1 3/4 inch Worm Gear Clamps
• 2x Up-pipe Gaskets (Turbo Side)
• 2x Up-Pipe Gaskets (Manifold Side)
• 16 inch of Trim Seal
• 1.5' of 3/8 inch Heater Hose

Compatibility

This kit is compatible with:

• LB7: 03-04 VIN Code 1

Wondering how to find your VIN code? The engine code is indicated by the 8th character of the VIN number, while the 10th character reveals the truck's year.
