All-in-One Performance Kit

Are you on the hunt for a performance kit that truly has it all? Look no further! Our kit features a mandrel bent 4 1/2 inch intake tube designed to maximize airflow, paired with HSP's signature heat shield box. This clever design keeps unwanted hot air from sneaking into your cold air intake. Remember, for every 1-degree rise in intake air temperature, you could lose up to 3 horsepower!

Turbo Mouthpiece and PCV Reroute

This kit comes with HSP's high-flow turbo mouthpiece, which allows you to reroute your factory PCV system. By removing the factory resonator box, you can prevent engine oil from gumming up your turbo and intake system (note that the PCV re-route is sold separately, see part number 003-1-HSP). You’ll also get our 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge. The race-proven 5-layer silicone boots ensure a snug fit you can count on!

Improved Hot Side Intercooler Tube

Did you know that the factory hot side intercooler tube measures only 2.25 inches in diameter? It also has a 90-degree boot at the intercooler that’s notorious for failing. With our design, we run the hot side tube directly into the intercooler, which leads to lower temperatures, better airflow, and added clearance in those tight spots. Plus, our bolted-together two-piece Y-bridge makes installation a breeze and guarantees a leak-free seal that keeps you on the road.

Up Pipes and Thermostat Housing

To help get exhaust gases out of your engine efficiently, this kit includes factory replacement 2-inch up pipes. Our up pipes are built with .120 inch wall tubing and the toughest bellows available, ensuring they’ll last as long as your truck. And for a touch of style, we’ve included a forward-facing thermostat housing with coolant return to keep your VGT turbo running cool. If your factory coolant tank is starting to show its age, don’t worry! We’ve also added a factory replacement coolant tank featuring an all-aluminum design and an integrated low coolant sensor.

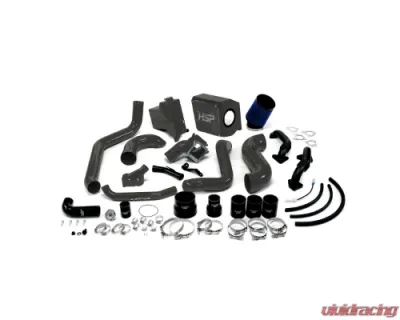

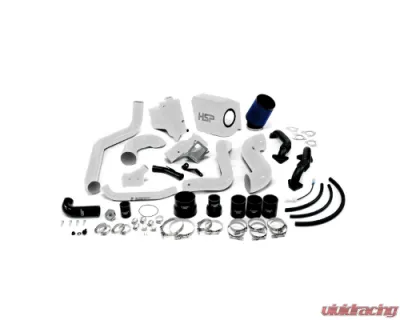

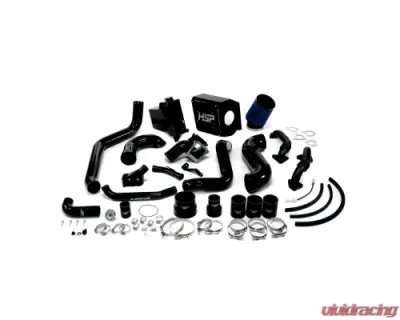

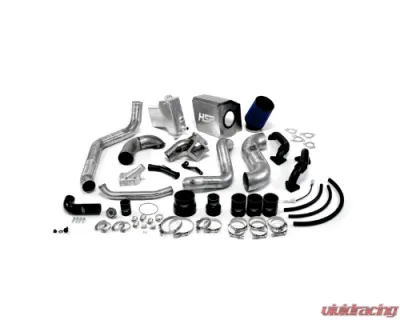

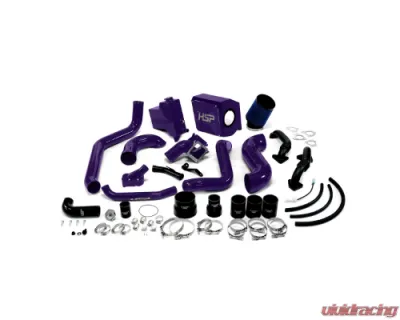

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 2x 5/8 inch Worm gear clamp
• 1x 1/8 inch NPT Brass plug
• 1x Bridge Neck O-ring
• 2x Bridge neck stud
• 2x Bridge neck 12-point nut
• 2x M4x.7x10mm bolt
• 3x 10-32 x 3/8 inch Button head screw
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer boot
• 1x 4 inch T-bolt clamp
• 1x 4.5 inch T-bolt clamp
• 1x 4.5 inch filter
• 1x Turbo inlet o-ring
• 1x radiator cap
• 5x 1/2 inch worm gear clamp
• 1x 1 inch worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket Cap bolt
• 1x M14x1.5 to 3/8 inch hose barb
• 1x M14x1.5 Metric Port plug
• 1x Metric Bonding seal 14mm
• 1x 1.75 inch x 3 inch Straight boot
• 1x 1.75 inch 90 degree Boot
• 4x 1 3/4 inch worm gear clamp
• 2x up-pipe gasket (turbo side)
• 2x up-pipe gasket (manifold side)

Compatibility

This kit is compatible with the following:

• LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
