Get Ready for a Performance Upgrade!

Are you on the hunt for a comprehensive kit that truly has it all? Look no further! Our kit features a mandrel-bent 4.5-inch LBZ style intake tube designed to maximize airflow, paired with HSP's signature heat shield box. This clever addition keeps unwanted hot air from entering the cold air intake, because every degree counts—did you know that for every 1-degree increase in intake air temperature, you could lose 3 horsepower?

Key Features

This kit is packed with all the essentials, including HSP's high flow turbo mouthpiece. This upgrade allows you to reroute your factory PCV system and remove the factory resonator box, which helps prevent engine oil from gumming up the turbo and intake system (note: PCV re-route sold separately, see 003-1-HSP).

We've also included our 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. You can count on a snug fit that won’t let you down. The factory hot side intercooler tube measures only 2.25 inches in diameter and has a 90-degree boot at the intercooler, which is known to fail.

Smart Design for Better Performance

With the new routing, you can avoid the common issue of the hot side intercooler tube rubbing against the power steering line, which can cause a boost leak. HSP's solution? A direct connection from the hot side tube to the intercooler, leading to cooler temperatures, improved airflow, and extra clearance in tight spaces.

Our 3-inch cold side tube ensures your engine gets all the air it craves. The bolted-together two-piece Y-bridge simplifies installation and guarantees a leak-free seal, so you won't find yourself stranded on the side of the road. To facilitate exhaust gas exit, this kit also includes factory replacement 2-inch up pipes, constructed from .120-inch wall tubing with the toughest bellows available to ensure they last as long as your truck.

Stylish and Functional Components

When it comes to aesthetics, we've got you covered with our forward-facing thermostat housing that includes a coolant return, helping to keep your VGT turbo running cool. If your factory coolant tank is looking a bit worse for wear, worry not! We’ve included a factory replacement coolant tank designed with an all-aluminum build and an integrated low coolant sensor to keep your engine bay looking sharp.

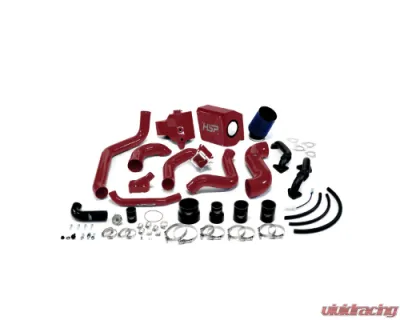

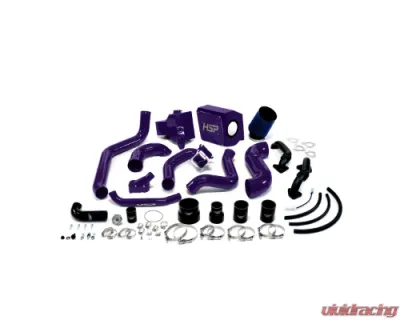

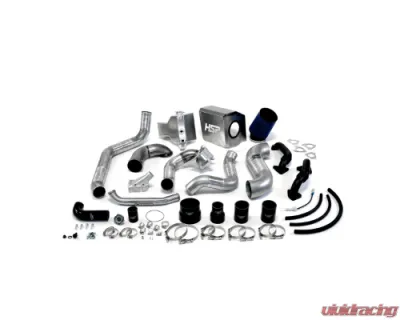

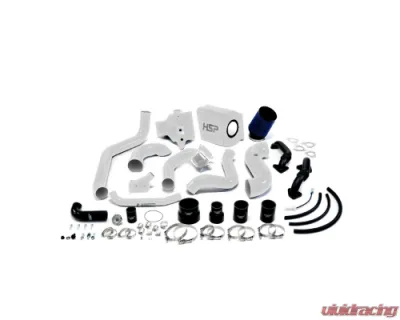

Included Components

• 2x 3 inch x 4 inch Straight Boot
• 5x 3 inch T-Bolt Clamps
• 1x 2.25 inch - 3 inch Reducer Boot
• 1x 2.25 inch T-bolt Clamp
• 1x Bridge Neck O-Ring
• 2x Bridge Neck Stud
• 2x Bridge neck 12-Point Nut
• 2x 5/8 inch Worm Gear clamps
• 1x 1/8 inch NPT Brass Plug
• 2x M4 x .7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screw
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch T-Bolt Clamp
• 1x 4.5 inch T-bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo Inlet O-ring
• 1x Radiator Cap
• 5x 1/2 inch Worm Gear Clamps
• 1x 1 inch Worm Gear Clamp
• 1x 1/2 inch NPT Float Switch
• 1x Low coolant sensor
• 1x Thermostat Housing O-ring
• 3x M6x1.0x35mm Flange Bolts
• 6x M6 Fender Washers
• 3x M6 Nylon Lock Nut
• 4x M8x1.25-25mm Socket Cap Bolt
• 4x M8x1.0-18mm Socket Cap Bolt
• 1x M14x1.5 to 3/8 inch Hose Barb
• 1x M14x1.5 Metric Port Plug
• 1x Metric Bonded Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 degree Boot
• 2x Up-Pipe Gasket (Turbo Side)
• 2x Up-Pipe Gasket (Manifold Side)
• 4x 1 3/4 inch Worm Gear Clamps
• 16 inch of Trim seal
• 1 1/2' of 3/8 inch heater hose

Compatibility

This kit is compatible with:

• LLY: 04.5-05 VIN Code 2

Wondering how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
