Revitalize Your Engine with Our Premium Kit

Ready to let your engine breathe a little easier? Our kit is designed just for that! With a mandrel bent 4 1/2 inch intake tube, you can expect impressive airflow gains. Plus, HSP's signature heat shield box keeps unwanted hot air from sneaking into the cold air intake. Did you know that a single degree increase in intake air temperature can lead to a 3hp loss? That's why we've got you covered!

High Flow Turbo Mouthpiece

Our high flow turbo mouthpiece gives you the power to reroute your factory PCV system and remove the factory resonator box. This means no more engine oil gumming up your turbo and intake system! (Just a heads up, the PCV re-route is sold separately—check out 003-1-HSP.)

Quality Components for Easy Installation

We’ve included 3-inch mandrel bent hot side and cold side tubes along with a user-friendly two-piece Y-bridge. Our race-proven 5 layer silicone boots ensure a snug fit that you can rely on. Unlike the factory hot side intercooler tube, which is only 2.25 inches in diameter and has a 90-degree boot at the intercooler that’s prone to failure, our design minimizes issues.

With our routing, you won’t have to worry about the hot side intercooler tube rubbing against the power steering line, which could lead to a boost leak. Instead, our solution directs the hot side tube straight into the intercooler, promoting lower temperatures, improved airflow, and extra clearance in tight spots.

Leak-Free Assurance

Our bolted together two-piece Y-bridge makes installation a breeze and guarantees a leak-free seal that keeps you on the road. We’ve also included a robust 2-inch passenger side up pipe featuring .120 inch tubing and the best bellow available. The factory up pipe is known to fail at the riser due to excessive heat and pressure, but not with our kit!

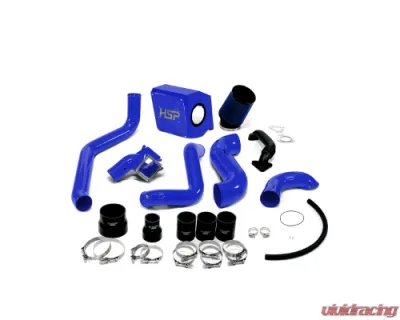

Included Components:

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 1x 5/8 inch Heater Hose
• 1x 1/8 inch NPT Brass plug
• 2x Bridge Neck O-ring
• 2x 5/8 inch Worm Gear clamp
• 2x Bridge neck stud
• 2x Bridge neck 12-point Nut
• 3x 10-32 x 3/8 inch Button head screws
• 4x 1/8 inch Aluminum rivet
• 1x 4 inch - 4.5 inch reducer boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch t-bolt clamp
• 1x 4.5 inch filter
• 1x turbo inlet o-ring
• 1x up-pipe gasket (turbo side)
• 1x up-pipe gasket (manifold side)
• 2 ft of heater hose
• 16 inch of trim seal

Compatibility:

LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
