Your All-in-One Performance Kit

Are you on the hunt for a comprehensive kit that truly has it all? Look no further! This performance kit boasts a mandrel-bent 4 1/2-inch intake tube designed to maximize airflow, paired with HSP's signature heat shield box that keeps unwanted hot air out of your cold air intake. Just a 1-degree rise in intake air temperature can lead to a 3hp loss, so keeping things cool is key!

Turbo Mouthpiece for Enhanced Functionality

This kit includes HSP's high-flow turbo mouthpiece, allowing you to reroute your factory PCV system and eliminate the factory resonator box. Say goodbye to engine oil gumming up your turbo and intake system!

Robust Tubing for Reliable Performance

Featuring 3-inch mandrel-bent hot side and cold side tubes, along with our max flow Y-bridge and turbo mouthpiece, this kit is built to last. If you own a 2011-2016 Duramax, you know the factory hot side intercooler tube is prone to failure. The two-piece design with crimped-on boots can’t handle the heat and pressure for long. Our kit replaces all those failure-prone pipes, using race-proven 5-layer silicone boots to ensure years of worry-free driving.

Exhaust Efficiency Made Easy

To help expel exhaust gases efficiently, we’ve included factory replacement 2-inch up pipes crafted from .120-inch wall tubing and the toughest bellows available. These will stand the test of time alongside your truck.

Stylish and Functional Coolant Tank

We’ve also added a factory replacement coolant tank that not only looks great but is made from all-aluminum and features an integrated low coolant sensor. To add a splash of color to your engine bay, our upper coolant tube is included, providing extra room for dual pumps and preventing any hose rubbing against the wheel.

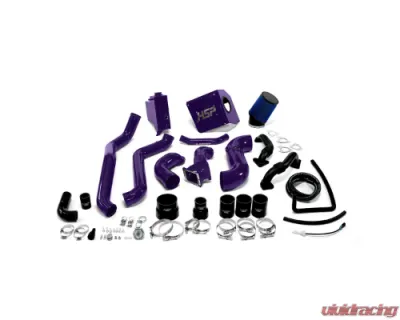

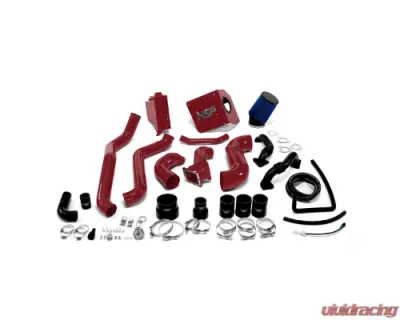

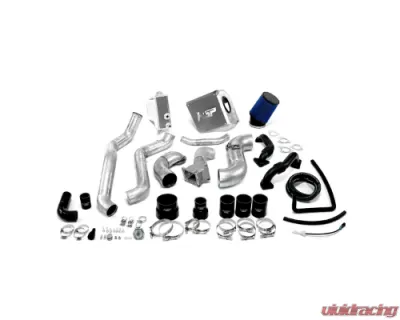

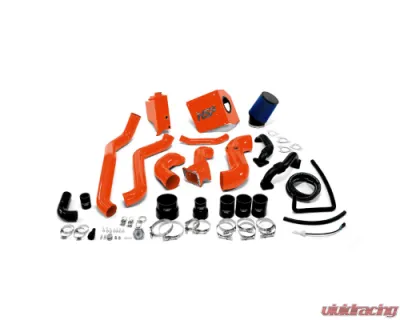

Included Components

• 3x 3 inch x 4 inch straight boot
• 7x 3 inch t-bolt clamp
• 1x 2.25 - 3 inch reducer boot
• 1x 2.25 inch t-bolt clamp
• 1x Duramax pre-made hose
• 1x M6x1.0x16mm flange bolt
• 4x M6x1.0x20mm flange bolt
• 2x M6x1.0x25mm flange bolt
• 4x 1/2 inch worm gear clamps
• 1x 5/8 inch worm gear clamp
• 2x 1/8 inch NPT brass plug
• 1x rear cover coolant plug o-ring
• 1x coolant plug o-ring
• 1x 3/4 inch to 5/8 inch heater hose connector
• 2x 3/8 inch coolant plug
• 4x M4x.7x10mm bolt
• 3x 10-32 x 3/8 inch button head screw
• 4x 1/8 inch aluminum rivet
• 1x 4 inch - 4.5 inch reducer boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch t-bolt clamp
• 1x 4.5 inch filter
• 1x Radiator cap
• 1x 1 inch worm gear clamp
• 1x low coolant sensor
• 1x 1/2 inch NPT float switch
• 1x 1.75 inch x 3 inch straight boot
• 2x up-pipe gasket (turbo side)
• 1x 1.75 inch 90 degree boot
• 2x up-pipe gasket (manifold side)
• 4x 1 3/4 inch worm gear clamps
• 5' of 5/8 inch PCV Hose
• 16 inch of Trim seal
• 14 inch of 1/2 inch heater hose

Compatibility

This kit is compatible with:

• LML: 11+ VIN Code 8

Wondering how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
