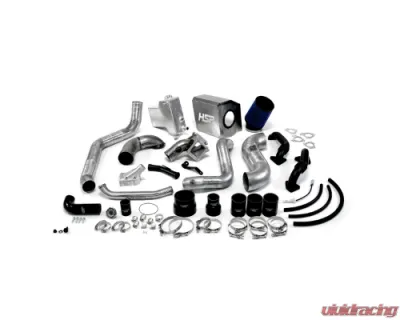

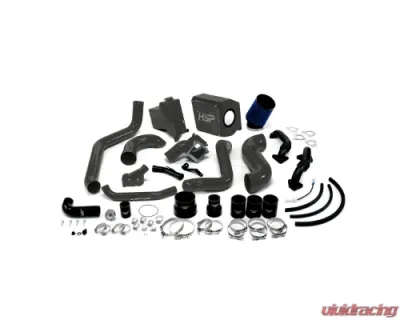

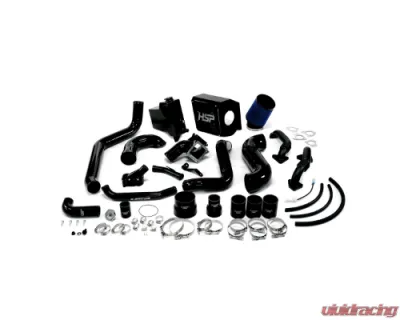

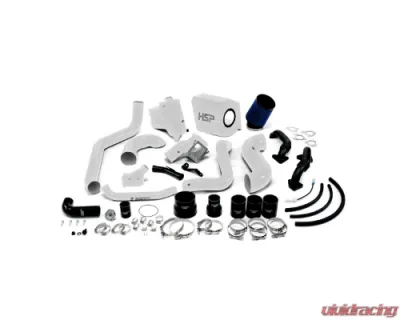

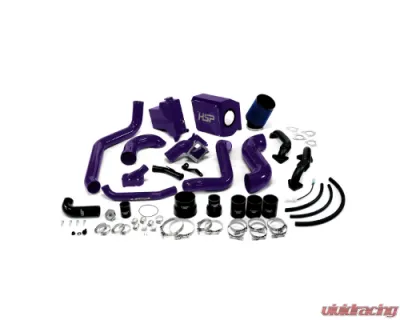

Complete Performance Kit for Your Truck

Are you on the hunt for a kit that truly has it all? Look no further! This kit features a mandrel-bent 4 1/2-inch intake tube designed to maximize airflow. Plus, with HSP's signature heat shield box, you can say goodbye to unwanted hot air entering your cold air intake. Remember, for every 1-degree increase in intake air temperature, you could lose up to 3 horsepower!

Turbo Mouthpiece & Engine Efficiency

This kit comes equipped with HSP's high-flow turbo mouthpiece, which allows you to reroute your factory PCV system while eliminating the factory resonator box. This change helps prevent engine oil from gumming up your turbo and intake system (please note that the PCV re-route is sold separately; check out part number 003-1-HSP). You’ll also receive our sturdy 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. This means a great fit that you can count on!

Upgraded Hot Side Intercooler Tube

Did you know that the factory hot side intercooler tube is only 2.25 inches in diameter? It also has a 90-degree boot at the intercooler, which is prone to failure. This setup can cause the hot side intercooler tube to rub against the power steering line, potentially leading to a boost leak. HSP's solution? We’ve designed our hot side tube to connect directly to the intercooler, resulting in lower temperatures, improved airflow, and added clearance in tight spots. Our two-piece Y-bridge makes installation a breeze, ensuring a leak-free seal that will keep you on the road.

Durable Up Pipes & Coolant Tank

To help with exhaust gas evacuation, this kit includes factory replacement 2-inch up pipes made from .120-inch wall tubing, featuring the toughest bellows on the market for maximum durability. For stylish functionality, we’ve included a forward-facing thermostat housing with a coolant return to keep your VGT turbo cool. Is your factory coolant tank starting to look a bit worn? Not to worry—we’ve got you covered with a factory replacement coolant tank that not only looks great but is also made from all-aluminum and comes with a built-in low coolant sensor.

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 2x 5/8 inch Worm gear clamp
• 1x 1/8 inch NPT Brass plug
• 1x Bridge Neck O-ring
• 2x Bridge neck stud
• 2x Bridge neck 12-point nut
• 2x M4x.7x10mm bolt
• 3x 10-32 x 3/8 inch Button head screw
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer boot
• 1x 4 inch T-bolt clamp
• 1x 4.5 inch T-bolt clamp
• 1x 4.5 inch filter
• 1x Turbo inlet o-ring
• 1x radiator cap
• 5x 1/2 inch worm gear clamp
• 1x 1 inch worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket Cap bolt
• 1x M14x1.5 to 3/8 inch hose barb
• 1x M14x1.5 Metric Port plug
• 1x Metric Bonding seal 14mm
• 1x 1.75 inch x 3 inch Straight boot
• 1x 1.75 inch 90 degree Boot
• 4x 1 3/4 inch worm gear clamp
• 2x up-pipe gasket (turbo side)
• 2x up-pipe gasket (manifold side)

Compatibility

This kit is compatible with:

• LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
