Upgrade Your Ride with the Ultimate Kit

Are you on the hunt for a kit that truly has it all? Look no further! Our kit features a mandrel-bent 4.5-inch intake tube designed for maximum airflow gains. Plus, with HSP's signature heat shield box, you can say goodbye to unwanted hot air sneaking into your cold air intake. Remember, for every 1-degree increase in intake air temperature, you could lose up to 3hp!

High-Performance Turbo Mouthpiece

This kit also comes with HSP's high flow turbo mouthpiece, which allows you to reroute your factory PCV system and remove the factory resonator box. This helps eliminate the issue of engine oil gumming up your turbo and intake system (PCV re-route sold separately, see 003-1-HSP).

Easy Installation with Reliable Components

Included are our 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge. The race-proven 5-layer silicone boots ensure a snug fit that you can count on. Unlike the factory hot side intercooler tube, which has a mere 2.25 inches in diameter and a 90-degree boot at the intercooler that’s prone to failure, our design provides a more reliable solution.

By routing the hot side tube directly into the intercooler, we not only lower temperatures but also improve airflow while providing extra clearance in tight spots. Our bolted together two-piece Y-bridge guarantees a straightforward installation and a leak-free seal, keeping you safe on the road.

Durable Up Pipes and Stylish Additions

To help get those exhaust gases out of your engine, we’ve included factory replacement 2-inch up pipes. These up pipes are crafted using .120-inch wall tubing and feature the toughest bellows on the market, ensuring they last as long as your truck.

For a touch of style, we’ve added a forward-facing thermostat housing with a coolant return to keep your VGT turbo running cool. Is your factory coolant tank looking a bit worn? Not to worry! Our kit includes a factory replacement coolant tank, made from all-aluminum and featuring an integrated low coolant sensor to keep your engine bay looking sharp.

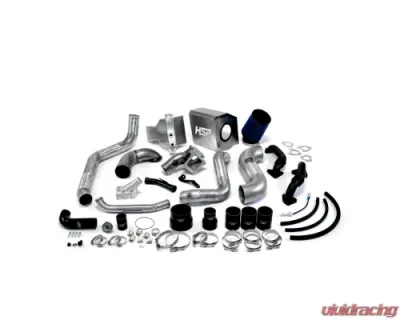

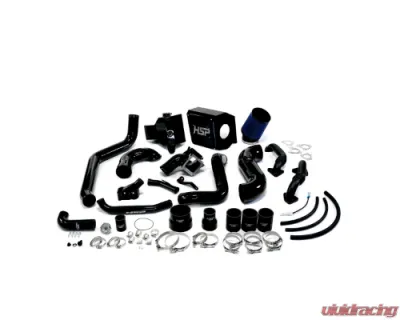

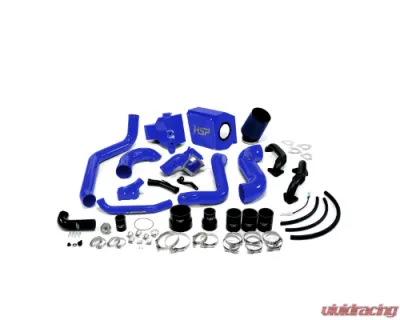

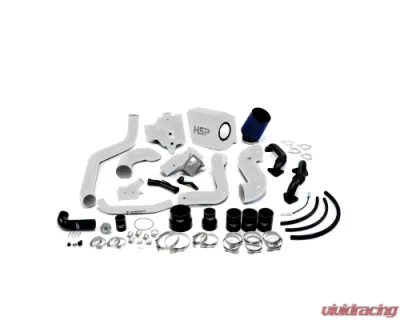

What’s Included in the Kit

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 T-bolt Clamp
• 1x 1/8 inch NPT Brass Plug
• 1x Bridge neck O-ring
• 2x 5/8 inch Worm Gear Clamp
• 2x Bridge neck stud
• 2x Bridge Neck 12-point Nut
• 2x M4x.7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screws
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch T-bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo inlet o-ring
• 1x Radiator cap
• 5x 1/2 inch Worm gear clamp
• 1x 1 inch Worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low Coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket cap bolt
• 1x M14x1.5 to 3/8 inch Hose Barb
• 1x M14x1.5 Metric Port Plug
• 1x Metric Bonded Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 degree Boot
• 4x 1 3/4 inch Worm Gear clamps
• 2x Up-Pipe Gaskets (Manifold Side)
• 2x Up-Pipe Gaskets (Turbo side)

Compatibility

This kit is compatible with:

• LBZ: 06-07 VIN Code 2 or D

Wondering how to identify your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
