Introducing the Ultimate Airflow Kit

This kit is designed to help both you and your engine breathe a little easier. With a mandrel bent 4 1/2 inch intake tube, you can expect significant airflow improvements. Plus, HSP's signature heat shield box keeps unwanted hot air from sneaking into your cold air intake. Remember, for every 1-degree rise in intake air temperature, you could lose about 3 horsepower!

Key Features

One standout feature of this kit is HSP's high flow turbo mouthpiece. This allows you to reroute your factory PCV system and remove the factory resonator box, which helps prevent engine oil from gumming up your turbo and intake system. (Just a heads-up, the PCV re-route is sold separately; check out part number 003-1-HSP.)

We’ve also included our 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge. With race-proven 5-layer silicone boots, you can trust that you’re getting a perfect fit that won’t let you down. You might be aware that the factory hot side intercooler tube is only 2.25 inches in diameter and has a 90-degree boot at the intercooler, which can be prone to failure.

Smart Design for Better Performance

With the routing in this kit, you won’t have to worry about the hot side intercooler tube rubbing against the power steering line, which can lead to a boost leak. HSP's solution? A direct connection of the hot side tube into the intercooler, resulting in lower temperatures, improved airflow, and extra clearance in tight spots.

Our bolted together two-piece Y-bridge is designed to make installation a breeze, ensuring a leak-free seal that keeps you on the road where you belong. Plus, we’ve included one of our 2-inch passenger side up pipes, featuring .120 inch tubing and the best bellow on the market. The factory up-pipe often fails at the riser due to excessive heat and pressure, but not with ours!

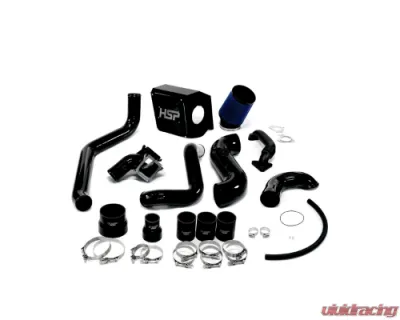

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 1x 5/8 inch Heater Hose
• 1x 1/8 inch NPT Brass plug
• 2x Bridge Neck O-ring
• 2x 5/8 inch Worm Gear clamp
• 2x Bridge neck stud
• 2x Bridge neck 12-point Nut
• 3x 10-32 x 3/8 inch Button head screws
• 4x 1/8 inch Aluminum rivet
• 1x 4 inch - 4.5 inch reducer boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch t-bolt clamp
• 1x 4.5 inch filter
• 1x turbo inlet o-ring
• 1x up-pipe gasket (turbo side)
• 1x up-pipe gasket (manifold side)
• 2 ft of heater hose
• 16 inch of trim seal

Compatibility

This kit is compatible with:

LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
