Revitalize Your Engine with HSP's Intake Kit

This kit is designed to help both you and your engine breathe a little easier. With a mandrel-bent 4.5-inch intake tube, you’ll experience significant airflow improvements. Plus, HSP's signature heat shield box keeps unwanted hot air from sneaking into the cold air intake. Keep in mind, for every 1-degree rise in intake air temperature, you could lose about 3 horsepower.

Turbo Mouthpiece Innovation

Our turbo mouthpiece gives you the flexibility to reroute your factory PCV system while removing the factory resonator box. This means no more unwanted engine oil gumming up your turbo and intake system (PCV re-route sold separately, see 003-1-HSP). You’ll also receive our 3-inch mandrel bent hot side and cold side tubes, accompanied by an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. You can count on a perfect fit that won’t let you down!

Say Goodbye to Common Issues

The factory hot side intercooler tube measures just 2.25 inches in diameter and has a 90-degree boot at the intercooler, which is often prone to failure. This setup can lead to the hot side intercooler tube rubbing against the power steering line, potentially creating a boost leak. HSP has the perfect solution: our design routes the hot side tube directly into the intercooler, resulting in lower temperatures, improved airflow, and better clearance in tight spaces.

Easy Installation with a Reliable Seal

Our bolted-together two-piece Y-bridge ensures an effortless installation and creates a leak-free seal, so you won't find yourself stranded on the side of the road. To top it off, we’ve included one of our 2-inch passenger side up pipes, crafted with .120 inch tubing and the best bellow on the market. The factory up-pipe often fails at the riser due to excessive heat and pressure, but we’ve got you covered.

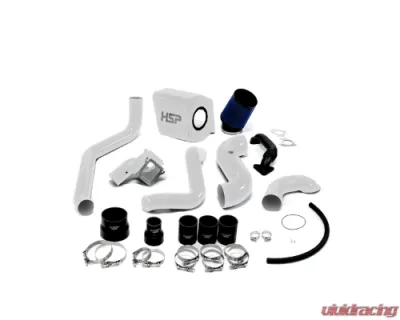

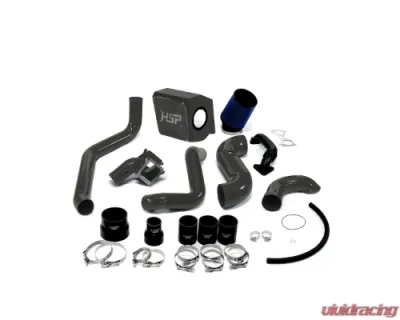

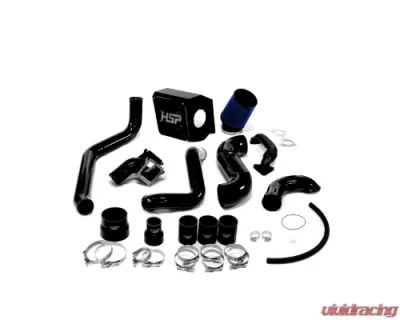

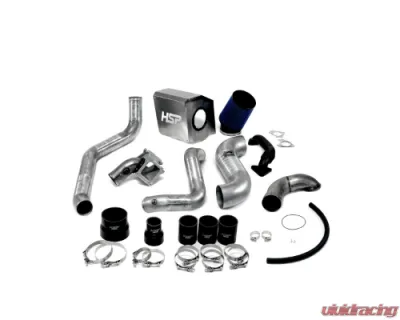

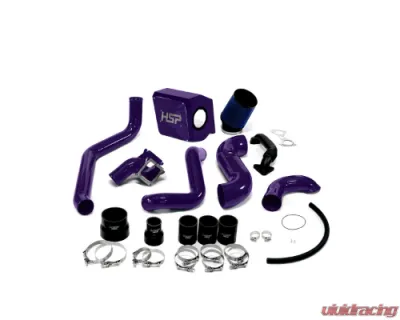

Included Components

• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer Boot
• 1x 2.25 inch T-Bolt Clamp
• 3x 3 inch x 4 inch Straight Boots
• 1x 1/8 inch NPT Brass Plug
• 1x Bridge Neck O-Ring
• 2x 5/8 inch Worm Gear Clamps
• 2x Bridge Neck Stud
• 2x Bridge Neck 12-Point Nut
• 2x M4x.7x10mm Bolt
• 3x 10-32 x 3/8 inch button head screws
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo inlet o-ring
• 1x Up-pipe Gasket (Turbo side)
• 1x Up-pipe Gasket (Manifold Side)
• 16 inch of Trim Seal
• 2 Feet of 5/8 inch Heater Hose

Compatibility

Compatible with:

• LBZ: 06-07 VIN Code 2 or D

Wondering how to find your VIN Code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
