Complete Performance Kit for Your Truck

Are you on the hunt for a kit that truly has it all? Look no further! Our performance kit boasts a mandrel-bent 4 1/2 inch intake tube designed to maximize airflow, paired with HSP's signature heat shield box. This clever design keeps unwanted hot air from sneaking into your cold air intake. Just a 1-degree rise in intake air temperature can lead to a 3hp loss—so we’ve got you covered!

Key Features You'll Love

This kit doesn’t stop there! It includes HSP's high-flow turbo mouthpiece, which allows you to reroute your factory PCV system while removing the factory resonator box. This helps prevent engine oil from gumming up your turbo and intake system (please note, the PCV re-route is sold separately, see part number 003-1-HSP).

Along with that, you’ll receive our 3-inch mandrel-bent hot side and cold side tubes, plus an easy-to-install two-piece Y-bridge. Our race-proven 5-layer silicone boots ensure a snug fit that you can rely on!

Say Goodbye to Common Issues

Did you know that the factory hot side intercooler tube is just 2.25 inches in diameter? It also has a 90-degree boot at the intercooler that can be prone to failure. This setup can lead to rubbing against the power steering line, which may cause a hole in the tube and result in a boost leak. But don’t worry—HSP has the solution!

We’ve designed our hot side tube to connect directly into the intercooler, resulting in lower temperatures, improved airflow, and extra clearance in tight spots. Our bolted-together two-piece Y-bridge makes installation a breeze and guarantees a leak-free seal, keeping you on the road without worries.

Additional Components for a Complete Upgrade

To help your engine breathe better, this kit includes factory replacement 2-inch up pipes. Our up pipes are built with .120 inch wall tubing and feature the toughest bellows available, ensuring they’ll last as long as your truck does. Plus, we’ve included a forward-facing thermostat housing with a coolant return to keep your VGT turbo running cool.

If your factory coolant tank is starting to show signs of wear, we’ve got that covered too! Our all-aluminum replacement coolant tank not only looks great but also includes a built-in low coolant sensor.

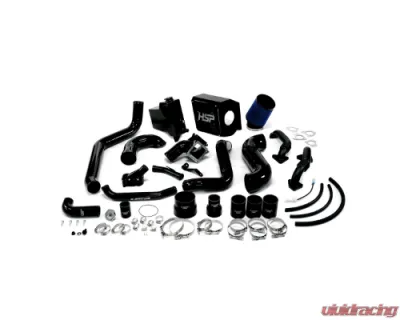

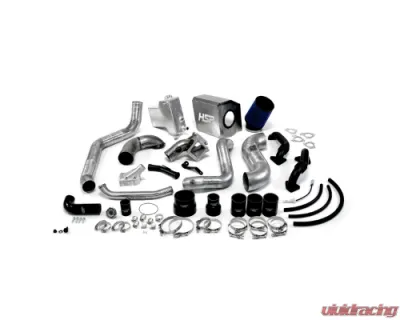

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 inch T-bolt clamp
• 2x 5/8 inch Worm gear clamp
• 1x 1/8 inch NPT Brass plug
• 1x Bridge Neck O-ring
• 2x Bridge neck stud
• 2x Bridge neck 12-point nut
• 2x M4x.7x10mm bolt
• 3x 10-32 x 3/8 inch Button head screw
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer boot
• 1x 4 inch T-bolt clamp
• 1x 4.5 inch T-bolt clamp
• 1x 4.5 inch filter
• 1x Turbo inlet o-ring
• 1x radiator cap
• 5x 1/2 inch worm gear clamp
• 1x 1 inch worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket Cap bolt
• 1x M14x1.5 to 3/8 inch hose barb
• 1x M14x1.5 Metric Port plug
• 1x Metric Bonding seal 14mm
• 1x 1.75 inch x 3 inch Straight boot
• 1x 1.75 inch 90 degree Boot
• 4x 1 3/4 inch worm gear clamp
• 2x up-pipe gasket (turbo side)
• 2x up-pipe gasket (manifold side)

Compatibility

This kit is compatible with:

LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
