Introducing the Ultimate Performance Kit

Are you on the hunt for a comprehensive kit that truly has it all? Look no further! Our performance kit features a mandrel-bent 4.5-inch intake tube designed to maximize airflow, paired with HSP's signature heat shield box that effectively keeps unwanted hot air from sneaking into your cold air intake. Just a 1-degree rise in intake air temperature can lead to a loss of 3 horsepower, so we’ve got you covered!

Key Features

This kit includes HSP's high-flow turbo mouthpiece, which allows you to reroute your factory PCV system and remove the factory resonator box. This upgrade helps prevent engine oil from gumming up your turbo and intake system (PCV re-route sold separately, see 003-1-HSP). Plus, you’ll receive our 3-inch mandrel-bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. You can trust that this setup will fit perfectly and stand the test of time.

Smart Design for Better Performance

The factory hot side intercooler tube measures only 2.25 inches in diameter and has a 90-degree boot at the intercooler, which is known to fail. Our design routes the hot side tube directly into the intercooler, reducing temperatures, improving airflow, and providing extra clearance in tight spots. No more worrying about the hot side intercooler tube rubbing against the power steering line and creating boost leaks!

Easy Installation

Our two-piece Y-bridge bolts together seamlessly, making installation a breeze and ensuring a leak-free seal that won’t leave you stranded. To help expel exhaust gases efficiently, this kit includes factory replacement 2-inch up pipes. These up pipes are constructed with .120-inch wall tubing and the toughest bellows on the market, ensuring they’ll last as long as your truck.

Stylish and Functional

We haven’t forgotten about aesthetics! Our forward-facing thermostat housing with coolant return helps keep your VGT turbo running cool. If your factory coolant tank is looking a bit worn, we’ve included a replacement tank that combines style and function. Made from all-aluminum, it features an integrated low coolant sensor to keep everything in check.

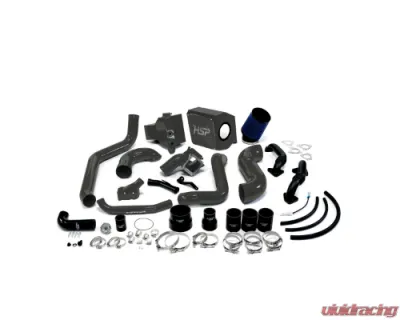

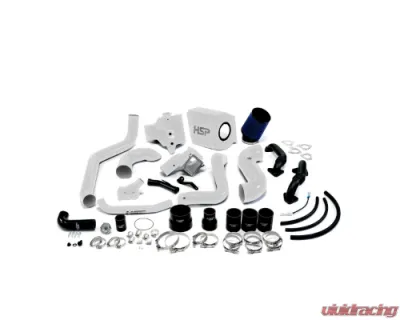

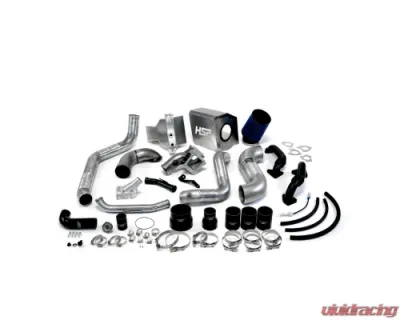

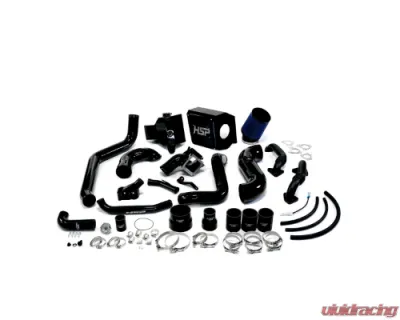

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 T-bolt Clamp
• 1x 1/8 inch NPT Brass Plug
• 1x Bridge neck O-ring
• 2x 5/8 inch Worm Gear Clamp
• 2x Bridge neck stud
• 2x Bridge Neck 12-point Nut
• 2x M4x.7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screws
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch T-bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo inlet o-ring
• 1x Radiator cap
• 5x 1/2 inch Worm gear clamp
• 1x 1 inch Worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low Coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket cap bolt
• 1x M14x1.5 to 3/8 inch Hose Barb
• 1x M14x1.5 Metric Port Plug
• 1x Metric Bonded Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 degree Boot
• 4x 1 3/4 inch Worm Gear clamps
• 2x Up-Pipe Gaskets (Manifold Side)
• 2x Up-Pipe Gaskets (Turbo side)

Compatibility

This kit is compatible with:

• LBZ: 06-07 VIN Code 2 or D

Not sure how to find your VIN code? The engine code is indicated by the 8th character of the VIN number, while the 10th character signifies the year of your truck.
