Revitalize Your Engine's Breathing

Get ready to let your engine breathe a little easier with this fantastic kit! Featuring a mandrel bent 4 1/2 inch intake tube, you'll experience significant airflow gains. Plus, HSP's signature heat shield box keeps unwanted hot air from sneaking into your cold air intake. Remember, for every 1-degree increase in intake air temperature, you could lose up to 3 horsepower!

Turbo Mouthpiece Benefits

With HSP's high flow turbo mouthpiece, you can reroute your factory PCV system and ditch the factory resonator box. This change helps prevent engine oil from gumming up your turbo and intake system (just a heads up, the PCV re-route is sold separately—check out 003-1-HSP for that!).

Easy Installation with Premium Components

This kit includes our 3-inch mandrel bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge. You can trust the race-proven 5-layer silicone boots to provide a snug fit that won't let you down. Unlike the factory hot side intercooler tube, which is only 2.25 inches in diameter and has a 90-degree boot prone to failure, our design ensures durability and reliability.

Addressing Common Issues

One common issue with the factory setup is the hot side intercooler tube rubbing against the power steering line. This can lead to a hole in the tube and a boost leak. HSP's solution? A direct route for the hot side tube into the intercooler, resulting in lower temperatures, improved airflow, and extra clearance in those tight spots.

Leak-Free Installation

Our bolted-together two-piece Y-bridge makes installation a breeze, ensuring a leak-free seal that keeps you on the road where you belong. Plus, we’ve added a 2-inch passenger side up pipe featuring .120 inch tubing and the best bellow on the market. The factory up-pipe often fails at the riser due to excessive heat and pressure, but not with our kit!

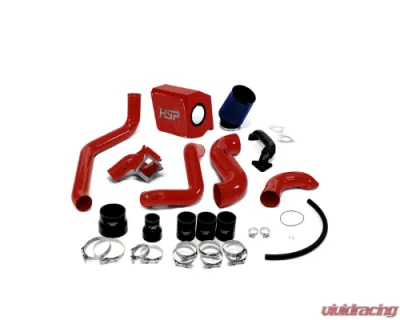

Included Components

• 3 x 3 inch x 4 inch Straight boot
• 7 x 3 inch T-bolt Clamp
• 1 x 2.25 inch - 3 inch Reducer boot
• 1 x 2.25 inch T-bolt clamp
• 1 x 5/8 inch Heater Hose
• 1 x 1/8 inch NPT Brass plug
• 2 x Bridge Neck O-ring
• 2 x 5/8 inch Worm Gear clamp
• 2 x Bridge neck stud
• 2 x Bridge neck 12-point Nut
• 3 x 10-32 x 3/8 inch Button head screws
• 4 x 1/8 inch Aluminum rivet
• 1 x 4 inch - 4.5 inch reducer boot
• 1 x 4 inch t-bolt clamp
• 1 x 4.5 inch t-bolt clamp
• 1 x 4.5 inch filter
• 1 x turbo inlet o-ring
• 1 x up-pipe gasket (turbo side)
• 1 x up-pipe gasket (manifold side)
• 2 ft of heater hose
• 16 inch of trim seal

Compatibility

This kit is compatible with:

• LMM: 07.5-10 VIN Code 6

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
