Revitalize Your Engine with Our Premium Intake Kit

Ready to give your engine a breath of fresh air? Our kit is designed to help you and your engine breathe easy! With a mandrel-bent 4.5-inch intake tube, you’ll experience significant airflow gains. Plus, HSP's signature heat shield box works tirelessly to keep unwanted hot air from sneaking into your cold air intake. Did you know that for every 1-degree increase in intake air temperature, you could lose about 3hp? That's why this kit is a game-changer!

Turbo Mouthpiece for Enhanced Performance

Our high-flow turbo mouthpiece is a standout feature, allowing you to reroute your factory PCV system while removing the factory resonator box. This means no more unwanted engine oil gumming up your turbo and intake system (just a heads up, the PCV re-route is sold separately—check out 003-1-HSP). You’ll also receive our 3-inch mandrel-bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge. With race-proven 5-layer silicone boots, you can count on a snug fit that won’t let you down!

Upgrade Your Intercooler Tube

Let’s talk about the factory hot side intercooler tube. It’s only 2.25 inches in diameter and has a 90-degree boot at the intercooler, which can be a recipe for failure. Plus, there’s a risk of it rubbing against the power steering line, potentially causing a boost leak. Our solution? We’ve designed the hot side tube to run directly into the intercooler, resulting in lower temperatures, improved airflow, and extra clearance in tight spots.

Easy Installation

Worried about installation? Don’t be! Our bolted-together two-piece Y-bridge makes it a breeze and ensures a leak-free seal, keeping you off the side of the road. We’ve also included a robust 2-inch passenger side up-pipe, featuring .120-inch tubing and the best bellow on the market. The factory up-pipe is notorious for failing at the riser due to excessive heat and pressure, but we’ve got you covered!

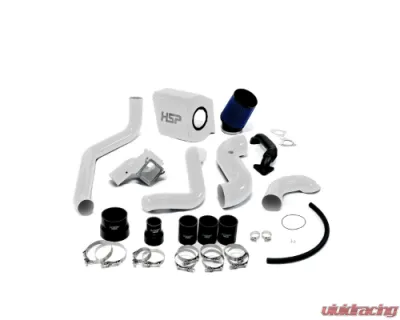

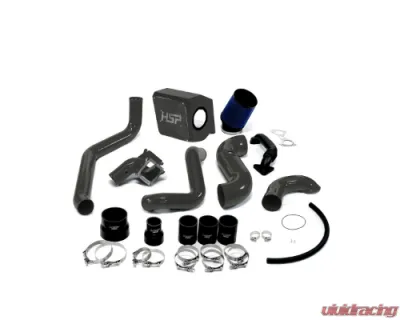

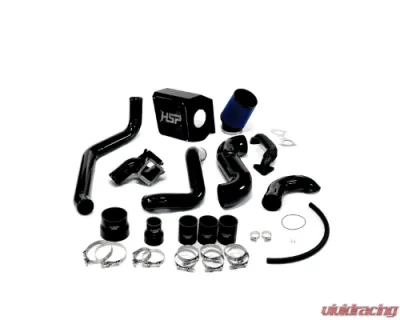

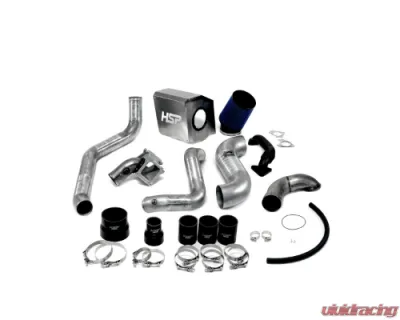

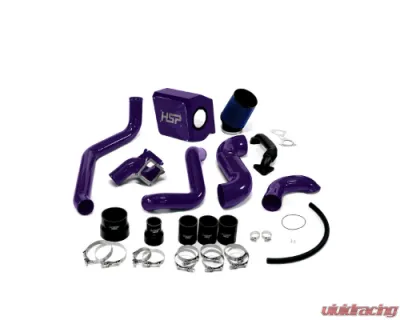

Included Components

• 7x 3-inch T-bolt Clamps
• 1x 2.25-inch - 3-inch Reducer Boot
• 1x 2.25-inch T-Bolt Clamp
• 3x 3-inch x 4-inch Straight Boots
• 1x 1/8-inch NPT Brass Plug
• 1x Bridge Neck O-Ring
• 2x 5/8-inch Worm Gear Clamps
• 2x Bridge Neck Studs
• 2x Bridge Neck 12-Point Nuts
• 2x M4x.7x10mm Bolts
• 3x 10-32 x 3/8-inch Button Head Screws
• 4x 1/8-inch Aluminum Rivets
• 1x 4-inch - 4.5-inch Reducer Boot
• 1x 4-inch T-Bolt Clamp
• 1x 4.5-inch T-Bolt Clamp
• 1x 4.5-inch Filter
• 1x Turbo Inlet O-Ring
• 1x Up-Pipe Gasket (Turbo Side)
• 1x Up-Pipe Gasket (Manifold Side)
• 16 inches of Trim Seal
• 2 Feet of 5/8-inch Heater Hose

Compatibility

This kit is compatible with:

• LBZ: 06-07 VIN Code 2 or D

Curious about your VIN code? The engine code is determined by the 8th character of your VIN number, while the 10th character indicates the year of your truck.
