Your All-in-One Performance Kit

Are you on the hunt for a complete kit that truly has it all? Look no further! This kit features a mandrel-bent 4.5-inch intake tube designed to maximize airflow, paired with HSP's signature heat shield box that keeps unwanted hot air from entering your cold air intake. Did you know that for every 1-degree increase in intake air temperature, you could lose 3 horsepower? That's why this kit is engineered to keep your engine cool and efficient.

High Flow Turbo Mouthpiece

One of the standout features is HSP's high flow turbo mouthpiece. This clever addition allows you to reroute your factory PCV system and remove the factory resonator box, which helps prevent engine oil from gumming up your turbo and intake system. (Just a heads up, the PCV re-route is sold separately, see part number 003-1-HSP.)

Quality Tubing for Better Performance

Included in the kit are our 3-inch mandrel-bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge. You can trust our race-proven 5-layer silicone boots to provide a perfect fit that stands the test of time. Unlike the factory hot side intercooler tube, which is only 2.25 inches in diameter and prone to failure at the 90-degree boot, our design eliminates potential issues.

Smart Routing for Enhanced Clearance

Our routing solution minimizes the risk of the hot side intercooler tube rubbing against the power steering line, which can lead to a boost leak. By directing the hot side tube straight into the intercooler, you’ll enjoy lower temperatures, improved airflow, and better clearance in tight spots.

Easy Installation and Reliable Performance

Worried about installation? Our bolted-together two-piece Y-bridge makes it a breeze, ensuring a leak-free seal that keeps you on the road. To help expel exhaust gases efficiently, this kit also includes factory replacement 2-inch up pipes. Made with .120-inch wall tubing and the toughest bellows on the market, these up pipes are built to last as long as your truck.

Stylish and Functional Components

We didn’t forget about style! This kit comes with a forward-facing thermostat housing that features a coolant return to keep your VGT turbo running cool. Is your factory coolant tank looking a bit worn? We’ve included a replacement that not only functions well but also enhances the look of your engine bay. Our all-aluminum coolant tank comes with a low coolant sensor for added peace of mind.

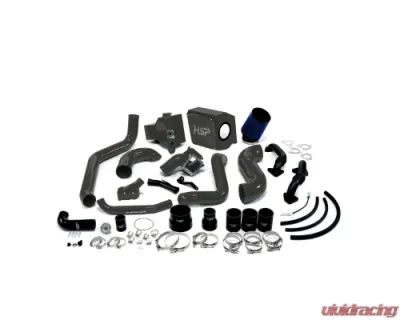

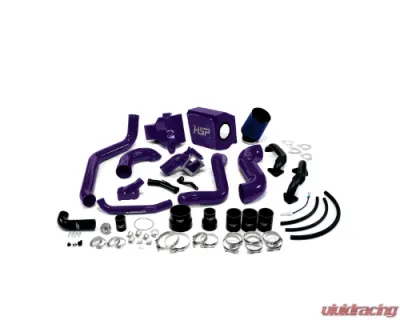

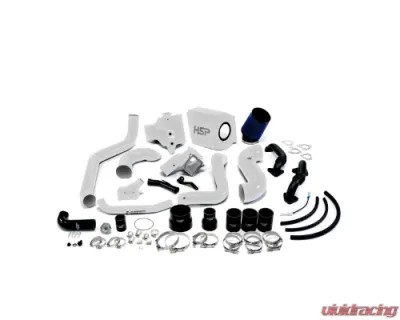

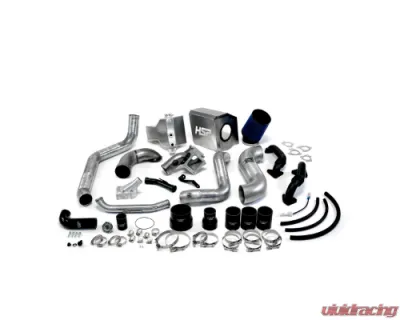

Included Components

• 3x 3 inch x 4 inch Straight boot
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer boot
• 1x 2.25 T-bolt Clamp
• 1x 1/8 inch NPT Brass Plug
• 1x Bridge neck O-ring
• 2x 5/8 inch Worm Gear Clamp
• 2x Bridge neck stud
• 2x Bridge Neck 12-point Nut
• 2x M4x.7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screws
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch t-bolt clamp
• 1x 4.5 inch T-bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo inlet o-ring
• 1x Radiator cap
• 5x 1/2 inch Worm gear clamp
• 1x 1 inch Worm gear clamp
• 1x 1/2 inch NPT float switch
• 1x Low Coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket cap bolt
• 1x M14x1.5 to 3/8 inch Hose Barb
• 1x M14x1.5 Metric Port Plug
• 1x Metric Bonded Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 degree Boot
• 4x 1 3/4 inch Worm Gear clamps
• 2x Up-Pipe Gaskets (Manifold Side)
• 2x Up-Pipe Gaskets (Turbo side)

Compatibility

This kit is compatible with:

• LBZ: 06-07 VIN Code 2 or D

Wondering how to find your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
