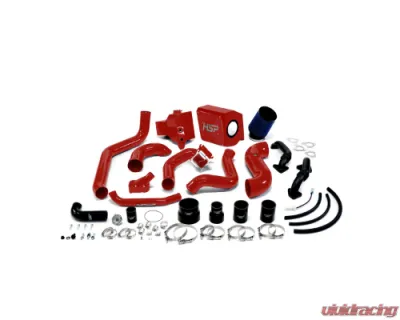

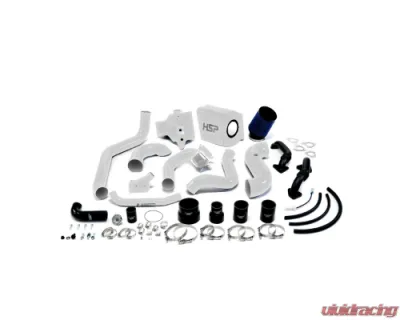

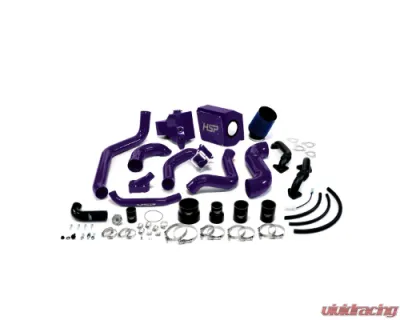

All-in-One Performance Kit

Are you on the hunt for a kit that truly has it all? Look no further! Our kit features a mandrel-bent 4.5-inch LBZ style intake tube designed for incredible airflow gains. Plus, with HSP's signature heat shield box, you can say goodbye to unwanted hot air entering your cold air intake. Remember, for every 1-degree increase in intake air temperature, you could lose about 3hp—so keeping things cool is key!

Turbo Mouthpiece & Engine Protection

This kit comes equipped with HSP's high-flow turbo mouthpiece, which allows you to reroute your factory PCV system and ditch the factory resonator box. This helps prevent engine oil from gumming up your turbo and intake system (PCV re-route sold separately, see 003-1-HSP). You’ll also receive our 3-inch mandrel-bent hot side and cold side tubes, along with an easy-to-install two-piece Y-bridge featuring race-proven 5-layer silicone boots. This means you’ll enjoy a perfect fit that you can count on.

Improved Routing & Performance

We know that the factory hot side intercooler tube is only 2.25 inches in diameter and has a 90-degree boot at the intercooler, which can lead to failures. Our solution? A hot side tube that connects directly to the intercooler. This design not only helps lower temperatures but also improves airflow and provides extra clearance in those tight spots.

Cold Side Tube & Installation

Our 3-inch cold side tube ensures your engine gets all the air it craves. The bolted-together two-piece Y-bridge makes installation a breeze and guarantees a leak-free seal, so you won't find yourself stranded on the side of the road. To help your engine breathe easier, we’ve included factory replacement 2-inch up pipes made with .120 inch wall tubing and the toughest bellows available, ensuring they’ll last as long as your truck.

Stylish & Functional Components

When it comes to style, we've got you covered with our forward-facing thermostat housing featuring a coolant return to keep your VGT turbo running cool. If your factory coolant tank is starting to show its age, don’t worry—we’ve included a factory replacement coolant tank that not only looks great but is also made from all-aluminum with an integrated low coolant sensor.

Included Components

• 2x 3 inch x 4 inch Straight Boot
• 5x 3 inch T-Bolt Clamps
• 1x 2.25 inch - 3 inch Reducer Boot
• 1x 2.25 inch T-bolt Clamp
• 1x Bridge Neck O-Ring
• 2x Bridge Neck Stud
• 2x Bridge Neck 12-Point Nut
• 2x 5/8 inch Worm Gear Clamps
• 1x 1/8 inch NPT Brass Plug
• 2x M4 x .7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screw
• 4x 1/8 inch Aluminum Rivet
• 1x 4 inch - 4.5 inch Reducer Boot
• 1x 4 inch T-Bolt Clamp
• 1x 4.5 inch T-bolt Clamp
• 1x 4.5 inch Filter
• 1x Turbo Inlet O-ring
• 1x Radiator Cap
• 5x 1/2 inch Worm Gear Clamps
• 1x 1 inch Worm Gear Clamp
• 1x 1/2 inch NPT Float Switch
• 1x Low Coolant Sensor
• 1x Thermostat Housing O-ring
• 3x M6x1.0x35mm Flange Bolts
• 6x M6 Fender Washers
• 3x M6 Nylon Lock Nut
• 4x M8x1.25-25mm Socket Cap Bolt
• 4x M8x1.0-18mm Socket Cap Bolt
• 1x M14x1.5 to 3/8 inch Hose Barb
• 1x M14x1.5 Metric Port Plug
• 1x Metric Bonded Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 Degree Boot
• 2x Up-Pipe Gasket (Turbo Side)
• 2x Up-Pipe Gasket (Manifold Side)
• 4x 1 3/4 inch Worm Gear Clamps
• 16 inch of Trim Seal
• 1 1/2' of 3/8 inch Heater Hose

Compatibility

This kit is compatible with:

• LLY: 04.5-05 VIN Code 2

Wondering how to identify your VIN code? The engine code is determined by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
