All-in-One Performance Kit for Your Duramax

Are you on the hunt for a comprehensive kit that truly has it all? Look no further! Our HSP kit features a mandrel-bent 4-inch intake tube designed to maximize airflow, ensuring your engine breathes easy. Plus, our signature heat shield box keeps unwanted hot air from sneaking into the cold air intake. Did you know that for every 1-degree increase in intake air temperature, you could lose 3 horsepower? Our kit helps you keep those numbers in check!

High-Performance Turbo Mouthpiece

This kit includes HSP's high-flow turbo mouthpiece, which outperforms any ported mouthpiece available on the market. You’ll also receive HSP's hot side and cold side intercooler piping, making this a complete solution for your Duramax.

Factory Intercooler Tubing Challenges

If you own a 2001-2004 Duramax truck, you know the factory intercooler tubing can be quite restrictive and prone to failure. With a narrow 2.25-inch diameter and a 90-degree boot at the intercooler that often gives out, you might face issues like rubbing against the power steering line, leading to annoying boost leaks.

Our Innovative Solution

We’ve tackled this problem head-on by designing the hot side tube to connect directly to the intercooler, utilizing race-proven 5-layer silicone boots. This results in lower temperatures, improved airflow, and better clearance in those tight spots. To help your engine breathe easier, our kit also includes factory replacement 2-inch up pipes.

Durable Up Pipes

Our up pipes feature .120-inch wall tubing and the toughest bellows on the market, ensuring they stand the test of time alongside your truck. For those who care about aesthetics, we’ve included a forward-facing thermostat housing with a coolant return, keeping your IHI turbo running cool and efficient.

Refreshing Your Engine Bay

If your factory coolant tank is starting to show its age, worry not! We’ve got you covered with a factory replacement coolant tank that not only looks great but is made from all-aluminum and includes a low coolant sensor.

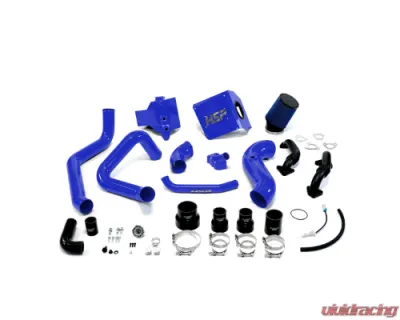

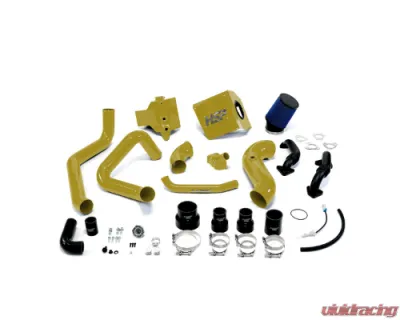

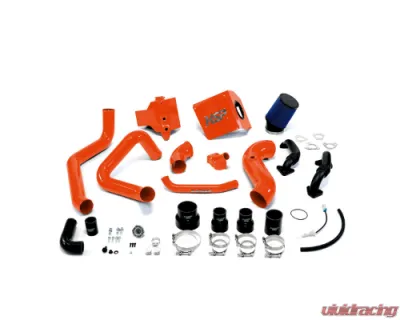

What’s Included in the Kit

• 1x 3 inch x 4 inch Straight Boot
• 4x 3 inch T-bolt Clamps
• 2x 2.25 inch - 3 inch Reducer Boots
• 2x 2.25 inch T-bolt Clamps
• 2x M4 x .7x10mm Bolt
• 3x 10-32 x 3/8 inch Button Head Screw
• 4x 1/8 inch Aluminum Rivet
• 1x 3.5 inch - 4.5 inch Reducer Boot
• 1x 3.5 inch T-Bolt Clamp
• 1x 4.5 inch T-Bolt Clamp
• 1x 4.5 inch Filter
• 3x M6 x 1.0x20mm Button Head Screw
• 1x LB7 Turbo Inlet O-Ring
• 1x Radiator Cap
• 5x 1/2 inch Worm Gear Clamps
• 1x 1 inch Worm Gear Clamp
• 1x 1/2 inch NPT Float Switch
• 1x Low Coolant Sensor
• 1x Thermostat Housing O-Ring
• 3x M6 x 1.0x35mm Flange Bolt
• 6x M6 Fender Washers
• 3x M6 Nylon Lock Nut
• 4x M8x1.25-25mm Socket Cap Bolt
• 4x M6 x 1.0-18mm Socket Cap Bolt
• 1x M14 x 1.5 to 3/8 inch Hose Barb
• 1x M14 x 1.5 Metric Port Plug
• 1x Metric Bond Seal 14mm
• 1x 1.75 inch x 3 inch Straight Boot
• 1x 1.75 inch 90 Degree Boot
• 4x 1 3/4 inch Worm Gear Clamps
• 2x Up-pipe Gaskets (Turbo Side)
• 2x Up-Pipe Gaskets (Manifold Side)
• 16 inch of Trim Seal
• 1.5' of 3/8 inch Heater Hose

Compatibility

This kit is compatible with:

• LB7: 03-04 VIN Code 1

Wondering how to find your VIN code? The engine code can be identified by the 8th character of the VIN number, while the 10th character indicates the year of your truck.
