Holley Premium Mid-Mount Complete Accessory System

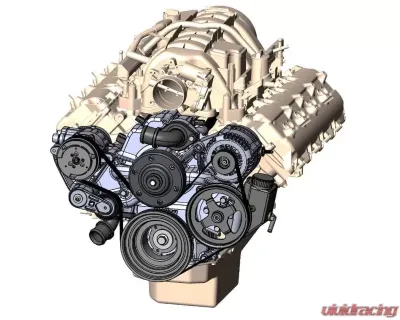

Introducing Holley's innovative mid-mount accessory system, designed to keep all components snugly fitted together, giving you a cleaner look than traditional accessory drives. The standout feature is its unique "bracketless" design (patent pending), allowing accessories to attach directly to the timing cover. This not only enhances the overall aesthetics but also showcases your engine's power without the clutter of visible accessories.

This system is thoughtfully designed with swap-friendly features, including two optional configurations for heater connections. At the core of the system, you'll find the cutting-edge Holley premium alternator, which utilizes 6-phase and square wire technology for optimal performance. The compact and reliable SD7 A/C compressor and Type II power steering pump with a baffled reservoir are seamlessly integrated into the setup. Plus, we’ve included Holley’s tried-and-true cartridge-style water pump, ensuring you have everything you need right out of the box.

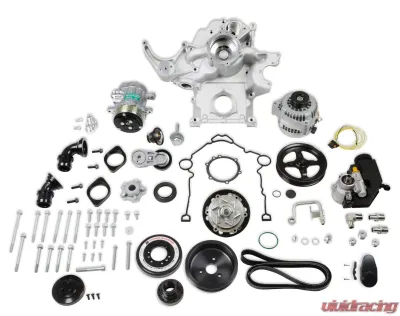

When we say "complete," we truly mean it! The Mid-Mount system comes with all the essential components: the water pump, A/C compressor, alternator, power steering pump with reservoir, and crank damper. You’ll also receive all necessary pulleys and belts, along with heater hose adapters, power steering to -6 AN hardline, and the alternator plug/harness. We prioritized ease of assembly throughout the development of this accessory solution, and our color-coded graphical instructions guide you through each step of the straightforward installation.

This accessory drive system is compatible with the following VVT Engines:

• 2009-Up 5.7L
• 2011-Up 6.4L

Gen III Hemi Engine - Non VVT Compatibility:

• Fits 2003-2008 5.7L
• Fits 2005-2010 6.1L

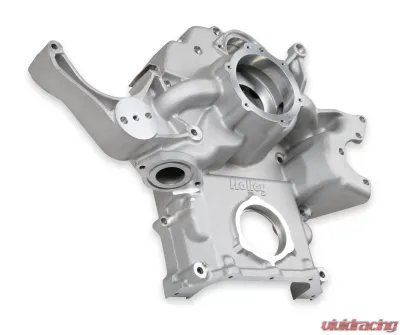

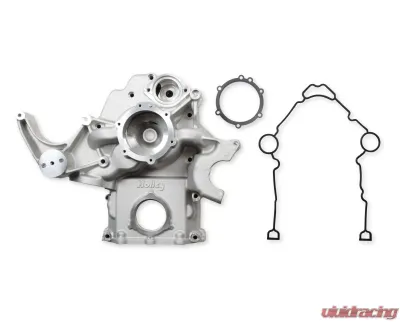

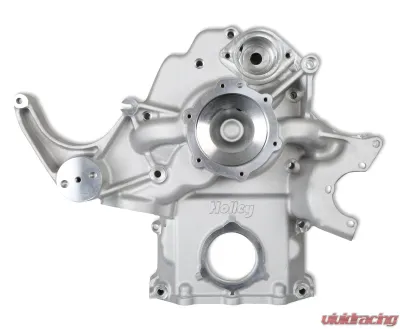

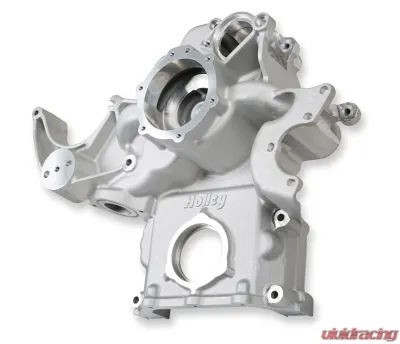

• Bracketless accessory mounting system for effortless assembly – the timing cover is integrated into this bracket/casting.
• Configurable heater hose connection options for flexible hose routing.
• Holley premium 150 Amp alternator provides ample power for all vehicle systems.
• Easy wiring for the alternator that doesn’t require the factory ECU to excite it.
• Alternator is tucked in tight to the engine, eliminating typical frame rail or hood clearance issues.

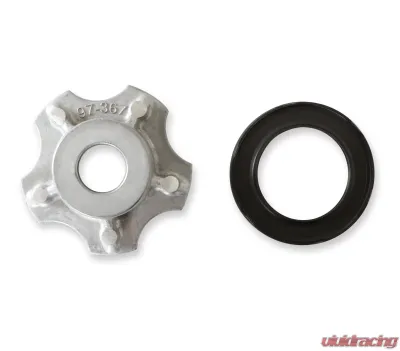

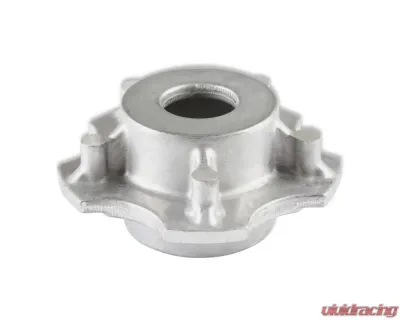

• Holley water pump with cartridge design – compact and easy to service without removing the water pump housing or timing cover.
• SD7 A/C compressor – a small and compact solution.
• Type II power steering pump with a baffled reservoir.
• Power steering pump is designed for proper pressure, preventing damage to older vehicle steering boxes.

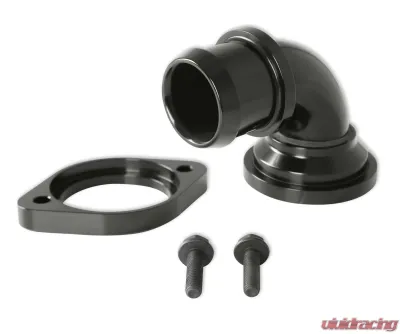

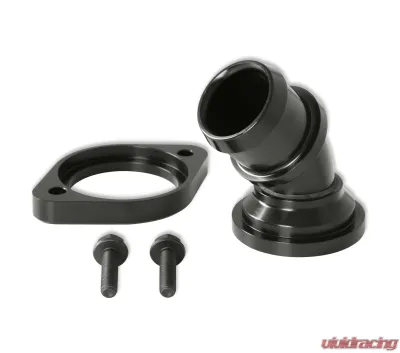

• Swivel water inlet and outlet for customized radiator hose routing.
• OE pulley ratios for optimal accessory performance.
• No adapters or spacers needed for straightforward installation.
• Compatible with common aftermarket and factory throttle bodies and intakes.
• Choose from kits in natural aluminum or black finish – fits naturally aspirated Gen III Hemi engines (5.7L, 6.1L, and 6.4L).
• Includes OE style damper with a cast-in serpentine pulley.
• All accessories included: water pump, A/C compressor, alternator, power steering pump with reservoir, pulleys, and crank damper.
• All plumbing adapters, wiring adapters, gaskets, and seals are included.

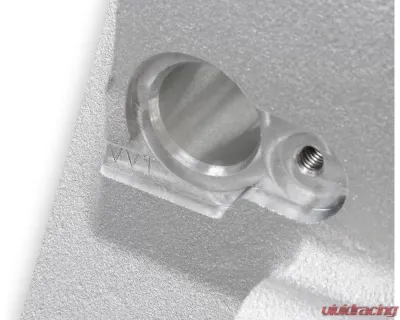

• Available for VVT (Variable Valve Timing – 2009-Up 5.7L and 2011-Up 6.4L) and Non-VVT (2003-2008 5.7L, and 2005-2010 6.1L) engines in natural cast aluminum or black finish.

• A/C Compressor Included: Yes
• A/C Compressor Type: SD7
• Accessory Drive Style: Mid Mount
• Alternator Amperage: 150
• Alternator Included: Yes
• Application: Gen III Hemi
• Belt Included: Yes
• Brand: Holley
• Choose Your Part: Accessory Drive Kits
• Damper Included: Yes
• Damper Style: SFI Certified
• Emission Code: 5
• Engine: Gen III Hemi - Non VVT
• Finish: Cast
• Inlet Size: 1.75
• Material: Cast Aluminum
• Outlet Size: 1.75
• Output: 150 Amps
• Power Steering Hardline Included: Yes
• Power Steering Pulley Included: Yes
• Power Steering Pump Included: Yes
• Power Steering Reservoir Included: Yes
• Product Type: Accessory Drive Kits
• Pulley Style: Serpentine
• Tensioner Included: Yes
• Thermostat Included: Yes
• Warranty: Limited 90 Day
• Water Neck Included: Yes
• Water Pump Included: Yes
• Water Pump Pulley Included: Yes
