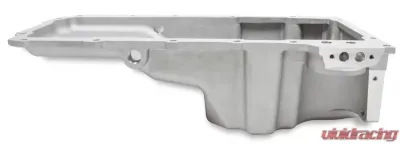

Holley has truly raised the bar with their LS Retrofit oil pans! The innovative 302-3 design boasts even greater sump clearance and comes equipped with two 1/2" NPT oil return bosses. Plus, it’s designed to accommodate a 4.00" stroke crankshaft. Just like its predecessor, the 302-2, the newly crafted 302-3 fits perfectly in 1955-87 GM Muscle Cars and Trucks that require a bit more space at the front of the oil pan. But that’s not all; this new design also seamlessly fits the Ford Fox body OEM K-member and is tailored to clear the Fox Body rack and pinion. It’s a fantastic solution for those looking to make LS conversions easier and more efficient!

• Instructions for Part# 302-3

• Crafted for LS engine retrofits in GM muscle and classic car and truck chassis that need extra oil pan to chassis clearance at the front.

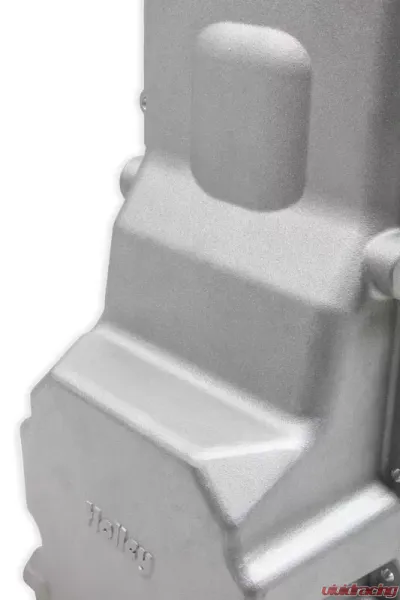

• The sump profile has been thoughtfully revised to ensure additional clearance for both chassis and steering rack.
• Ideal for: 1967-69 Camaro/Firebird, 1968-74 Nova/Apollo/Ventura/Omega, 1982-92 F-body, 1978-87 G-body, and 1964-72 A-body applications. Also fits 1979-2004 Mustang and 1979-1986 Capri Fox bodies.
• Note: The oil pan #302-3 is compatible with a 4.00" stroke crankshaft.

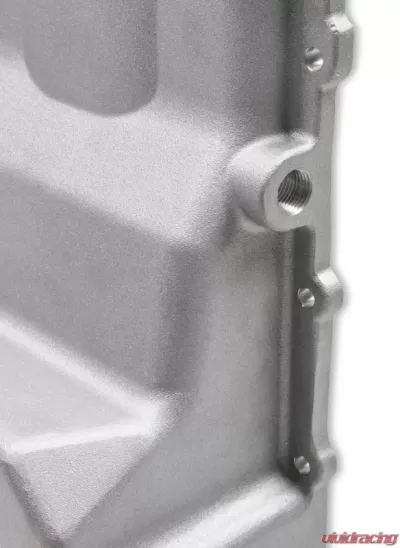

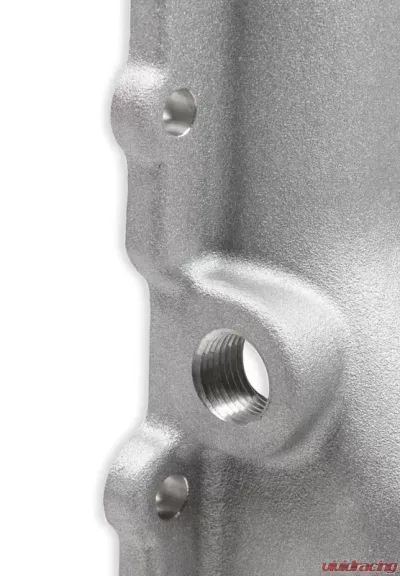

• Includes two 1/2"-14 NPT oil return ports for easy oil return from turbochargers, with one port on each side.

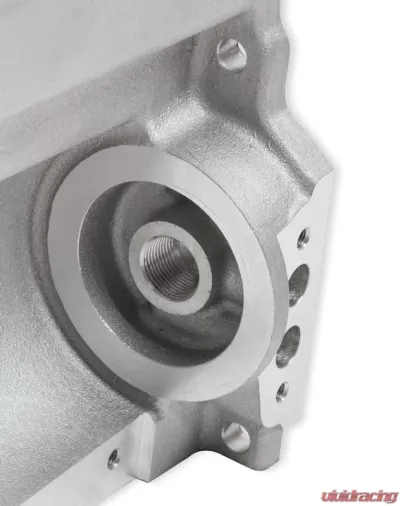

• Offers OEM fitment with features like OEM oil filter mounting, oil cooler port provision, NVH suppression, flange gasket and sealing, and proper structural integrity with OEM bell-housing attachments.

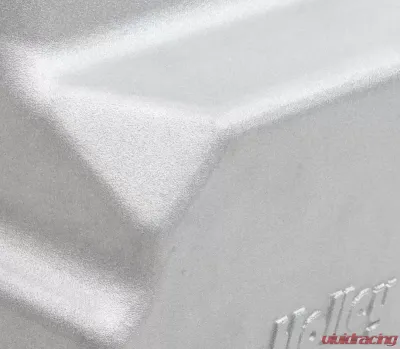

• Maintains a classic high-quality cast aluminum look with a sleek exterior design.
• Ensures maximum clearance for vehicles where the steering linkage is positioned behind the engine cross member.
• The complete kit comes with a sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, and more!

• Application: GM LS Engines
• Emission Code: 5
• Finish: Cast
• Oil Pan Capacity: 5.9 Quarts
• Oil Pan Type: Cast
• Product Type: Oil Pan Kit
• Warranty: Limited 90 Day

• Maximum crankshaft stroke = 4.00"
• Sump Oil Capacity: 5.6 Quarts
• Total Oil Capacity with stock oil filter: 6.1 Quarts
• Recommended Oil Filter: AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent.
• Requires the use of Holley 302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031).
• *You may need to adjust the engine position (up/down or fore/aft) for cross member or steering linkage clearance based on your vehicle, steering setup, and chassis type.
• Attention! The 302-3 is designed for use with a GM "F-body" windage tray, GM P/N 12558253. Some modifications to the windage tray are necessary to clear the pick-up tube. A full-length windage tray can be used if the front quarter is removed. Refer to the instruction sheets for details on modifications and required lengths.
• Attention! Additional Parts Needed: Oil Pan Gasket 6665G or GM® 12612350, high-quality RTV sealer, and Oil Filter - AC Delco® PF48 or equivalent.
