Holley Oil Pan for GM LS Retrofit

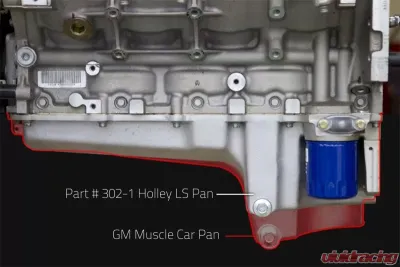

GM's LS engines have become a popular choice for a wide range of vehicles, thanks to their impressive power, durability, and reliability. However, the factory LS oil pans can sometimes be a bit tricky, either not fitting well or hanging too low for the modern hot rod enthusiast. That's where Holley's LS Retrofit Engine Oil Pan comes into play! This innovative design maximizes clearance for your chassis and the ground, while ensuring an OEM fit for durability and effective sealing.
Important Downloads: Features:"Holley's new LS engine swap mount plates made the EcoNova's E-Rod LS3 swap simple and painless, while also improving our weight distribution with ideal engine setback. The LS Retrofit oil pan fit the subframe perfectly and provided excellent oil control under high cornering loads."
- OEM fitment with provisions for oil filter mounting, oil cooler ports, NVH suppression, flange gaskets, and structural rigidity.
- Classic high-quality cast aluminum look with a sleek exterior design.

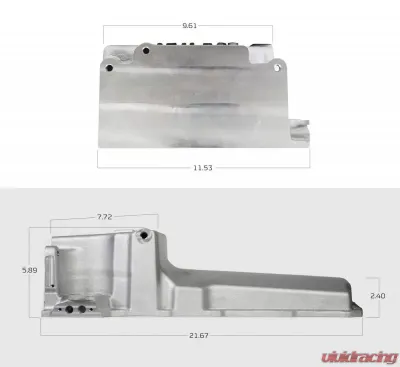

- Maximum clearance to the chassis.
- Constructed from cast and machined aluminum.
- Complete kit includes sump baffle, pickup tube, sump plug, oil filter stud, and oil passage cover.
- Compatible with GM rear-wheel drive applications that originally had a Small Block or Big Block Chevy engine and a traditional rear sump oil pan.
- Maximum crankshaft stroke: 4.25 inches.
- Application: GM LS Engines
- Emission Code: 5
- Finish: Cast
- Oil Pan Capacity: 5.5 Quarts
- Oil Pan Type: Cast
- Product Type: Oil Pan Kit
- Warranty: Limited 90 Day
- Maximum crankshaft stroke: 4.25 inches.
- Sump Oil Capacity: 5.5 Quarts.
- Total Oil Capacity with stock oil filter: 6 Quarts.
- Recommended Oil Filter: AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent.
- Requires Holley 302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031).
- *Engine location may need adjustment (up/down or fore/aft) for cross member or steering linkage clearance, depending on your vehicle, steering configuration, and chassis type.

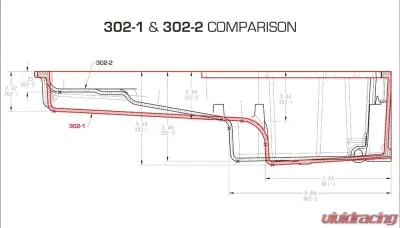

- For G-Body applications, please use part number 302-2 as the 302-1 swap oil pan is not compatible.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
1955-1963, 1966 Chevrolet Bel Air |
Bel Air | 1955-1963, 1966 |
1958-1963, 1966 Chevrolet Biscayne |
Biscayne | 1958-1963, 1966 |
1973-1974, 1987-1991 Chevrolet Blazer |
Blazer | 1973-1974, 1987-1991 |
1960-1963, 1973-1986 Chevrolet C/K 10 |
C/K 10 | 1960-1963, 1973-1986 |
1960-1963, 1973-1987 Chevrolet C/K 20 |
C/K 20 | 1960-1963, 1973-1987 |
1960-1963 Chevrolet C/K 30 |
C/K 30 | 1960-1963 |
1982-1988 Chevrolet C15 |
C15 | 1982-1988 |
1970-1981 Chevrolet Camaro |
Camaro | 1970-1981 |
1957-1963, 1966-1969 Chevrolet Corvette |
Corvette | 1957-1963, 1966-1969 |
1957-1958 Chevrolet Del Ray |
Del Ray | 1957-1958 |
1959-1960 Chevrolet El Camino |
El Camino | 1959-1960 |
1958-1963, 1966 Chevrolet Impala |
Impala | 1958-1963, 1966 |
1975-1986 Chevrolet K5 Blazer |
K5 Blazer | 1975-1986 |
1955-1957 Chevrolet One-Fifty Series |
One-Fifty Series | 1955-1957 |
1960-1963 Chevrolet P20 Series |
P20 Series | 1960-1963 |
1960-1963 Chevrolet P30 Series |
P30 Series | 1960-1963 |
1987 Chevrolet R/V 10 |
R/V 10 | 1987 |
1987-1988 Chevrolet R20 |
R20 | 1987-1988 |
1982-2004 Chevrolet S10 |
S10 | 1982-2004 |
1960-1963, 1987-1988 Chevrolet Suburban |
Suburban | 1960-1963, 1987-1988 |
1957-1960 Chevrolet Truck |
Truck | 1957-1960 |
1957 Chevrolet Two-Ten Series |
Two-Ten Series | 1957 |
1973-1978 GMC C/K 15 |
C/K 15 | 1973-1978 |
1979-1986 GMC C/K 1500 |
C/K 1500 | 1979-1986 |
1973-1978 GMC C/K 25 |
C/K 25 | 1973-1978 |
1979-1986 GMC C/K 2500 |
C/K 2500 | 1979-1986 |
1973-1991 GMC Jimmy |
Jimmy | 1973-1991 |
1987 GMC R1500 |
R1500 | 1987 |
1987 GMC R2500 |
R2500 | 1987 |
1982-1990 GMC S15 |
S15 | 1982-1990 |
1991-2004 GMC Sonoma |
Sonoma | 1991-2004 |
1987 Jeep Wrangler |
Wrangler | 1987 |
1970-1981 Pontiac Firebird |
Firebird | 1970-1981 |
