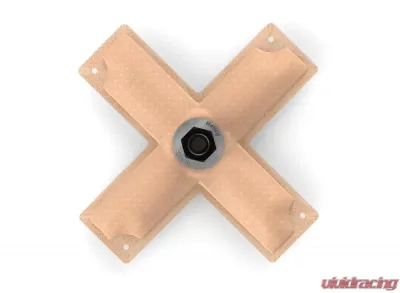

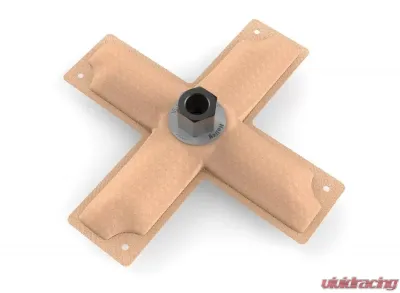

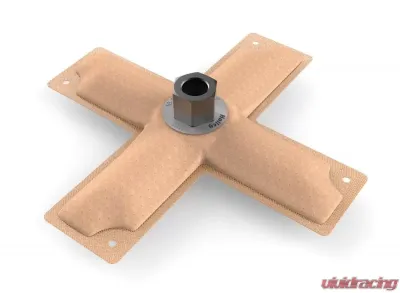

Introducing the remarkable HydraMat™ by Holley, a game-changing design that addresses the challenges faced by traditional fuel pick-ups in both stock fuel tanks and racing fuel cells. When you're cornering hard, accelerating, or navigating inclines with low fuel, traditional systems can leave you high and dry—literally. Fuel can shift away from the pick-up, leading to air entering the system, which can cause poor engine performance or even stalling. But fear not, HydraMat is here to save the day!

The magic of the HydraMat lies in its unique combination of surface tension and fluid wicking. It has this incredible ability to draw fuel from nearly any area that comes into contact with it, storing it in an internal reservoir. When part of the HydraMat is uncovered, the tiny pores in the material seal off, thanks to surface tension, ensuring that fuel remains contained in the reservoir while drawing from other areas where fuel is still available. With its impressive size and coverage area, the HydraMat can pull fuel from virtually any spot in your tank or cell. This means you can say goodbye to the hassle of specialty reservoirs and pick-up pumps, saving you both money and complexity.

HydraMats™ come in a variety of sizes and shapes, designed to fit numerous stock fuel tanks and racing fuel cells.

• Brochure for Part# 16-103
• Instructions for Part# 16-103
• HydraMat Selector Guide for Part# 16-103
• Technical Bulletin for Part# 16-103

• Patent-pending design that tackles the issues associated with traditional fuel pick-ups in stock fuel tanks and racing fuel cells.
• Significantly reduces the chances of air entering the fuel system, which can lead to engine performance issues or stalling.
• Ideal for vehicles that experience fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions.
• Surface tension and fluid wicking allow the HydraMat™ to continue drawing fuel even when part of it is uncovered.
• As an area of the HydraMat™ is exposed, tiny pores in the media seal off due to surface tension, helping to draw fuel from other areas where it's still available.
• The innovative internal reservoir ensures that fuel remains accessible at the pick-up, even in extreme fuel slosh situations.
• Eliminates the need for specialty reservoirs, sumps, and pick-up pumps, simplifying your setup and saving costs.
• Also functions as a 15-micron pre-filter, removing the need for a separate filter before the fuel pump.
• Can be easily folded and compressed for hassle-free installation through various fuel cell openings.
• HydraMats™ are available in different sizes and shapes to suit a wide range of stock fuel tanks and racing fuel cells.
• Compatible with Alcohol, Ethanol, Methanol, and E-85 fuels.
• Works with 2-cycle oil blends up to 20:1.
• Not suitable for most oils (see previous point for exceptions).
• Not compatible with diesel fuels.

• Emission Code: 5
• Fitting Size: 3/8" NPT
• Length: 8 inches
• Micron: 15
• Outlet: Center
• Product Type: HydraMats
• Warranty: Limited 90 Day
• Width: 8 inches

• This product fits flat bottom rectangular-style fuel cells with minimum dimensions of 8" long and 8" wide cross.
• For optimal performance, ensure that the return fuel is discharged near the pick-up of the HydraMat, at least 1 inch above the mat.
• HydraMats with a female NPT thread do not require sealing paste or tape; using these could lead to fuel pump failure.
