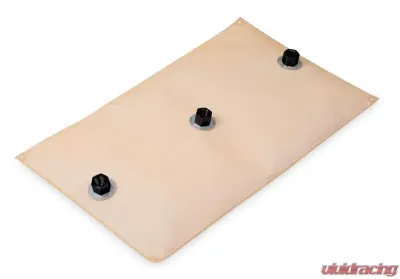

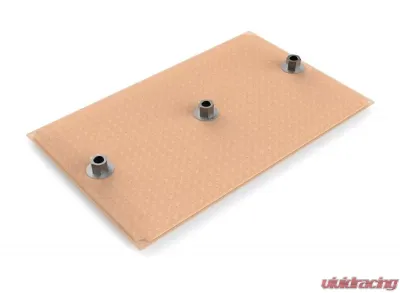

The incredible HydraMat® from Holley features a patent-pending design that tackles the challenges faced by traditional fuel pick-ups in both stock fuel tanks and racing fuel cells. When you're cornering hard, accelerating, or even just stopping, fuel can slosh away from the pick-up, letting air sneak into the system. This can lead to frustrating engine performance issues and even stalling. But with HydraMat, you can say goodbye to those worries!

What makes HydraMat so special? It's all about surface tension and fluid wicking! This innovative technology allows the HydraMat to draw fuel from nearly any area that touches it, storing it in an internal reservoir. When part of the mat is uncovered, the tiny pores in the material seal off through surface tension, ensuring that fuel is kept in the reservoir and drawn from other parts of the mat where fuel is still available. Thanks to its impressive size and coverage, HydraMat can pull fuel from virtually any spot in the tank or cell, eliminating the need for complicated specialty reservoirs and pick-up pumps. This not only saves you money but also simplifies your setup.

HydraMats come in a variety of sizes and shapes to fit different stock fuel tanks and racing fuel cells, making it easy to find the perfect match for your vehicle.

Important Downloads:

• Brochure for Part# 16-109
• Instructions for Part# 16-109
• HydraMat Selector Guide for Part# 16-109
• Technical Bulletin for Part# 16-109

Features:

• Innovative design that addresses the challenges of traditional fuel pick-ups in stock tanks and racing cells.
• Significantly reduces the risk of air entering the fuel system, which can lead to engine performance issues or stalling.
• Ideal for vehicles that face fuel starvation during hard cornering, acceleration, stopping, inclines, or low fuel levels.
• Surface tension and fluid wicking enable the HydraMat to continue drawing fuel even when part of it is uncovered.
• When an area of the HydraMat is exposed, tiny pores seal off, ensuring fuel is drawn from other parts of the mat where it's still available.
• The unique internal reservoir keeps fuel accessible at the pick-up, even during extreme fuel slosh conditions.
• Eliminates the need for specialty reservoirs, sumps, and pick-up pumps, simplifying your setup and saving costs.
• Acts as a 15-micron pre-filter, removing the need for a separate filter before the fuel pump.
• Can be folded and compressed for easy installation through a variety of fuel cell openings.
• Available in various sizes and shapes to fit a wide range of stock fuel tanks and racing fuel cells.
• Compatible with Alcohol, Ethanol, Methanol, and E-85 fuels.
• Works with 2-cycle oil blends up to 20:1.
• Not suitable for most oils (exceptions noted) or diesel fuels.

Specifications:

• Emission Code: 5
• Fitting Size: 1/2" NPT
• Length: 24 inches
• Micron: 15

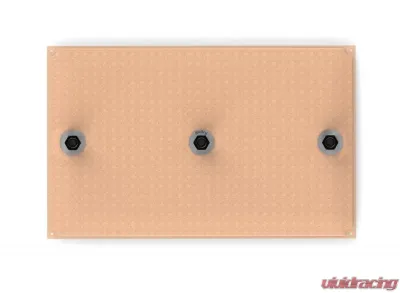

• Outlet: Center/Side/Side
• Product Type: HydraMats
• Warranty: Limited 90 Day
• Width: 15 inches

Notes:

• Fitting locations are designed for universal application use.
• Designed to fit flat-bottom rectangular style fuel cells with minimum dimensions of 24" long and 15" wide.
• For optimal performance, the return fuel should be discharged near the pick-up of the HydraMat, at least 1 inch above the mat.
• HydraMats with a female NPT thread do not require sealing paste or tape; using them could lead to fuel pump failure.
