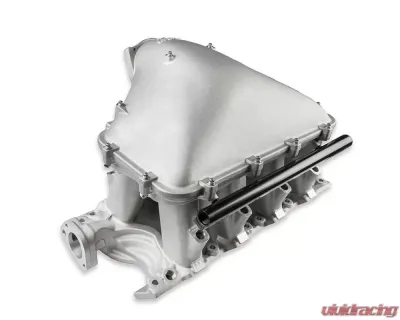

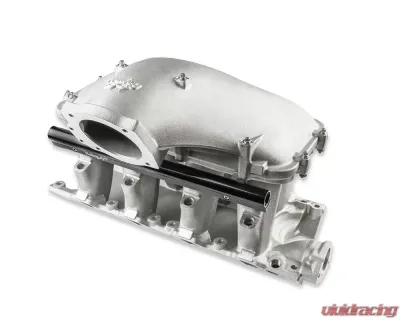

Holley EFI SBF Ford Hi-Ram EFI Manifold with Side Mount Top 8.2" 105mm Throttle Bore - 300-308
Holley EFI SBF Ford Hi-Ram EFI Manifold with Side Mount Top 8.2" 105mm Throttle Bore - 300-308 - Image 4 Holley EFI SBF Ford Hi-Ram EFI Manifold with Side Mount Top 8.2" 105mm Throttle Bore - 300-308 - Image 2 Holley EFI SBF Ford Hi-Ram EFI Manifold with Side Mount Top 8.2" 105mm Throttle Bore - 300-308 - Image 3 Holley EFI SBF Ford Hi-Ram EFI Manifold with Side Mount Top 8.2" 105mm Throttle Bore - 300-308 - Image 4
The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

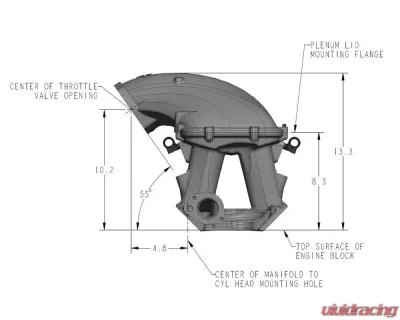

Manifold is designed for a 8.2" deck height.

Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

Cast aluminum construction.

*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

Features:
  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type ? 3/32? Round O-ring Cord
  • Manifold is designed for a 8.2" SBF deck height.
  • The 8.2 SBF manifold is available to work with 95MM throttle bodies
  • Ford 5.0 throttle body fitment
  • Lid has been verified to fit under Cervinis 2.5? cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
  • Designed for side mounted throttle bodies
  • Allows room for designing boosted applications
Specifications:
  • Brand: Holley EFI
  • Construction: Cast
  • Emission Code: 3
  • Engine: Ford Small Block V8
  • Finish: Satin
  • Flange Style: EFI
  • Fuel System Type: EFI
  • Manifold Type: Hi-Ram
  • Port Size: 2.00" x 1.190"
  • Product Type: Intake Manifold
  • RPM Power Band: 1500-7000
  • Throttle Bore: 105mm
  • Warranty: Limited 90 Day
  • UPC: 090127072646
  • Part Number: 300-308
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Holley EFI Banner

Who is Holley EFI?

Holley EFI is a division of Holley that is one of the best aftermarket brands in the automotive industry. Holley EFI  is a company known for producing high-performance parts specifically electronic fuel injection system parts. The company’s history can be traced back to the late 1800s when brothers George and Earl Holley learned how to make pattern casting that enabled them to build one-cylinder engines. Then in 1903, they provided Henry Ford with the carburetor and became the industry leader in fuel system technology. The rest is, as they say, history.

Fuel System Experts

For over a century, Holley EFI has always been at the forefront of designing parts for the fuel delivery system. From electronic fuel injections kits and fuel system accessories, Holley  EFI has it all. Today, Holley EFI is considered one of the top aftermarket brands in the world.

Being Part Of History

Not everyone is aware that Holley provided fuel systems components for the military during WWII, and it is not for automobiles but planes and boats. Since then, the company has become a dominant force when it comes to fuel delivery system components and has been used by many champion racers and enthusiasts.

Choice Of Champions

Since the 1960s, Holley has powered every NASCAR sprint cup car and every winning NHRA Pro Stock Team even today. It is a testament to the kind of products the company produces.

Purchase Holley Products At Vivid Racing

If you are in the market for high-quality fuel delivery system components for your vehicle, then choose the best brand out there, and that is Holley EFI. Not every company can boast 100 years of experience.

To know more about Holley EFI, visit Vivid Racing and check out their list of products that fit your specific requirement.

90 Day Limited Warranty applies to B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids).

Holley Performance Products warrants its Holley Street Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley will charge standard rates for repair labor. For any Holley Street Avenger Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor. Warranty performance will be initiated by returning the alleged defective product to HOLLEY PERFORMANCE PRODUCTS with the original, dated purchase receipt. Purchaser is to call toll free the Holley Factory Service number at 1-866-464-6553 to receive details and shipping instructions.



For full warranty information please Click Here

Installation Instructions

Click to view the Installation Instructions here
