Holley COMP MID-MT Premium Accessory System, LT-Polished

Introducing Holley's Mid-Mount complete accessory system, designed to keep all your accessories snugly tucked in closer than traditional setups. What sets this system apart is its innovative "bracketless" design (Patent Pending), allowing accessories to bolt directly onto the water pump. This means a cleaner, more integrated look that showcases your engine's power rather than cluttering it with extra components.

One of the standout features of this system is its thoughtful design for tight spaces. Bottom heater outlets provide the necessary clearance for those tricky applications. And let’s not forget about the alternator—Holley has crafted a premium model that utilizes 6-phase technology, inspired by the C7 Corvette. The water pump mirrors this efficient design, ensuring everything works seamlessly together.

You'll also find a compact and reliable SD7 A/C compressor, along with a Type II power steering pump featuring a baffled reservoir, all integrated into this system.

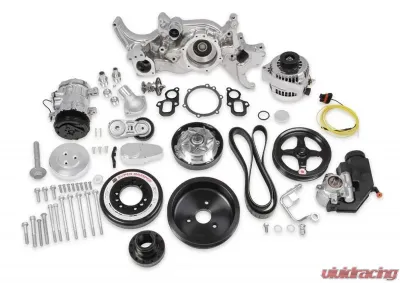

When we say "complete," we truly mean it. This Mid-Mount system comes with everything you need right out of the box. Included are the water pump, A/C compressor, alternator, power steering pump with reservoir, and an SFI certified damper paired with a hard anodized billet crank pulley. All necessary pulleys and belts are provided, along with heater hose adapters, a power steering to -6 AN hardline, and the alternator plug/harness. We prioritized easy assembly during the development of this accessory solution, and our color graphical instructions guide you through each step for a hassle-free installation.

This Premium Mid-Mount system doesn’t just perform well; it looks great too, thanks to dress-up pulley covers and an SFI certified damper. The included billet 6061-T6 aluminum hard anodized crank pulley means you're all set for the racetrack or ready for anything on the street.

Important Downloads:

• Instructions for Part# 20-200P

Features:

• Bracketless accessory mounting with ultra-easy assembly
• Bottom outlet heater hose options for improved clearance in swap applications
• LT1 style premium alternator
• LT1 style water pump design
• Compact SD7 A/C compressor
• Type II power steering pump with baffled reservoir
• P/S adapter hardline to AN -6 adapter included
• Shortened top outlet nipple for better radiator hose routing
• OE pulley ratios for optimal accessory performance
• Compatible with all LT engines, excluding those with dry sump and/or supercharger
• Billet tensioner cover
• Billet alternator and compressor pulley covers
• SFI certified damper with hard anodized billet crank pulley
• Polished finish for a sleek look

Specifications:

• Accessory Drive Style: Mid Mount
• Application: GM Gen V LT
• Emission Code: 5
• Engine: GM Gen V LT1
• Finish: Polished
• Inlet Size: 35.4mm/1.4"
• Material: Aluminum
• Product Type: Accessory Drive Kits

Notes:

• Steam tube input port is 1/8" NPT.
