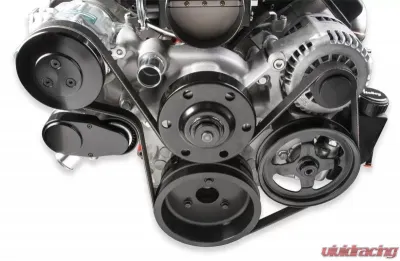

Introducing Holley's Mid-Mount Complete Accessory System for LT-Natural Engines – a thoughtfully designed solution that keeps all your accessories tucked in tighter than typical accessory drives. At the core of this system is an innovative "bracketless" design (Patent Pending), allowing accessories to bolt directly onto the water pump, creating a sleek and integrated look. This design not only provides excellent visibility of your engine but also showcases your horsepower without the distraction of bulky accessories.

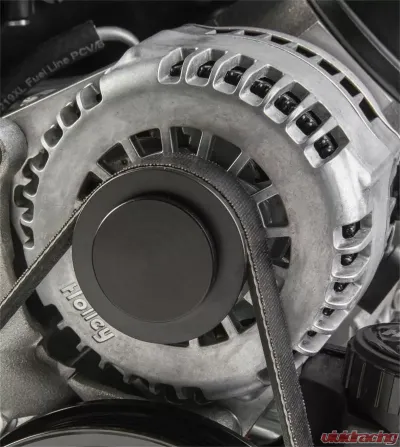

When it comes to swap-friendly features, you’ll appreciate the bottom heater outlets that offer extra clearance for those snug applications. The alternator, crafted by Holley, is equally impressive. This premium alternator employs advanced 6-phase technology, similar to what you’d find in the C7 Corvette, ensuring reliability and efficiency. The water pump shares this efficient design, further enhancing the system's performance.

But that’s not all! The compact and dependable SD7 A/C compressor, along with a Type II power steering pump featuring a baffled reservoir, are seamlessly integrated into this system.

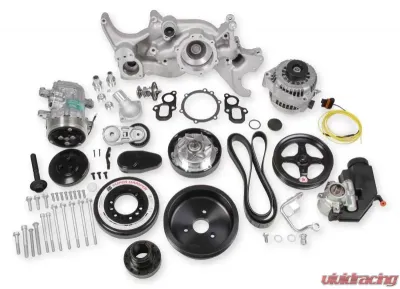

When we say "complete," we truly mean it. This Mid-Mount system comes with every accessory you could need: the water pump, A/C compressor, alternator, power steering pump with reservoir, and an SFI certified damper paired with a hard anodized billet crank pulley. All necessary pulleys and belts are included, along with heater hose adapters, a power steering to -6 AN hardline, and the alternator plug/harness. We prioritized easy assembly throughout the development of this accessory solution, and you’ll find color-coded graphical instructions guiding you through each step of the straightforward installation process.

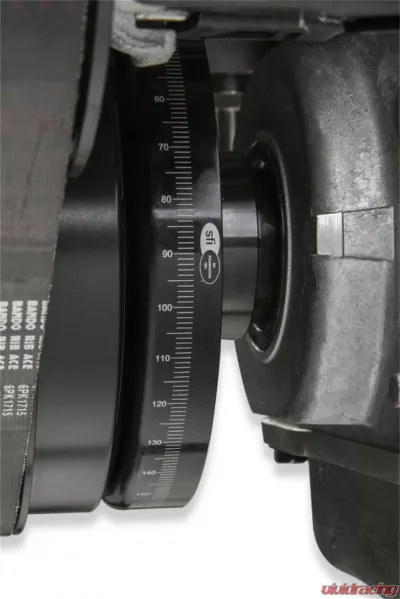

This Premium Mid-Mount system also features stylish pulley covers and an SFI certified damper. The damper is complemented by a billet 6061-T6 aluminum hard anodized crank pulley, making this system ready for the racetrack or your daily drives.

Important Downloads:

• Instructions for Part# 20-200

Features:

• Bracketless accessory mounting for ultra-easy assembly
• Bottom outlet heater hose options for improved clearance in swap applications
• LT1 style premium alternator
• LT1 style water pump design
• Compact SD7 A/C compressor
• Type II power steering pump with baffled reservoir
• P/S adapter hardline to AN -6 adapter included
• Shortened top outlet nipple for enhanced radiator hose routing
• OE pulley ratios for optimal accessory performance
• Compatible with all LT engines, excluding those with dry sump and/or supercharger

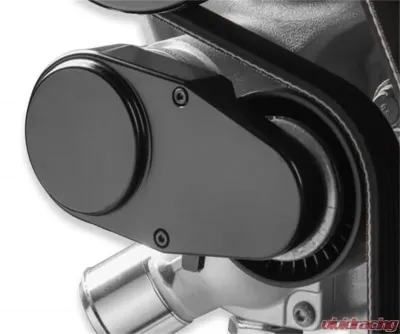

• Billet tensioner cover
• Billet covers for alternator and compressor pulleys
• SFI certified damper with hard anodized billet crank pulley

Specifications:

• Accessory Drive Style: Mid Mount
• Application: GM Gen V LT
• Emission Code: 5
• Engine: GM Gen V LT1
• Finish: Cast
• Inlet Size: 35.4mm/1.4"
• Material: Aluminum
• Product Type: Accessory Drive Kits

Notes:

• Steam tube input port is 1/8" NPT.
