Holley 2-Piece LS Valve Covers with Chevrolet Logo

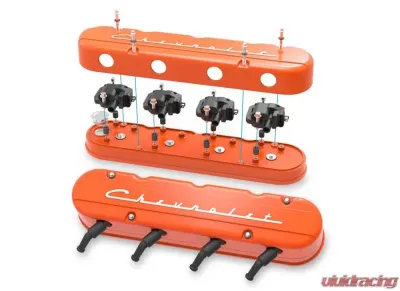

If you're looking to give your LS engine a fresh new look, Holley's 2-Piece LS valve covers are just the ticket! These stylish covers let you update your engine's appearance without the need for complicated adapters or the stress of relocating coils. Designed with a modular approach, these valve covers maintain the OE height and come with an internally baffled base that integrates coil mounts for popular Gen I and Gen V LS coil bodies. Plus, the sleek "Chevrolet" branded overcover neatly conceals the coils and any messy wiring, allowing you to enjoy the performance of coil-on-cover ignition setups without the robotic look.

Each coil cover showcases a bold vintage "Chevrolet" logo, perfectly complementing other GM licensed Holley products. With built-in provisions for spark plug boots and coil wiring harnesses, there’s no need for extensions or custom wiring. It’s all about simplicity!

When you purchase a set of these 2-Piece LS valve covers, you'll receive a low-profile billet oil fill cap, all the necessary hardware, spacers for both versions of LS coil bodies, as well as 12-point dress-up hardware and rubber grommets for the coil covers. You can choose from five unique finishes: natural cast, polished, satin black, factory orange, and gloss red (the black, factory orange, and gloss red options feature machined fins).

Important Downloads:

• Instructions for Part #241-178

Features:

• Cast aluminum 2-Piece LS valve covers designed to accommodate both Gen I and Gen V style LS coil bodies.
• Maintain the performance of factory coil-on-cover ignition without the unattractive styling.
• Coil cover boasts vintage styling with a prominent GM Licensed "Chevrolet" script logo and built-in wiring provisions.
• Base fits LS1, LS2, LS3, LS6, and LS7 engines, with clearance for .750" lift cam and stock-style rocker arms.
• Features an internally baffled ventilation system for optimal performance.
• No need for coil relocation, wire harness extensions, or custom spark plug wires.
• Includes a low-profile billet oil fill cap.
• All necessary coil mounting and dress-up hardware are included.

Specifications:

• Application: GM LS Engines
• Baffle Included: Yes
• Coil Mounting Studs: Yes, on Baseplate
• Emission Code: 4
• Finish: Factory Orange
• Gasket Included: No
• Grommet(s) Included: No
• Height: 3.75"
• Logo: Chevrolet Script
• Material: Cast Aluminum
• Mounting Hardware Included: Yes
• Oil Fill: Yes
• Product Type: Valve Cover
• Style: 2-Piece LS
• Valvetrain Clearance: .750" lift cam with stock-style rocker arms
• Warranty: Limited 90 Day

Notes:

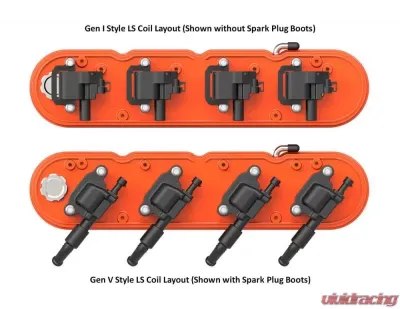

• These valve covers come with integrated coil mounts specifically designed for Gen I and Gen V style LS coil bodies (OE and most aftermarket). For more details, refer to the part numbers listed below:
• Gen I Style LS Coil Body P/N's:
• GM: 12558948
• MSD: 8262, 82628 (set of 8) / 82623, 826238 (set of 8)
• AC Delco: D580
• Gen V Style LS Coil Body P/N's:
• GM: 12570616
• Holley: 410004
• Accel: 140043, 140043-8 (Set of 8) / 140043K, 140043K-8 (Set of 8)
• MSD: 8265, 82658 (set of 8) / 82653, 826583 (set of 8)
• AC Delco: D510C
• Coils Not Included
• While you can reuse OE LS valve cover mounting hardware and gaskets, it's wise to inspect them beforehand, as replacements may be necessary over time.
