Holley 2-Piece Valve Cover for GM LS Engines with Chevrolet Logo

Looking to give your LS engine a fresh new look? Holley's 2-Piece LS valve covers are the perfect solution! These covers allow you to upgrade your engine's appearance without the headache of complicated adapter systems or relocating coils. Designed with a modular approach, these LS valve covers maintain OE height and come with an internally baffled base. Plus, they feature integrated coil mounts that fit popular Gen I and Gen V LS coil bodies. The stylish "Chevrolet" branded overcover elegantly conceals the coils and messy wiring harness, letting you enjoy the benefits of coil-on-cover ignition setups without that robotic feel.

Each modular coil cover showcases a vintage "Chevrolet" logo that pairs beautifully with various GM licensed Holley products. The design also includes provisions for spark plug boots and coil wiring harnesses, eliminating the need for extensions or custom wiring!

When you choose the 2-Piece LS valve cover set, you’ll receive a low-profile billet oil fill cap, all the necessary hardware and spacers for mounting both versions of LS coil bodies, and 12-point dress-up hardware along with rubber grommets for the coil covers. You can pick from five unique finishes: natural cast, polished, satin black, factory orange, and gloss red (with black, factory orange, and gloss red sets featuring machined fins).

Important Downloads:

• Instructions for Part #241-175

Features:

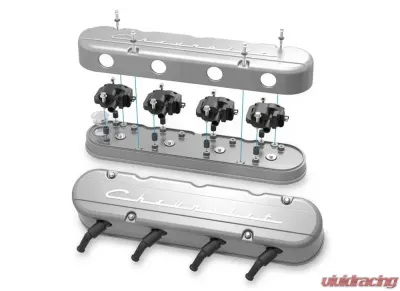

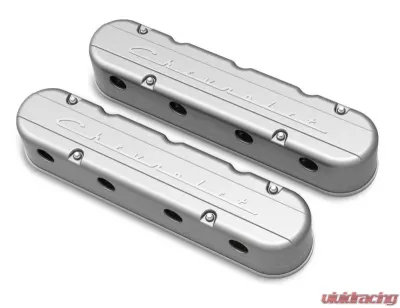

• Cast aluminum 2-Piece LS valve covers designed to fit and conceal both Gen I and Gen V style LS coil bodies.
• Maintain the performance of factory coil-on-cover ignition while avoiding unsightly styling.
• Coil cover features vintage styling with a prominent GM Licensed "Chevrolet" script logo and cast-in wiring provisions.
• Base fits LS1, LS2, LS3, LS6, and LS7 engines, accommodating a .750" lift cam with stock-style rocker arms.
• Internally baffled ventilation system included in the base.
• No need for coil relocation, wire harness extensions, or custom spark plug wires.
• Comes with a low-profile billet oil fill cap.
• Includes all necessary coil mounting and dress-up hardware.

Specifications:

• Application: GM LS Engines
• Baffle Included: Yes
• Coil Mounting Studs: Yes, on Baseplate
• Emission Code: 4
• Finish: Natural
• Gasket Included: No
• Grommet(s) Included: No
• Height: 3.75"
• Logo: Chevrolet Script
• Material: Cast Aluminum
• Mounting Hardware Included: Yes
• Oil Fill: Yes
• Product Type: Valve Cover
• Style: 2-Piece LS
• Valvetrain Clearance: .750" lift cam with stock-style rocker arms
• Warranty: Limited 90 Day

Notes:

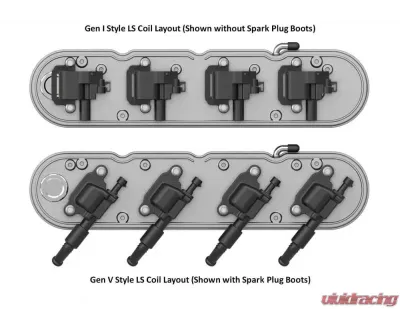

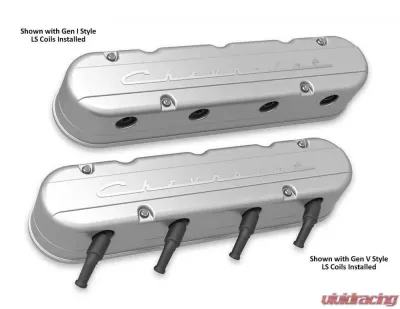

• These valve covers come with integrated coil mounts specifically designed for Gen I and Gen V style LS coil bodies (both OE and most aftermarket). For more information and part numbers for each applicable LS coil body, see below:
• Gen I Style LS Coil Body P/N's:
• GM: 12558948
• MSD: 8262, 82628 (set of 8) / 82623, 826238 (set of 8)
• AC Delco: D580
• Gen V Style LS Coil Body P/N's:
• GM: 12570616
• Holley: 410004
• Accel: 140043, 140043-8 (Set of 8) / 140043K, 140043K-8 (Set of 8)
• MSD: 8265, 82658 (set of 8) / 82653, 826583 (set of 8)
• AC Delco: D510C
• Coils Not Included.
• OE LS valve cover mounting hardware and OE LS valve cover gaskets can be reused, but you may need replacements over time. Be sure to inspect all components before installation to determine if any replacements are necessary.
