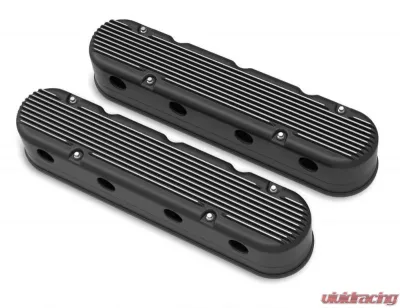

Holley 2-Piece Cast Aluminum Valve Covers - Satin Black Finish

Looking to refresh the appearance of your LS engine? Holley's new 2-Piece LS valve covers are an excellent choice! These covers provide a stylish update without the fuss of complicated adapter systems or the need to relocate your coils. Designed with a modular approach, these valve covers maintain OE height and feature an internally baffled base. They come equipped with integrated coil mounts that fit popular Gen I and Gen V style LS coil bodies. Plus, the vintage-style finned overcover elegantly conceals those unsightly LS coils and messy wiring, allowing you to enjoy the benefits of a coil-on-cover ignition setup without compromising on style.

Each coil cover showcases a simplified version of our Vintage Series fins, blending seamlessly with other finned Holley accessories like our LS valley covers and 14" round air cleaners. You'll also appreciate the thoughtful design, which includes cast-in provisions for spark plug boots and coil wiring, eliminating the need for extensions or custom wiring.

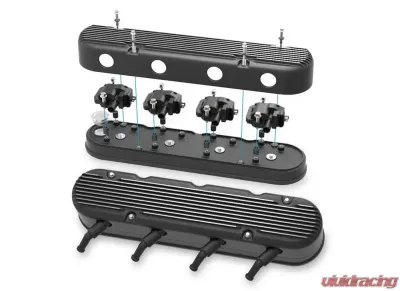

When you purchase the 2-Piece LS valve cover set, you’ll receive a low-profile billet oil fill cap, along with all the necessary hardware and spacers to mount both versions of LS coil bodies. We've included 12-point dress-up hardware and rubber grommets for the coil covers, ensuring you have everything you need for a smooth installation. Choose from five unique finishes: natural cast, polished, satin black, factory orange, and gloss red (with black, factory orange, and gloss red options featuring machined fins).

Important Downloads:

• Instructions for Part #241-182

Features:

• Cast aluminum 2-Piece LS valve covers designed to accommodate both Gen I and Gen V style LS coil bodies.
• Maintain the performance of factory coil-on-cover ignition while enhancing aesthetics.
• Compatible with LS1, LS2, LS3, LS6, and LS7 engines.
• Base includes an internally baffled ventilation system.
• Provides clearance for .750" lift cam with stock-style rocker arms.
• Coil cover features Holley vintage-style fins and built-in wiring provisions.
• No need for coil relocation, wire harness extensions, or custom spark plug wires.
• Includes a low-profile billet oil fill cap.
• Comes with all necessary coil mounting and dress-up hardware.

Specifications:

• Application: GM LS Engines
• Baffle Included: Yes
• Coil Mounting Studs: Yes, on Baseplate
• Emission Code: 4
• Features: Finned
• Finish: Satin Black Machined
• Gasket Included: No
• Grommet(s) Included: No

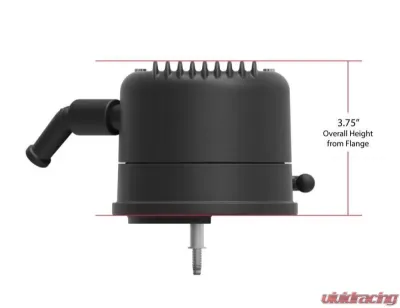

• Height: 3.75"
• Logo: None
• Material: Cast Aluminum
• Mounting Hardware Included: Yes
• Oil Fill: Yes
• Product Type: Valve Cover
• Style: 2-Piece LS
• Valvetrain Clearance: .750" lift cam with stock-style rocker arms
• Warranty: Limited 90 Day

Notes:

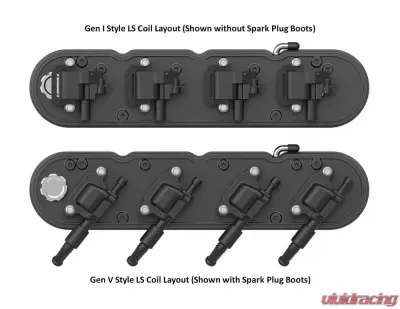

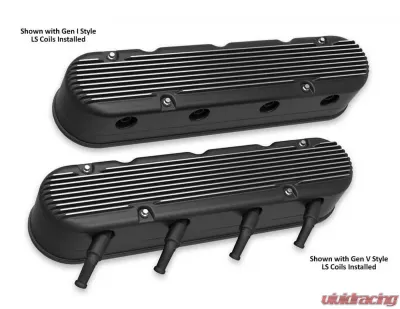

• These valve covers come with integrated coil mounts specifically designed for Gen I and Gen V style LS coil bodies (both OE and most aftermarket). Check below for part numbers for each compatible LS coil body:
• Gen I Style LS Coil Body P/N's:
• GM: 12558948
• MSD: 8262, 82628 (set of 8) / 82623, 826238 (set of 8)
• AC Delco: D580
• Gen V Style LS Coil Body P/N's:
• GM: 12570616
• Holley: 410004
• Accel: 140043, 140043-8 (Set of 8) / 140043K, 140043K-8 (Set of 8)
• MSD: 8265, 82658 (set of 8) / 82653, 826583 (set of 8)
• AC Delco: D510C
• Coils Not Included
• You can reuse OE LS valve cover mounting hardware and gaskets, but keep an eye on them for wear over time. Make sure to inspect all components before installation to see if replacements are needed.
